Active Tamper-Proof System
IOGEAR secure KVM switch hardware security is comprised of tamper-evident seals, active chassis intrusion detection, and tamper-proof hardware. Compliance with NIAP Protection Profile v4.0 certifies that non-approved USB peripherals will be rejected and cannot be connected to the secure KVM switch, providing high-level security, protection and data safekeeping.
With the combination of physical and software security, secure KVM switches offer secure air-gap network isolation to prevent internal and external access to individual system with authorization while consolidating multiple workstations with varying security classification levels.
Compatible with IOGEAR Remote Port Selector
Securely select and switch between systems with optional external remote port selector that provides full operator control for an optimized user experience.
Data Channel Isolation and Unidirectional Data Flow
IOGEAR Secure KVM switches control and isolate data flow between the console device and the connected computers preventing any data transfer between the connected computers. Data channel isolation prevents data leakage between connected computers via isolated channel per port and unidirectional data flow ensures unidirectional data flow between the console devices and the selected computer. The secure KVM switch supports analog audio via speakers only.
Multiple Video Interface Support
Connect multiple to multiple port configurations with IOGEAR Universal KVM cables* enabling IT administrators options for preventing compatibility issues with diverse secure computer ecosystem. The universal KVM cables connect multiple video sources to a IOGEAR KVM even if they are using different display standards. This flexibility enables IT managers to deploy the same KVM switch across their network without the need for unreliable active cables or costly external video converters or additional docking stations. The universal cables options include HDMI® to DisplayPort, DVI to DisplayPort and USB Type-C™ to DisplayPort.
Government, Military and Commercial Applications
The IOGEAR secure KVM switches physically isolate sensitive networks and network assets from any exposure to the public internet and only accessible with authorized permissions. Additionally, these secure KVM switches filter or block exposed USB ports on servers and desktop computers to ensure the data integrity is never compromised. Designed originally for military and federal intelligence agencies, secure KVM switches are able to serve many organizations including:
- NIAP-Certified PP4.0

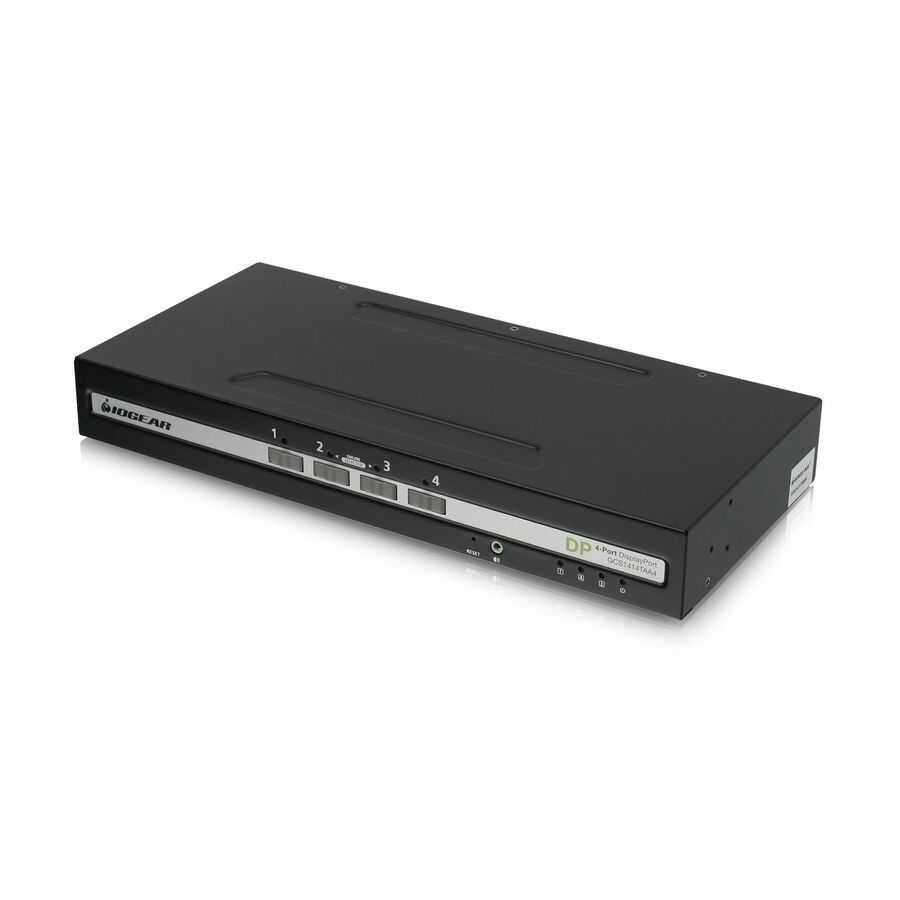

- 4-Port Single View DisplayPort Secure KVM Switch
- Superior 4K UHD Video Resolution
- PP4.0 Certified Remote Port Selector Support
| Brand | |
|---|---|
| Brand | IOGEAR |
| Power & Battery | |
|---|---|
| Input Voltage Range | 100-240V |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 6 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPorts | 5 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 x 2160 |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 1 |
| General Features | |
|---|---|
| Frequency | 60 Hz |
| Manufacturer | IOGEAR, Inc |
| Number of Computers Supported | 4 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
