Maximize Productivity with Seamless 4K Control
The IOGEAR GCS1904H is a high-performance 4-Port KVMP™ switch designed to streamline multi-computer workflows without sacrificing visual quality. Effortlessly control four PCs using a single 4K HDMI monitor, keyboard, and mouse, while sharing two USB 2.0 peripherals across all connected systems.
Space-Efficient Desktop Setup
This high-performance KVM switch grants you seamless control over four HDMI systems using a single monitor, keyboard, and mouse. By consolidating your setup and sharing two USB 2.0 peripherals, it eliminates cable chaos to create a truly refined, efficient workspace.
Convenient Switching Methods

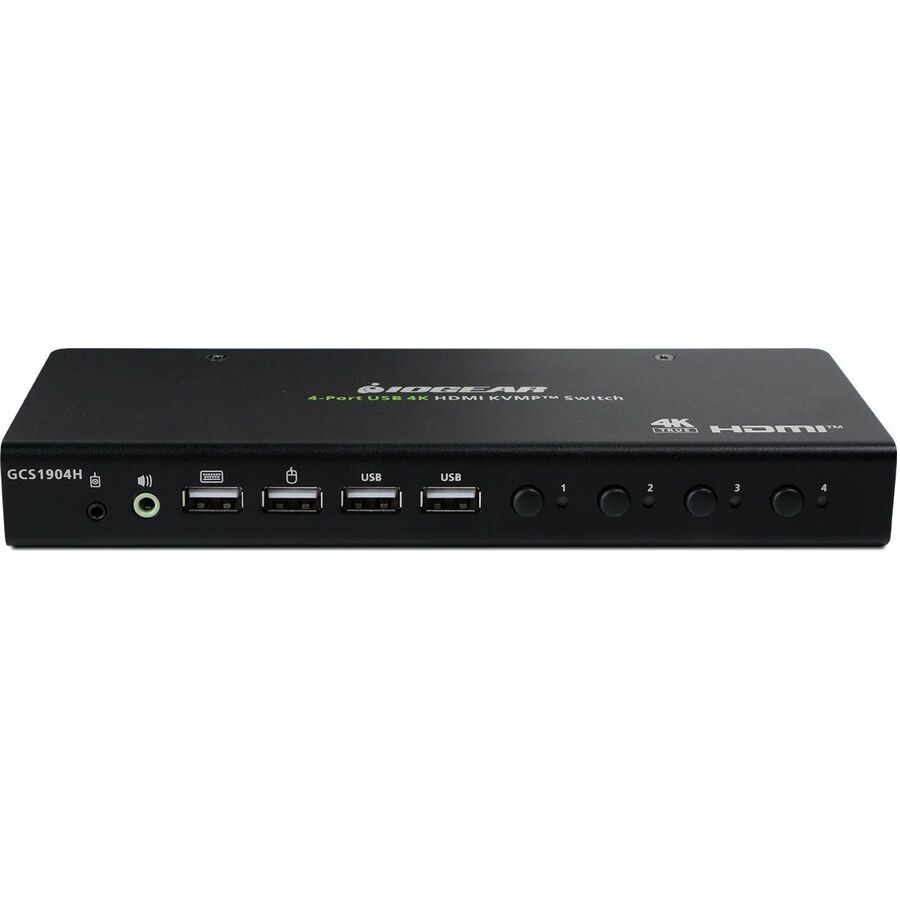

Four ways for GCS1904H Port switching. Pushbuttons on the front panel, Remote Port Selector, Hotkeys, and the Mouse wheel button - pick the option that best fits your needs.
1. Push Buttons
2. Remote Switch
3. Keyboard Hot Key
4. Mouse wheel
4K Work Experience
The KVM switch is designed to deliver exceptional visual performance, supporting 1080p@60, 4K@60, and up to 5120�1440@60.
Built-in USB 2.0 Peripheral Sharing
Control/share two USB 2.0 peripherals between two computers at up to 480 Mbps data transfer speed with plug-n-play support. Attach even more peripherals by adding a USB 2.0 Hub. (Sold Separately)
- Control up to 4 PCs from a single monitor, keyboard, mouse, speaker and up to 2 USB peripherals
- Superior video quality - up to 4096x2160 @60 Hz or 5120x1440 @60Hz (HDMI 2.0)
- Exclusive IOGEAR DynaSync technology ensures optimal resolution and consistent window layout when port switching for smoother workflows
- Computer selection via remote port selector, hotkeys, and USB mouse
- All HDMI / USB cables and power adapter included - for plug-and-play setup and hassle-free installation, no extra purchases needed
- Power-on detection automatically switches to the next active computer
- Supports most gaming / multimedia keyboards and multifunction mice with emulation or bypass
- Auto-scan function allows continuous monitoring of connected systems
- Plug and play - no software installation or configuration required
- Multiplatform support - Windows, Mac, and Linux
| Brand | |
|---|---|
| Brand | IOGEAR |
| GPU / Graphics | |
|---|---|
| Graphic Mode | 4K |
| Power & Battery | |
|---|---|
| Input Voltage Range | 5V DC |
| Input Current | 340 mA |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 8 |
| USB Standard | USB 2.0 |
| USB 2.0 | Yes |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Ports | 5 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPorts | 5 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 5120 x 1440 |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 60 MB/s |
| Manufacturer | IOGEAR, Inc |
| Number of Computers Supported | 4 |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
