Protect Multiple Desktops with True Universal (DP/HDMI) Secure KVM Technology
IOGEAR's True Universal Secure KVM (Keyboard, Video, Mouse) switches, with NIAP Protection Profile for Peripheral Sharing Device (PP4.0) certification, offer top-tier security for managing multiple computers, including dual-head setups. These KVMs prevent data leakage and unauthorized access, crucial for sensitive environments. Beyond broad operating system compatibility, they feature a specialized port design that supports both HDMI and DisplayPort inputs, providing unmatched flexibility for connecting diverse systems to two monitors. PP4.0 compliance ensures rigorous security features: isolated data paths, unidirectional data flow, anti-tampering, and strict peripheral filtering (e.g., only keyboards and mice, with CAC reader support). This robust security, combined with dual-screen universal connectivity via adaptable video ports, provides a highly protected and efficient solution for diverse, classified computing environments.
NIAP Certified, Common Criteria Compliance & TAA Compliant
IOGEAR secure KVM switches comply with NIAP PP v4.0 security certification meeting the latest security requirements from the U.S. government. The secure KVM also meets with the Common Criterial Compliance as part of the international Common Criteria Recognition Arrangement. The unit also meets with all TAA-compliant guidelines.
Data Channel Isolation and Unidirectional Data Flow
IOGEAR Secure KVM switches control and isolate data flow between the console device and the connected computers preventing any data transfer between the connected computers. Data channel isolation prevents data leakage between connected computers via isolated channel per port and unidirectional data flow ensures unidirectional data flow between the console devices and the selected computer. The secure KVM switch supports analog audio via speakers only.
Active Tamper-Proof System
IOGEAR secure KVM switch hardware security is comprised of tamper-evident seals, active chassis intrusion detection, and tamper-proof hardware. Compliance with NIAP Protection Profile v4.0 certifies that non-approved USB peripherals will be rejected and cannot be connected to the secure KVM switch, providing high-level security, protection and data safekeeping.
With the combination of physical and software security, secure KVM switches offer secure isolation to prevent internal and external access to individual system with authorization while consolidating multiple workstations with varying security classification levels.
True Universal HDMI and DisplayPort functionality
A universal video connector provides seamless display compatibility by integrating both HDMI and DisplayPort signal capabilities within a single, innovative port design. This eliminates the need for separate dedicated ports or multiple adapters when connecting to modern displays. By offering a unified solution for these two prevalent video standards, it greatly simplifies setup, reduces cable complexity, and ensures broad compatibility for high-definition and multi-monitor setups.
Superior Ultra-High Video Quality
The secure KVM switch supports a dual view display and exceptional 4K Ultra-HD resolutions up to 5120�2880 @60Hz.

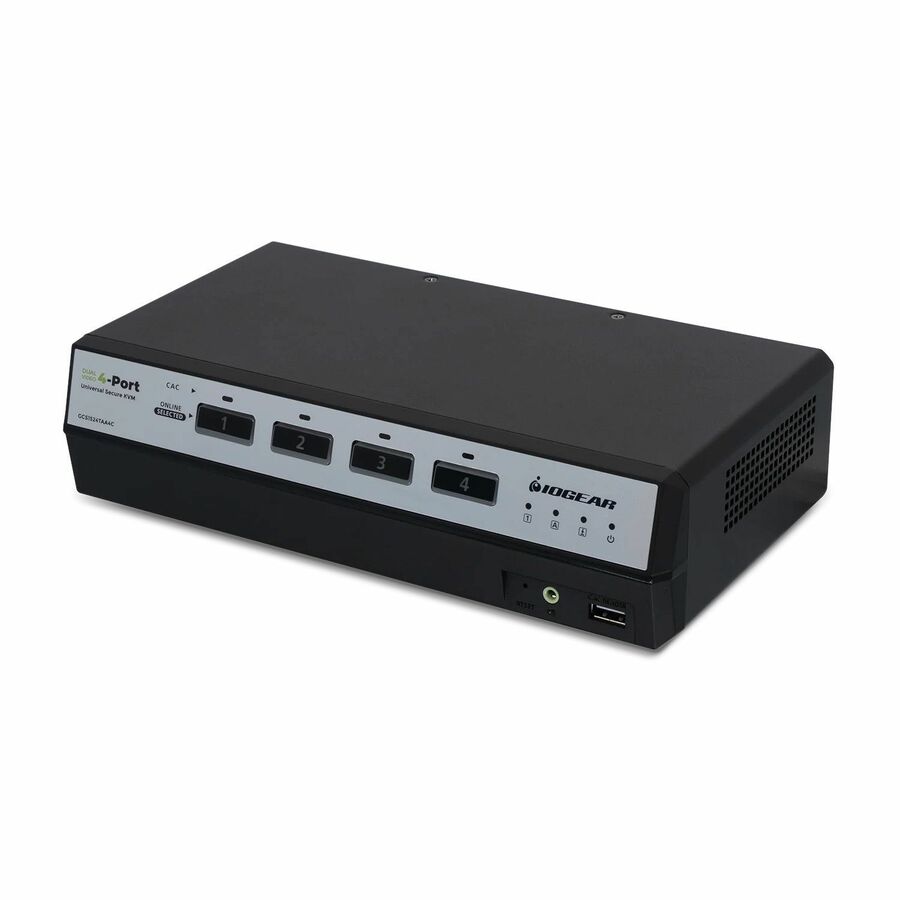

- 4-Port USB DisplayPort/HDMI Dual Display Universal Secure KVM Switch with CAC Support
- DisplayPort/HDMI combo connectors - Connect DisplayPort or HDMI cables without the need for adapters
- Superior ultra-high video resolution to 5K UHD 5120 � 2880@ 60hz
- Configurable Port LED color and Port Name Labels
- NIAP-Certified PP4.0 - Validated to Protection Profile for Peripheral Sharing Device v4.0
- Port Selection via Push-Button and Remote Port Selector for Enhanced Security - Keyboard restrictions - OSD & hotkey methods are not allowed
- Isolated Channel per Port - Unidirectional data flow restricts data leakage between connected computers
- Tamper-Evident Seals - Visually detect attempts to gain access to switch's internal components
- Tamper-Proof Hardware - Integrated circuits are soldered directly onto the circuit board to hinder component sabotage
- Active Chassis Intrusion Detection - Compromising the unit's cover renders the switch inoperable
| Brand | |
|---|---|
| Brand | IOGEAR |
| GPU / Graphics | |
|---|---|
| Graphic Mode | 5K |
| Power & Battery | |
|---|---|
| Input Voltage Range | 100-240 V |
| Input Current | 1 A |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 11 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Ports | 10 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPorts | 10 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 5120 x 2880 |
| General Features | |
|---|---|
| Frequency | 60 Hz |
| Manufacturer | IOGEAR, Inc |
| Device Type | Secure KVM |
| Number of Computers Supported | 4 |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| TAA Compliant | Yes |
