8K Ultra High Definition (UHD) Video Support
IOGEAR's 4-Port HDMI Switch supports UHD 8K, the latest digital format for high difinition displays. This switch is capable of HD resolutions up to 7680x4320 @60Hz (4:2:0), 7680x4320 @30Hz (4:4:4) or 4K @120Hz.
Supports HDR+ and High Quality Audio Formats
Display your HDR content on any 8K capable HDMK display using IOGEAR's 4_Port 8K HDMI switch. Enjoy not only a wide range of colors, and detail. But enjoy high quality audio formats such as DSD (Direct Stream Digital) and HBR audio (High Bit Rate) such as Dolby True HD and DTS-HD.

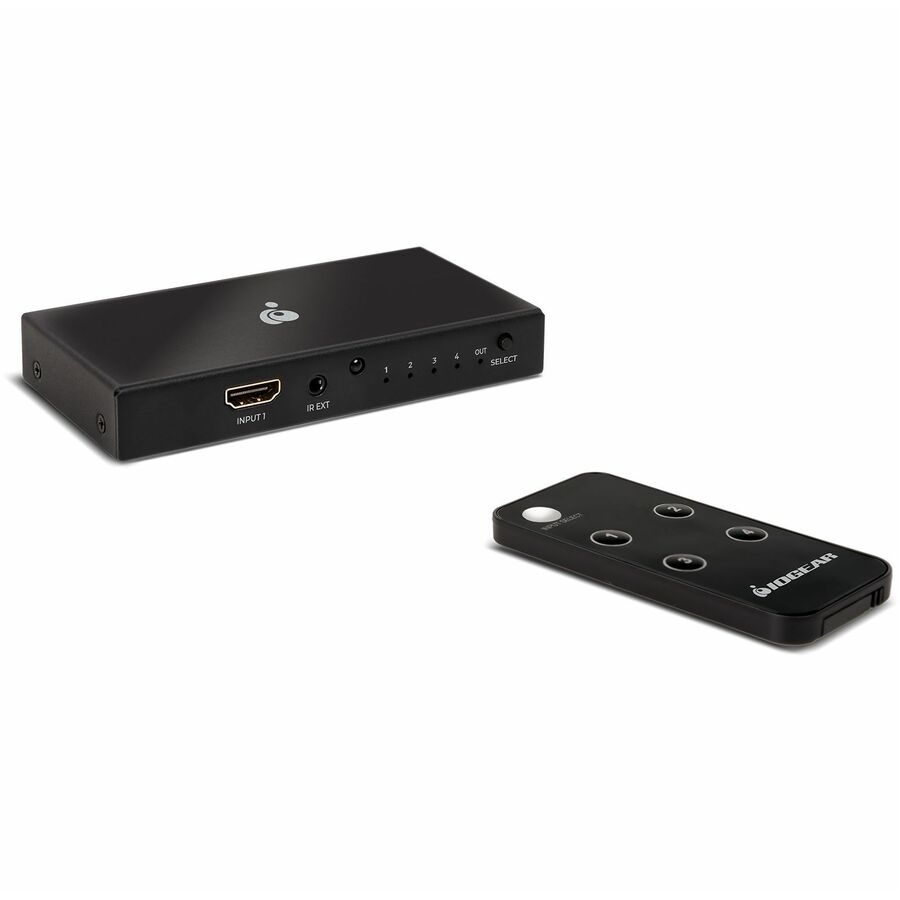

Easily switch between four different HDMI sources
Switch between different devices from the confort of your couch using the included IR remote. With the built in IR extension port, connect an IR extension cable (not included) to place the 4-port switch out of sight to keep your entertainment center neat and tidy.
- Connect up to four 8K sources to one HDMI enabled HDTV or projector
- Supports maximum resolution of 7680 x 4320 @60Hz (4:2:0 color sampling); 7680 x 4320 @30Hz (4:4:4 color sampling)
- Configures video resolution automatically according to the maximum output of each monitor with the capability to output 4K resolution to one monitor while output 1080p to another monitor (EDID function)
- High bandwidth of up to 48 Gbps with no latency
- HDMI 2.1 and HDCP 2.2 Compliant
- Supports HDR+ and full 3D pass-through
| Brand | |
|---|---|
| Brand | IOGEAR |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 1 |
| Graphics Modes | 8K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Cable |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 1 |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 4 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 7680 x 4320 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 4 |
| General Features | |
|---|---|
| Manufacturer | IOGEAR, Inc |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
