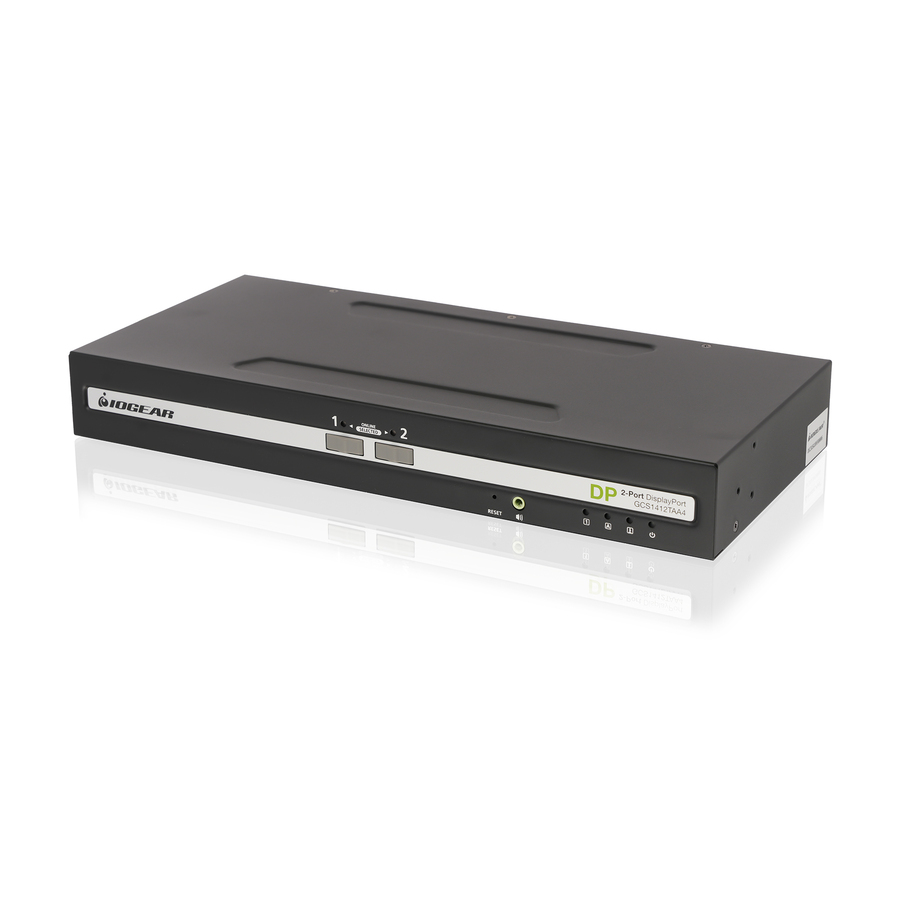

2-Port Single View DisplayPort Secure KVM with Audio and CAC Protection Profile v4.0
Secure and manage multiple data-sensitive systems from one workstation from internal and external cybersecurity threats with the TAA-compliant IOGEAR 2-Port Single View DisplayPort Secure KVM with Audio and CAC Protection Profile v4.0. Enable authorized users secure access to up to four systems with one keyboard, mouse, a 4K @30Hz monitor and dedicated common access card (CAC) reader port.
Featuring the latest in Common Criteria and NIAP Protection Profile v4.0 security requirements set for the U.S. government for peripheral sharing switches, the secure KVM switches are built for multiple interfaces and ideal for use in high-security environments that demand rigorous cybersecurity provisions including military and defense, federal agencies, government, utilities, commercial and healthcare applications.
NIAP Certified, Common Criteria Compliance & TAA Compliant
IOGEAR secure KVM switches comply with NIAP PP v4.0 security certification meeting the latest cybersecurity requirements from the U.S. government. The secure KVM also meets with the Common Criterial Compliance as part of the international Common Criteria Recognition Arrangement. The unit also meets with all TAA-compliant guidelines.
Superior Video Quality
The secure KVM switch supports 4K Ultra-HD resolutions up to 3840x2160 @30Hz. With the addition of the universal KVM cables, the secure KVM switch can support any monitor port even if the monitor uses a different display standard while enabling a universal display standard.
Active Tamper-Proof System
IOGEAR secure KVM switch hardware security is comprised of tamper-evident seals, active chassis intrusion detection, and tamper-proof hardware. Compliance with NIAP Protection Profile v4.0 certifies that non-approved USB peripherals will be rejected and cannot be connected to the secure KVM switch, providing high-level security, protection and data safekeeping.
With the combination of physical and software security, secure KVM switches offer secure air-gap network isolation to prevent internal and external access to individual system with authorization while consolidating multiple workstations with varying security classification levels.
Dedicated Common Access Card Reader Port
A fully advanced and configurable CAC reader port supports smart cards or biometric readers in compliance with NIAP-certified access accessories.
Compatible with IOGEAR Remote Port Selector
Securely select and switch between systems with optional external remote port selector that provides full operator control for an optimized user experience.
- NIAP-Certified PP4.0
- Validated to Protection Profile for Peripheral Sharing Device v4.0
- 2-Port Single View DisplayPort Secure KVM Switch
- One USB console controls 2 secure computers on 1 display
- Superior 4K UHD Video Resolution
- UHD Resolution: 3840 x 2160 @30Hz
- Port Selection via Push-Button and Remote Port Selector** for Enhanced Security
- Keyboard restrictions - OSD & hotkey methods are not allowed
- Isolated Channel per Port
- Unidirectional data flow restricts data leakage between connected computers
| Brand | |
|---|---|
| Brand | IOGEAR |
| Power & Battery | |
|---|---|
| Input Voltage Range | 100 - 240V |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 4 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPorts | 3 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 x 2160 |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 1 |
| Number of Local Users Supported | 1 |
| General Features | |
|---|---|
| Frequency | 60 Hz |
| Manufacturer | IOGEAR, Inc |
| Number of Computers Supported | 2 |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
