Convert HDMI signals into VGA outputs at a maximum conversion rate of 200 MHz with IIS or SPDIF audio output. The HDMI Receiver integrated is compliant with HDMI 1.4b. The DACs are based on current source architecture. And the VGA output meet VESA VSIS v1r2 clock jitter target.
- VGA/HDMI connection detection supported
- On-chip encoder supports 2 channel IIS/S/PDIF audio output
- Integrated EDID buffer
- Supports VESA and CEA timing standards up to WUXGA 1920x1200@60MHz and 1920x1080@60MHz.
- Complaint with HDMI 1.4 specification
- Analog RGB output for VGA with Triple 9-bit DAC up to 200MHz pixel rate.
- Supports HDMI Standard Norm
| Brand | |
|---|---|
| Brand | SYBA Multimedia |
| General Features | |
|---|---|
| Manufacturer | SYBA Multimedia, Inc |
| Cables | |
|---|---|
| Conductor | Copper |
| Cable Length | 6.50" |
| Cable Type | HDMI/Mini-phone/VGA |
| Connector Type on First End | HDMI 1.4b Digital Audio/Video - Male |
| Connector on First End Details | 1 x HDMI 1.4b Digital Audio/Video - Male |
| Connector Type on Second End | Mini-phone Audio - Female |
| Brand | SYBA Multimedia, Inc |
| UPC/GTIN | 810154019007 |
| MPN | SY-ADA31044 |
| Unit Count | 1 Units |
| Warranty | 1 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |

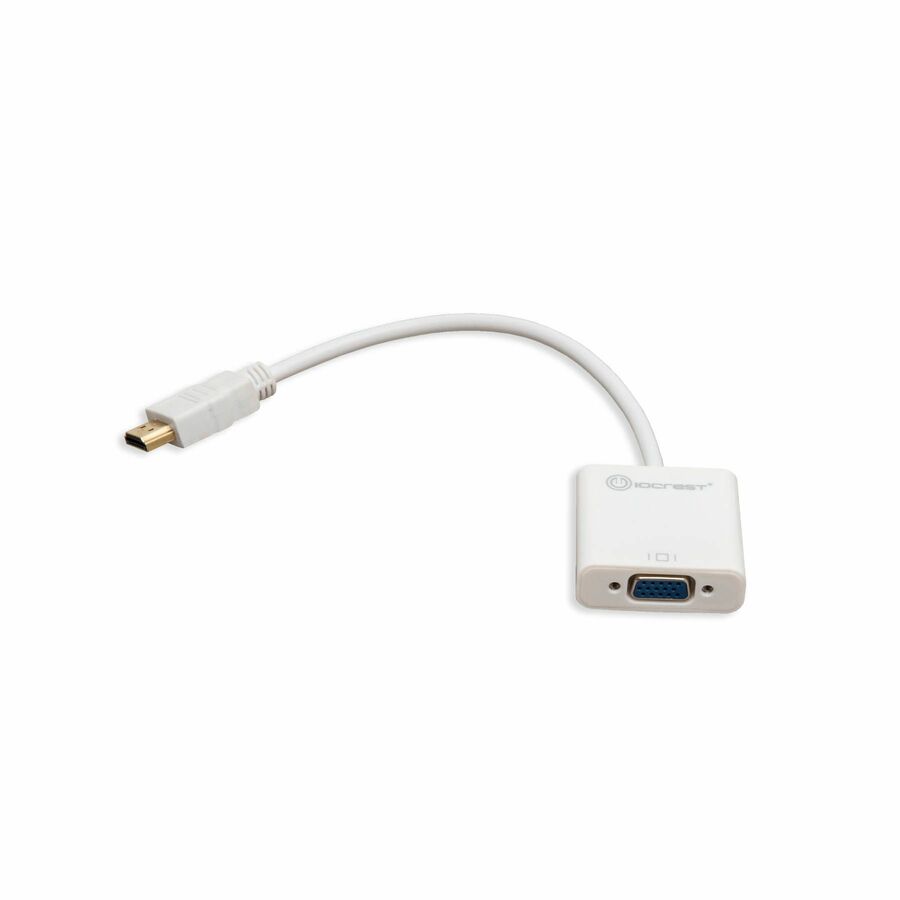

IO Crest Active HDMI to VGA Adapter with Audio Support via 3.5mm jack - 6.50" HDMI/Mini-phone/VGA A/V Cable for Audio/Video Device - First End: 1 x HDMI 1.4b Digital Audio/Video - Male - Second End: 1 x 15-pin HD-15 - Female, 1 x Mini-phone Audio - Female - White - 1
