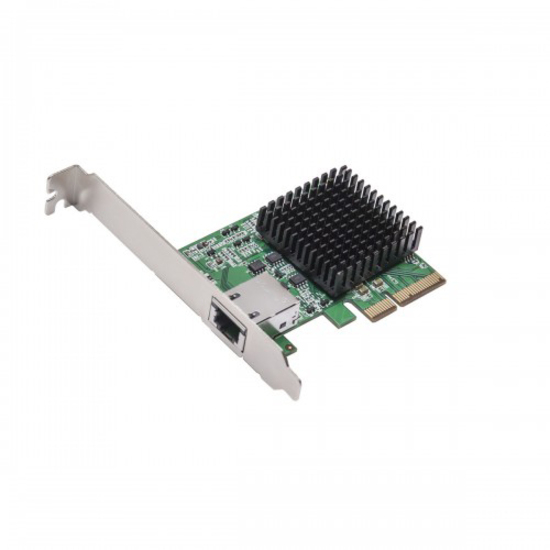

The SD-PEX24055 NIC supports 10GBASE-T Ethernet in compliance with the IEEE 802.3an standard, as well as 5 Gbps and 2.5 Gbps Ethernet speeds over standard Cat 5e and Cat 6 copper cables. Compliant to the IEEE 802.3bz standard ratified in September 2016, the SD-PEX24055 NIC is also backwards-compatible with legacy 1000BASE-T Ethernet. The AQN-107 is a single-chip, single-port, high-performance PCIe 3.0 Multi-Gig 10GBASE-T/5GBASE-T/2.5GBASE-T/ 1000BASE-T/100BASE-TX Ethernet adapter. It incorporates Aquantia's AQrate PHY technology to deliver 10 GbE, 5 GbE and 2.5 GbE network connectivity speeds over 100 m with zero change required for legacy cabling. Speeds ranging from 5 GbE to 100 M are supported by Cat 5e cabling while 10GbE requires a minimum of Cat6 with Cat 6a running up to 100 m.
- Performs all the physical layer functions required to implement 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX transmission over 100 meters of twisted pair cabling.
- Features Energy Efficient Ethernet (EEE) and Precision Time Protocol (PTP)/1588v2.
- Compliance - IEEE 802.3bz - NBASE-T, IEEE 802.3x - flow control, IEEE 802.1P - quality of service, IEEE 802.1QAV - AVB.
- SD-PEX24055 is ideally suited for client PCs and workstations used for data intensive computing in numerous verticals including multimedia, education, medical, financial, industrial design and gaming applications.
- IEEE® 802.3bz and NBASE-T compliant AQrate PHY supporting 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/ 100BASE-TX
- Integrated PCIe, MAC, and PHY solution enables power- and space-efficient connectivity for client systems
| Brand | |
|---|---|
| Brand | SYBA Multimedia |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-T |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Manufacturer | SYBA Multimedia, Inc |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Host Interface | PCI Express 3.0 x4 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
