A managed PoE passthrough switch to get the most out of each Power over Ethernet connection

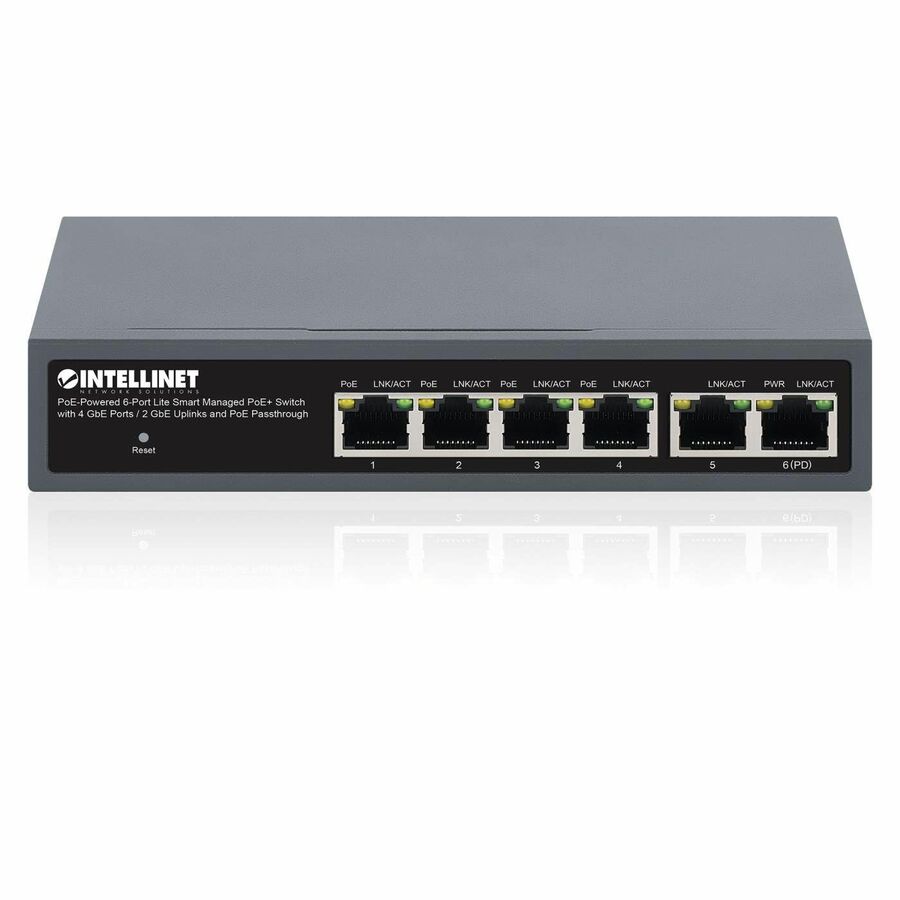

The PoE-Powered 6-Port Lite Smart Managed PoE+ Switch with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough from Intellinet Network Solutions is designed to take power from a PoE switch or injector and pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with six Gigabit Ethernet ports, this switch can power up to four wireless LAN access points and bridges, VoIP phones or IP video cameras, draw its own power from the PoE switch it is connected to, and deliver network speeds up to 1,000 Mbps.
Usable as a PoE extender
Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using it this way also eliminates the time and expense of electrical rewiring, which minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls while providing up to 30 W to compatible devices.
Lite and smart network management
With a simplified web interface and the most common configuration options, this switch is reduced to the essentials for a user-friendly installation.
The Perfect Workgroup Switch
When you connect the PD port (port 6) to a PoE injector or switch, this product uses some of the electric current to power itself. It then passes the available surplus power to four or fewer PoE edge devices, such as VoIP phones, allowing you to realize the full potential of each of the PSE ports in your data center.
Eliminate Bottlenecks with Gigabit Speeds
Equipped with six auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, the switch's 12 Gbps switch fabric provides plenty of performance for your computers and other networking devices.
Wall-mount option
For full installation flexibility, you can mount the switch on the wall through its four built-in holes or use the included non-slip rubber feet to place it on a desktop.
- Provides up to four PoE network devices with power and data
- Two RJ45 Gigabit uplink ports
- Self-Healing Network - the Powered Device Monitor feature (PDM), also known as PD Alive Check, restarts any connected PoE device that fails to respond or send out network traffic
- Lite Smart Management, with a simplified web interface and the most common configuration options for a user-friendly installation
- Domotz compatible for cloud management
- Can be powered via PoE or the included power cable; 60 W PoE power budget through 95 W PD input or AC power
- Power output up to 30 watts per port
- Supports 802.1Q VLAN (tag-based and port-based)
- 10/100/1000 auto-sensing ports that automatically detect optimal network speeds
- Effectively reduces downtime with improved network performance
- Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 6 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The desktop installation makes it ideal for deployments outside the wiring closet
- Management capability allows maximum efficiency and with unrestricted control
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
| Brand | |
|---|---|
| Brand | IC INTRACOM |
| Power & Battery | |
|---|---|
| PoE Budget | 60 W |
| Input Voltage | 230 V AC |
| Power Source | AC |
| Power Consumption | 65 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-T |
| Switch Management Type | Smart Managed |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 6 |
| PoE (RJ-45) Port | Yes |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| General Features | |
|---|---|
| Manageable | Yes |
| Maximum Data Transfer Rate | 128 MB/s |
| Frequency | 60 Hz |
| Manufacturer | IC INTRACOM |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 6 x Gigabit Ethernet PoE+ |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Packaging & Origin | |
|---|---|
| Package Type | Retail |
