Waterproof Outdoor PoE Switch with extra-high range and no need for AC power thanks to PoE Passthrough - great for network cameras

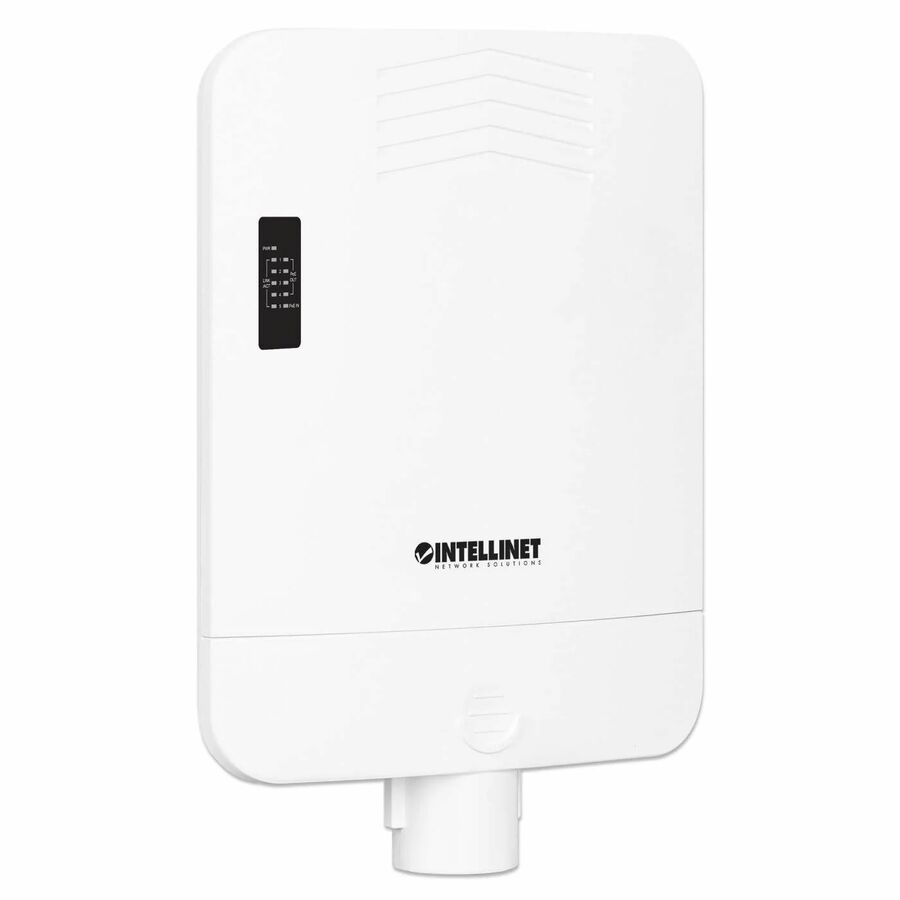

This PoE-Powered 5-Port Gigabit Switch from Intellinet Network Solutions is designed to take power from a PoE switch or injector and pass both data and electrical power directly to a number of PoE-compatible devices via standard Ethernet cables. Equipped with five Gigabit ports, it can power up to four IP video cameras or wireless access points, drawing its own power from the PoE switch it is connected to, and deliver network speeds of up to 1,000 Mbps. Its high range and weatherproof housing are especially useful for outdoor surveillance camera deployments, where both power and data connectivity are critical. As opposed to traditional 1-port outdoor PoE extenders, this 4-output switch simplifies the expansion of your outdoor infrastructure as needed for easier scalability of your network.
Designed for Outdoor Use
While you can power it from an indoor source, this outdoor PoE+ switch offers benefits where traditional indoor switches are not suitable, especially for longer-distance applications in a wide variety of environments. Its weatherproof IP65 (waterproof and dustproof) rating and a wide operating temperature range of -40 to 80�C (-40 to 176�F) make it able to withstand even the harshest conditions like rain, snow, dust, and extreme heat.
Usable as a PoE extender for reduced wiring costs
Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using it this way also avoids the expense of running AC power lines to an outdoor device. Simply connect the switch to a PSE in your network through existing Cat5e/6/6a cables to deliver DC power as well as transfer data.
Power over Ethernet 802.3bt Compliant
This switch supports the IEEE 802.3bt protocol over four pairs (4PPoE), which allows for a power input up to 90 W. It forwards data at Gigabit speeds and offers up to 30 watts per port to connected IEEE 802.3at- or IEEE 802.3af-compliant devices.
Wall-mount and pole-mount option
For full installation flexibility, you can mount the switch on the wall or a pole through its built-in bracket with mounting holes.
- Effectively increases available bandwidth on your network
- Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
- Quickly and easily set up a wired network with 5 networking ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
| Brand | |
|---|---|
| Brand | IC INTRACOM |
| Power & Battery | |
|---|---|
| PoE Budget | 85 W |
| Input Voltage | 57 V DC |
| Power Source | PoE++ |
| Networking & Connectivity | |
|---|---|
| Switching Capacity | 1.25 GB/s |
| Network Technology | 1000Base-T |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 5 |
| PoE (RJ-45) Port | Yes |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Pole Mount |
| General Features | |
|---|---|
| MTBF | 50000 Hour |
| Manufacturer | IC INTRACOM |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 1 x Gigabit Ethernet PoE++ |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
