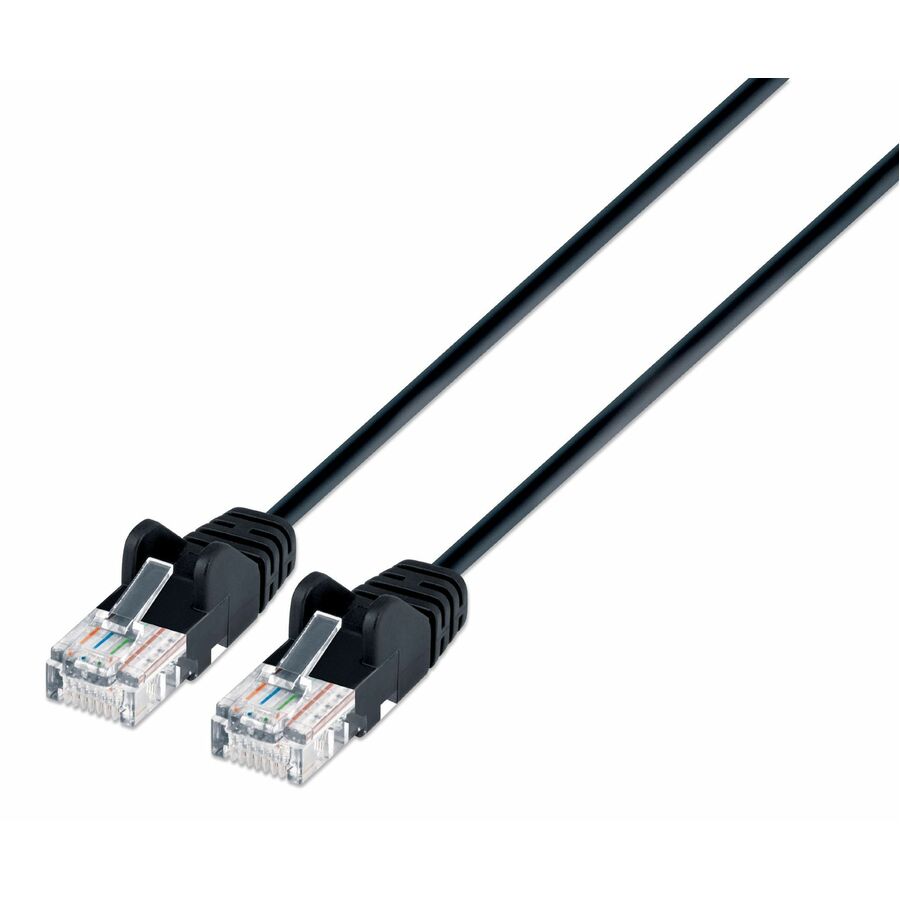

Intellinet Cat6a U/UTP Slim Network Patch Cable, 3 ft., Black

9.24 9.24
9.24

9.24 / Units
  • Brand
  • Cable Shielding Type
  • Connector on Second End Detai
  • Weight (Approximate)
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • California Proposition 65 War
  • Outer Diameter
  • Features
  • Boot Type
  • Cable Length
  • Cable Type
  • Cable Characteristic
  • Connector Type on First End
  • Connector on First End Details
  • Connector Gender on First End
  • Connector Type on Second End
  • Connector Gender on Second End
  • Contact Plating
  • Jacket Material
  • Shielding
  • Shielding Material
  • American Wire Gauge
  • Product Color
  • Color Family
  • Product Material
  • Material Details
  • Data Transfer Rate
  • Environmental Compliance
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Device Supported
  • Application/Usage
  • Manufacturer Website Address
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

Cat6a Ethernet Cable - 10G, 500 MHz LAN patch cord, ultra-thin: Establish your high-performance network connections with this Cat6a Network Patch Cable from Intellinet Network Solutions. It supports up to 10 Gbps data transmissions with frequencies up to 500 MHz and all PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE.

Strong, yet slim, space-saving design: This stranded cable offers all the benefits of a standard Cat6a network cable but with a diameter that's considerably smaller. In dense cable installations, the cable creates a tidier and more-organized look, and its thinner size helps promote better air circulation to equipment in a network cabinet. The cable's reduced size also means it is more flexible, which makes it a perfect choice for installation around corners and in tight-space cable runs.

Pure copper cable with gold-plated contacts for perfect conductivity: As opposed to other cables that are manufactured with copper-clad aluminum (CCA) or even copper-clad steel (CCS), this cable contains 100% pure bare copper for perfect conductivity and ideal for use in PoE applications. Gold plating on the contacts makes them corrosion-resistant in every environment.

Snag-free Boot Design: The snag-free boot design makes all patch cables from Intellinet Network Solutions the perfect choice for high-density environments, like data centers or server rooms. The cable plugs are equipped with strain relief and a molded boot for protection that makes it easy to safely connect and disconnect the latch without breaking it.

  • Certified Cat6a Class EA with 10G and 500 MHz in accordance with ISO/IEC 11801 and EN 50173-1
  • Pure bare copper wire for maximum conductivity
  • Gold-plated contacts for corrosion-free connections
  • Snag-free boots to smoothly and easily pull the cable without damaging the RJ45 connectors
  • Ultra-thin format for more flexibility and simplified cable management in dense installations
  • Ideal for HDBaseT and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
  • Heavy-duty strain relief
  • Compatible and color-coded with T568A and T568B
  • Standard 8P8C design, compatible with all network RJ45 connections
  • Fully backward compatible with all the previous cable categories, including Category 6, 5e and 5
  • Lifetime warranty
Brand
Brand IC INTRACOM
Size / Dimensions
Outer Diameter 0.16"
Appearance
Boot Type Molded
General Features
Data Transfer Rate 10 Gbit/s
Manufacturer IC INTRACOM
Cables
Cable Shielding Type Unshielded Twisted Pair (UTP)
Cable Length 3 ft
Cable Type Category 6a
Cable Characteristic Patch Cable
Connector Type on First End RJ-45 Network
Connector on First End Details 1 x RJ-45 Network - Male
Connector Gender on First End Male
Connector Type on Second End RJ-45 Network
Connector Gender on Second End Male
Contact Plating Gold
Jacket Material Polyvinyl Chloride (PVC)
Shielding No
Shielding Material Aluminum Foil
American Wire Gauge 30 AWG
Compliance & Certification
California Proposition 65 War Yes
