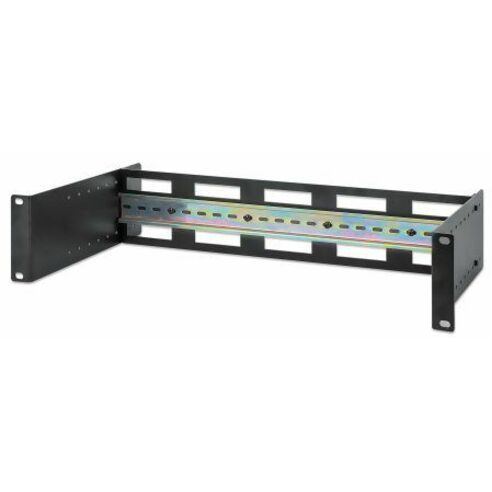

Depth-Adjustable DIN Rail Rack-Mount Kit to Easily Mount Your Top Hat Equipment in a 19-inch Cabinet
The Adjustable 19" Rackmount DIN Rail Kit, 2U from Intellinet Network Solutions allows for seamless integration of your top hat DIN rail equipment into a 19 in. network enclosure, open frame rack or server cabinet.
Tailor Your Space with Depth Adjustment
With eight adjustable levels ranging from 48 to 174 mm (1.89 to 6.85 in.), it accommodates a wide spectrum of products. Whether it's industrial PoE switches, media converters, power supplies, circuit breakers, terminal blocks, or more - this kit adapts to your needs.
Compliant and Compatible
Meeting EIA 310 / IEC 60297 standards, it fits into all standard 19 in. / 482.6 mm racks. The DIN-rail, in accordance with IEC/EN 60715 standards, ensures a perfect fit for your equipment.
Durable Construction Built to Last
Crafted with heavy-duty anodized 2 mm thick aluminum, our kit is built to withstand the test of time. It offers great strength and stability, providing a maximum load capacity of 9 kg (20 lbs.).
Everything You Need Included
We've got you covered with a package that includes four M6x12 screws, four M6 cage nuts, and four M6 plastic washers for 19" mounting straight out of the box.
- Rack-mountable chassis with top hat DIN rail to easily install any 35 mm (0.79'') equipment in a 19 in. network or server cabinet
- Depth-adjustable on eight levels from 48 to 174 mm (1.89 to 6.85 in.) to accommodate a wide range of products
- Ideal for DIN-rail equipment like industrial PoE switches, media converters, power supplies, circuit breakers, terminal blocks and more
- IEC 60297 / EIA 310-compliant; compatible with all standard 19 in. / 482.6 mm racks
- DIN-rail in accordance with IEC/EN 60715
- Heavy-duty construction with anodized 2 mm thick aluminum
- Maximum load capacity of 9 kg (20 lbs.)
- Includes 19" mounting material with four M6x12 screws, four M6 cage nuts, and four M6 plastic washers
- Three-year warranty
| Brand | |
|---|---|
| Brand | IC INTRACOM |
| Size / Dimensions | |
|---|---|
| Rail Depth | 6.85" |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Maximum Weight Capacity | 19.84 lb |
| General Features | |
|---|---|
| Manufacturer | IC INTRACOM |
