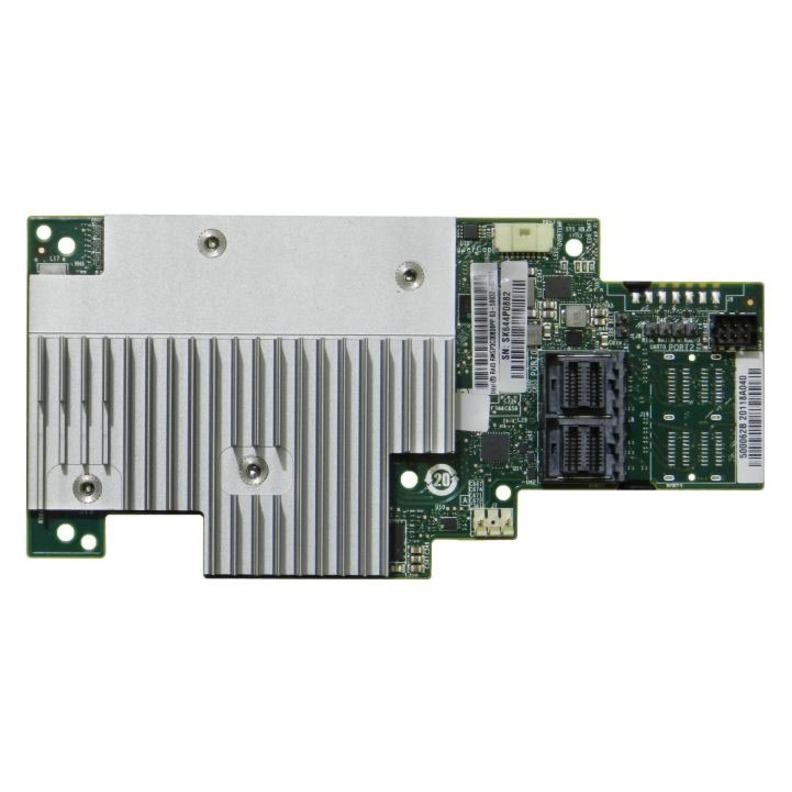

The Intel® RAID Module RMSP3CD080F is designed for use in content and web hosting appliances, security appliances, financial institutions, cloud service providers, and enterprise IT. Its mezzanine form factor is designed for the 2U Intel® Server Board S2600WF product family to enable storage flexibility without using a PCIe slot. It supports RAID levels 0/1/10/5/50/6/60 and optional maintenance-free cache backup with 4 GB DDR4. With eight internal ports, the Intel® RAID Module RMSP3CD080F enables NVMe, SAS, and SATA performance and scalability. It provides high uptime for mass storage, with maximum reliability for high-intensity workloads.
- Three year standard warranty (AWR optional)
- Optional: Self-encrypting drive support enables hardware disk encryption services on capable drives
- SuperCapacitor kit enables maintenance-free cache backup, reducing maintenance costs due to regular battery replacement
- Two internal mini-SAS-HD (SFF8643) connectors
- 4 GB 2133 MT/s DDR4 cache memory
- Utilizes Avago* SAS3516 ROC I/O processor
- Supports RAID levels 0/1/1/0/5/50/6/60
- Supports NVMe* over PCIe 3.0, 12 Gb/s SAS over PCIe 3.0, and 6 Gb/s SATA
| Brand | |
|---|---|
| Brand | Intel Corporation |
| CPU / Processor | |
|---|---|
| Cache Memory | 4 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 60 |
| Size / Dimensions | |
|---|---|
| Form Factor | Mezzanine |
| General Features | |
|---|---|
| Controller Type | Serial ATA/600 |
| Manufacturer | Intel Corporation |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express 3.0 |
| SAS Connector Details | 2 x SFF-8643 |
| Number of SAS Ports (Internal) | 8 |
| Total Number of SAS Ports | 8 |
