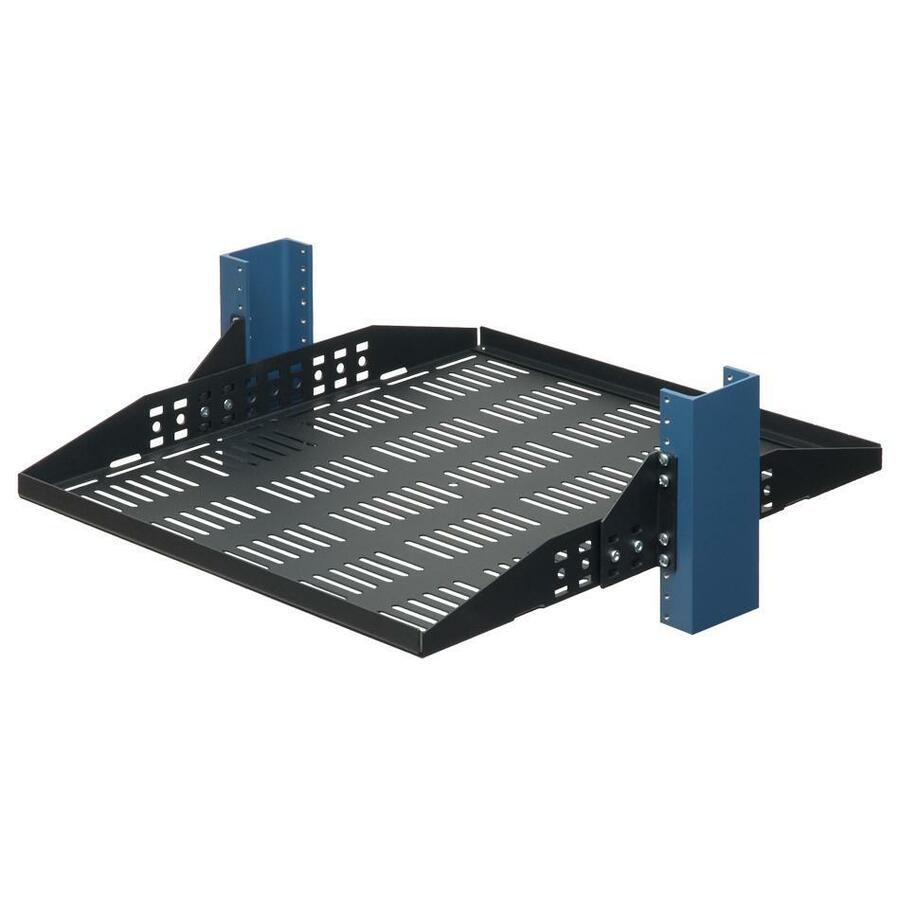

RackSolutions' center mounted configurable 2Post rack shelves can be adjusted to fit a wide variety of mounting needs. The shelf's mounting position can be adjusted along the attachment ears using the holes along the sides of the shelf. Slots for equipment straps are also found along the side of the rack, which can be used for securing equipment to the shelf. The flanges, or equipment stops, can be adjusted along the entire length of the shelf in 1" increments, or removed altogether. This 2 post rack shelf has a shelf depth of 20 inches (508 mm) and a weight capacity of 150 lbs (68 kgs), making it perfect for mounting a large variety of electronic equipment in a 2 post rack that might not ordinarily rack mountable. Our relay rack shelves are compatible with any Standard EIA 19" 2 post relay or telecommunications rack.
- Compatible with 3" to 8" uprights
- Compatible with round, threaded, or square rack holes
- Weight Capacity: 150 lbs (68 kgs)
- Shelf Depth: 20" (508 mm)
- Rack shelves can mount upside down
- Compatible With 2 Post Racks
- Equipment stops easily adjusted or removed
- Vented or solid shelf options
- Center Mounted 2 Post Shelf Configurable to Your Needs
- Shelf position configured along the mounting bracket
| Brand | |
|---|---|
| Brand | Rack Solutions |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Rack Width | 19" |
| Static/Stationary Weight Capacity | 200 lb |
| Maximum Weight Capacity | 150 lb |
| General Features | |
|---|---|
| Manufacturer | Innovation First International, Inc |
| Brand | Rack Solutions |
| UPC/GTIN | 807648001471 |
| MPN | 2USHL-020-FULL-20V |
| Unit Count | 1 Units |
