More CPU Heatsink-Clearance
Optimal CPU Heatsink height up to 54 mm. Supports both AMD and Intel CPU coolers.
Perforated Mesh Panel
Newly redesigned mesh panel increases the ventilation surface area to enhance heat dissipation
InWin 200W 80 PLUS Gold PSU Included
The Chopin MAX provides maximum efficiency while keeping the noise pollution at a minimum.
Chopin MAX Recommended CPU (Integrated Graphics)
Super Transfer Speeds
The Chopin MAX is built with one USB 3.2 Gen 2X2 Type-C USB port and two USB 3.2 Gen 1 Type-A ports for faster data transfer speeds.
Itty-Bitty Living Space
The Chopin MAX can house 2 x 2.5" SSDs in a compact enclosure. The user-friendly design allows for simplified M.2 SSD installation.

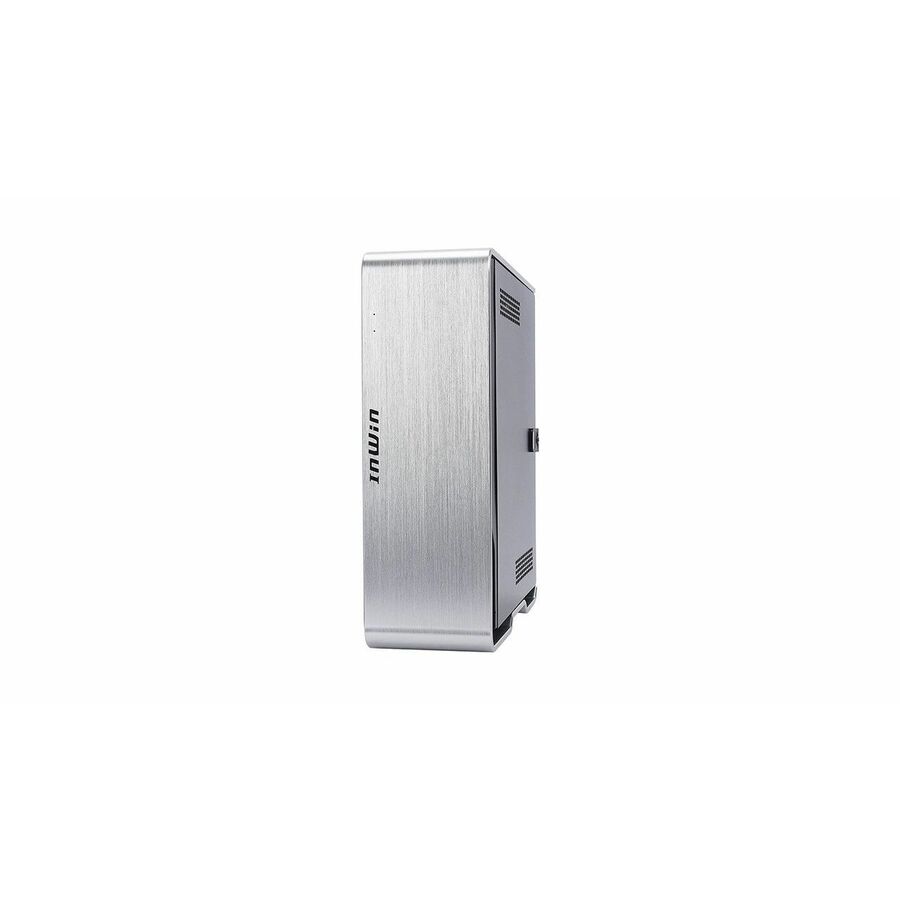

Mini-ITX Aluminium Chassis
The Chopin MAX is an ultra slim form factor case designed with the intention of being a multifaceted PC case with a small footprint.
The 4 mm aluminium shell is bent and shaped to manifest its surroundings, all while being presented with a classic hairline finish.
Customizable I/O Strip
Four color I/O strip options to allow you to customize your own case with your unique style.
- Mini ITX motherboard builds a perfect symmetry of hardware components required in media server or NAS box
- Tower structure grants ample space for more hardware components
| Brand | |
|---|---|
| Brand | In Win Development |
| Power & Battery | |
|---|---|
| Power Supply Wattage | 200 W |
| Power Supply Installed | Yes |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 3 |
| Front USB | Yes |
| USB Port Details | 2 x USB 3.2 Gen 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| General Features | |
|---|---|
| Motherboard Supported | Mini ITX |
| Manufacturer | In Win Development, Inc |
| Drive Bays | |
|---|---|
| Number of Internal 2.5" Bays | 2 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Environmental Certification | T�V Rheinland Green Product |
