Product Introduction

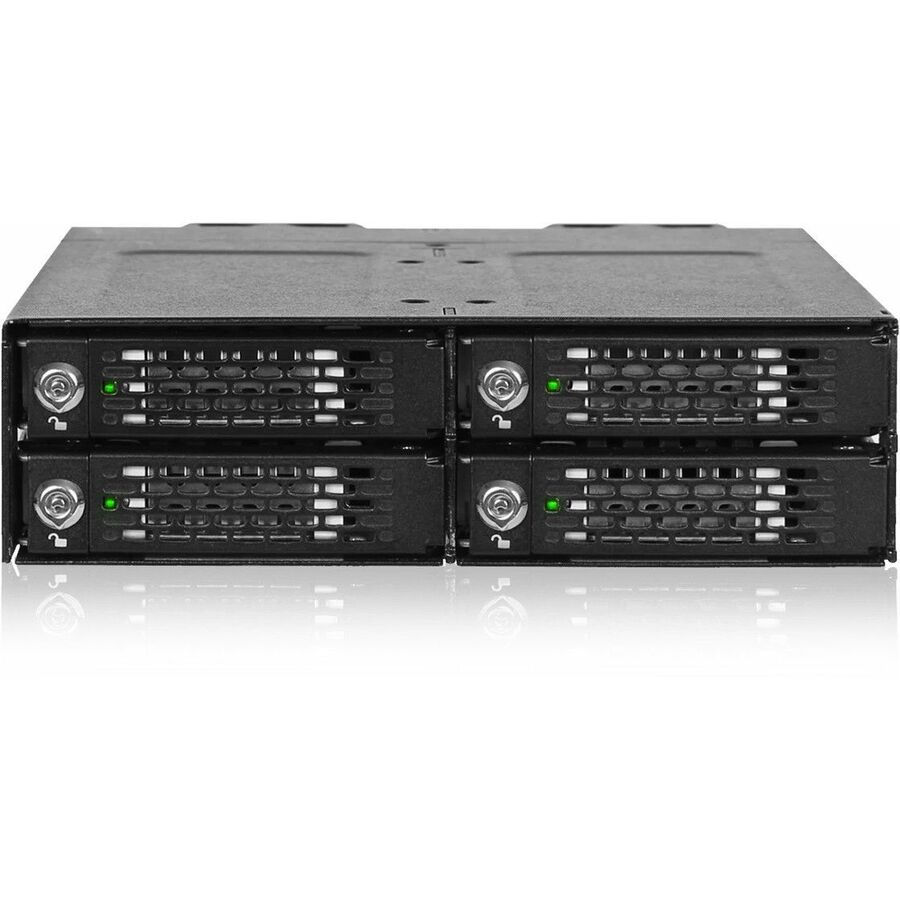

Introducing the ToughArmor MB720MK-B V3, a rugged and removable quad M.2 PCIe 4.0 NVMe SSD enclosure designed for a 5.25" optical drive bay. This powerful enclosure supports blazing-fast data transfer rates of up to 64Gbp/s through the OCulink (SFF-8612) interface and is compatible with Tri-mode host cards. Installing or removing M.2 NVMe SSDs has never been simpler, thanks to the removable drive trays with tool-less adjustable M.2 drive lockers. You can easily swap drives without having to open your computer case or mess with mounting screws.
To ensure top-notch cooling performance, the MB720MK-B V3 comes equipped with dual cooling fans in the back, effectively dissipating the heat generated by high-speed PCIe 4.0 SSDs. Moreover, each drive tray features an extra-large heatsink lid and thermal pad, keeping your SSDs at optimal temperatures. As part of ICY DOCK's toughest line, the MB720MK-B V3 boasts a full metal construction and metal barrel key locks, providing maximum protection for your valuable drives.
Now Compatible with Tri-Mode Controllers
By popular demand and in response to recent updates to circuit boards from host card manufacturers, the ToughArmor MB720MK-B V3 now supports Tri-Mode controller cards from leading brands like Broadcom, Areca, and more. For more information on compatible cards and cables, check out the FAQ section on this product page.
Superior PCIe 4.0 Performance
Unlock the full power of PCIe 4.0 NVMe SSDs with the ToughArmor MB720MK-B V3. Each drive bay features a dedicated OCuLink (SFF-8612) connector, enabling a whopping 64Gb/s bandwidth rate-twice as fast as PCIe 3.0 and ten times faster than SATA standards. This makes it a perfect solution for data-intensive applications like autonomous driving, mobile automation, real-time forecasting, film editing, and military computing.
Removable Drive Tray Design
Typically, M.2 SSDs are installed on the motherboard or adapter card and secured with tiny screws, requiring you to open the computer case to access the drives. The ToughArmor MB720MK-B V3 brings your M.2 NVMe SSDs to the 5.25" optical bay of your computer system, allowing you to swap drives without opening the case, making drive maintenance more efficient and hassle-free.
Patent-Pending M.2 Drive Locker
To install a drive, simply place the M.2 PCIe NVMe SSD in the drive tray, adjust the M.2 drive locker to the correct drive length, and you're good to go-no tools or screws needed!
Full Drive Length Support
The M.2 adjustable locker accommodates all standard M.2 PCIe NVMe SSD drives, including 2230 (30mm), 2242 (42mm), 2260 (60mm), 2280 (80mm), and 22110 (110mm), making it universally compatible and future-proof for extra-long M.2 110mm drives.
EMI Grounding Technology
Grounding your M.2 SSD is crucial, as swapping drives without proper grounding can lead to hardware damage from static shocks. Our innovative EMI Grounding Technology ensures that once the drive clips into the M.2 adjustable locker, it remains grounded through the tray, housing, and computer system, protecting your drives from static electrical surges during swapping.
- Fits 4x M.2 NVMe SSDs of all lengths, 30mm (2230), 42mm (2242), 60mm (2260), 80mm (2280), and 110mm (22110)
- Installs into any standard external 5.25" optical drive bay
- Supports Tri-mode controllers PCIe/NVMe pinout (Broadcom, Areca, and more)
- Connects with 4x OCulink (SFF-8612) (NVMe host required)
- Supports PCIe 4.0 specification with transfer rates up to 64Gb/s per drive bay
- Patent-pending screw-less M.2 adjustable locker securely holds all length drives
- Removable and tool-less drive installation design for easy drive maintenance
- Rugged, full-metal enclosure meets flammability requirements
- Integrated large, high-efficiency heatsink and ample ventilation for excellent cooling performance
- 2-segment key lock for additional physical security
- Eagle-hook tray latch securely holds the drive tray inside the enclosure
- Supports SATA 15-pin and OCuLink cables with locking latch design for a secure connection
- EMI Grounding protects SSDs from electrical damage
- Industry-leading 5 years limited warranty against all defects
| Brand | |
|---|---|
| Brand | Icy Dock |
| Storage | |
|---|---|
| Number of Solid State Drive I | 0 |
| Drive Interface | PCI Express NVMe 4.0 x4 |
| Size / Dimensions | |
|---|---|
| Form Factor | Internal |
| Compatible Drive Bay Width | 5.25" |
| General Features | |
|---|---|
| Cooling Fan | Yes |
| Maximum Data Transfer Rate | 64 Gbit/s |
| Manufacturer | Icy Dock |
| Drive Bays | |
|---|---|
| Number of Solid State Drive S | 4 |
| Number of Total Expansion Bays | 4 |
| Misc Ports | |
|---|---|
| Host Interface | SFF-8612 OCuLink |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | 4 Bay M.2 NVMe SSD PCIe 4.0 Mobile Rack Enclosure for External 5.25" Drive Bay |
