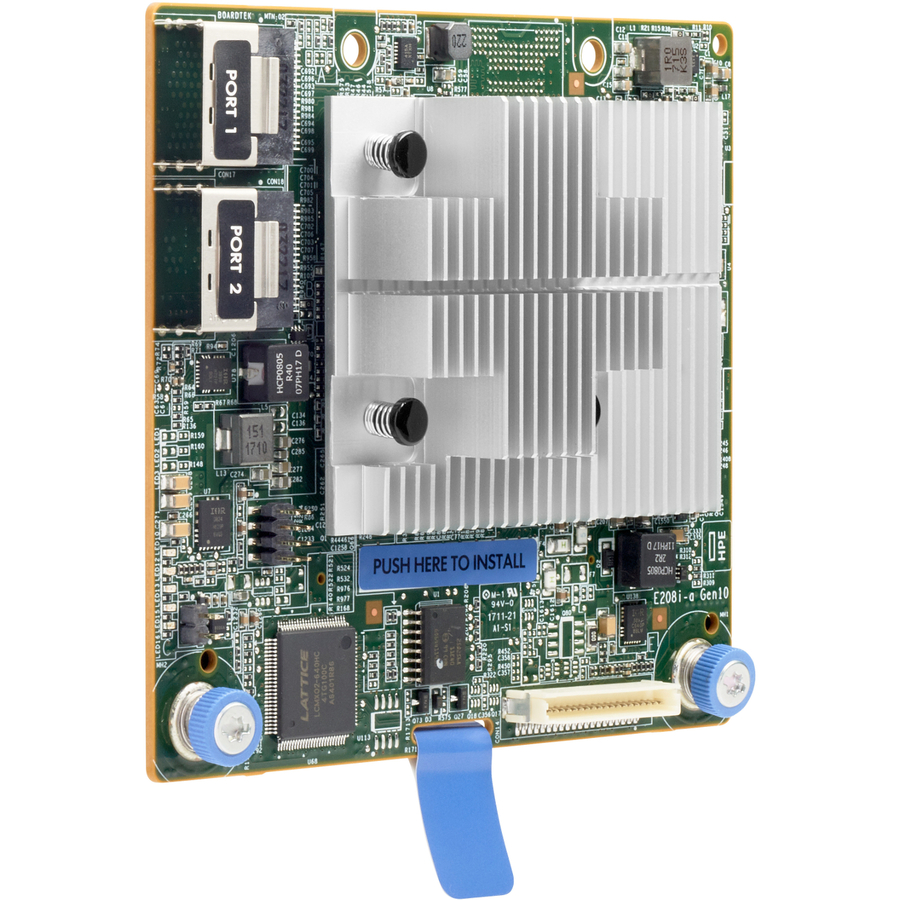

The HPE Smart Array E208i-a SR Gen10 Controller, supporting 12Gb/s SAS and PCIe 3.0, is an ideal cost-effective solution for RAID 0, 1, 5, and 10 and Software Defined Storage solutions. This controller operates in Mixed Mode which combines RAID and HBA operations simultaneously. It has eight internal SAS lanes, allowing connection to SAS or SATA drives, and offers encryption for data-at-rest on any drive with HPE Smart Array SR Secure Encryption. This type-a modular controller occupies a dedicated storage slot without occupying a PCIe expansion slot and provides enterprise-class reliability, security and efficiency needed to address your evolving data storage needs.
- Cache : No cache
- Form factor : Type-a modular controller
- Ports : Internal: 8 SAS lanes across 2 x4 Mini-SAS ports
- Transfer rate : 12Gb/s SAS per lane 6Gb/s SATA per lane PCI Express 3.0 x8 lane width
| Brand | |
|---|---|
| Brand | Hewlett Packard Enterprise |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 10 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Module |
| General Features | |
|---|---|
| Controller Type | Serial ATA/600 |
| Manufacturer | Hewlett Packard Enterprise |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express 3.0 x8 |
| SAS Connector Details | 2 |
| Number of SAS Ports (Internal) | 8 |
