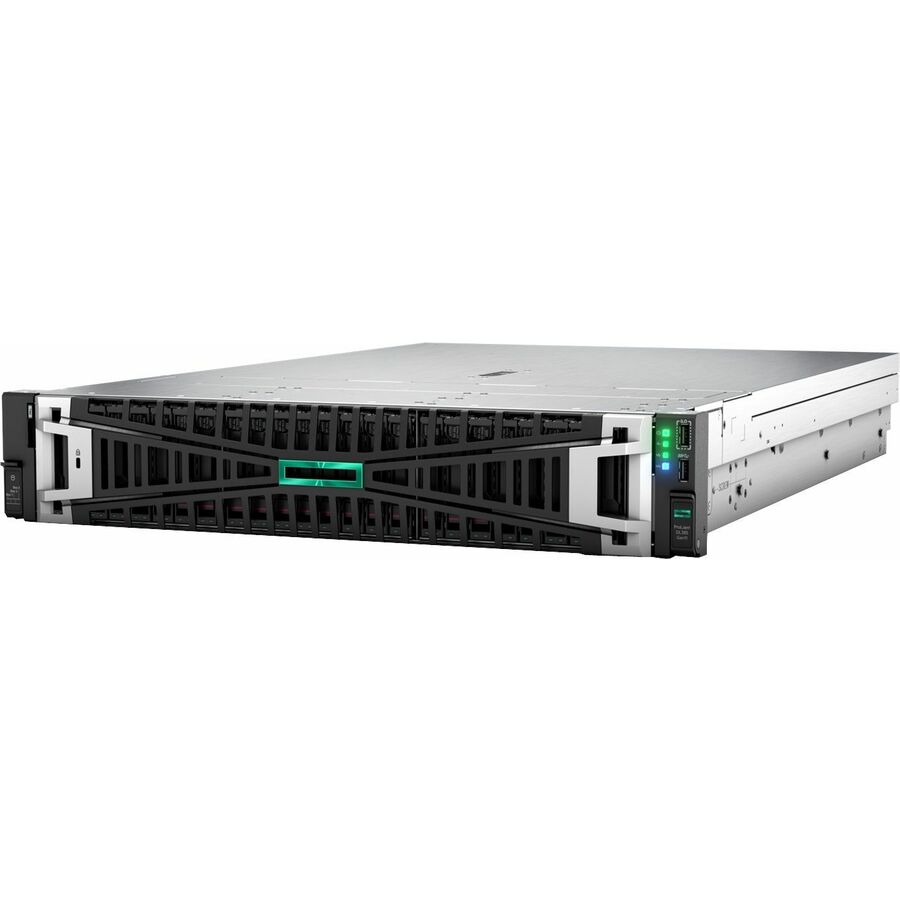

Overview | HPE ProLiant DL385 Gen11
The new HPE ProLiant DL385 Gen11 server is an accelerator-optimized 2U 2P solution that delivers exceptional compute performance, upgraded high-speed data transfer rate and memory depth at 2P compute capability. Powered by 4th Generation AMD EPYC™ 9004 Series Processors with up to 96 cores, increased memory bandwidth (up to 6TB), high-speed PCIe Gen5 I/O, Gen5 EDSFF storage and the newly designed chassis supporting 8 single wide (SW) or 4 double wide (DW) GPUs*. The HPE ProLiant DL385 Gen11 server is a perfect accelerator-optimized 2U 2P solution.
- Powered by the 4th Generation AMD EPYC™ 9004 Series Processors with 5nm technology that supports up to 128 cores at 400W, 1152 MB of L3 Cache, and 24 DIMMs for DDR5 memory up to 4800 MT/s.
- 12 DIMM channels per processor for up to 6 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.
- Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and two OCP slots.
- Includes HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly from anywhere.
- Supports hot-pluggable, high-availability RAID M.2 boot options.
- New features including PCIe Gen5 EDSFF support and double-wide GPU support.
| Brand | |
|---|---|
| Brand | Hewlett Packard Enterprise |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | AMD |
| Processor Type | EPYC |
| Processor Model | 9124 |
| Number of Processors Installed | 1 |
| Number of Processors Supported | 2 |
| Processor Generation | 4th Gen |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Speed | 3 GHz |
| Cache | 64 MB |
| GPU / Graphics | |
|---|---|
| Graphics Memory Capacity | 16 MB |
| Memory / RAM | |
|---|---|
| Number of Occupied Memory Slo | 1 |
| Standard Memory | 32 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 12 |
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Maximum Memory Supported | 6 TB |
| Storage | |
|---|---|
| Hot Swappable Bays | Yes |
| Power & Battery | |
|---|---|
| Number of Power Supplies Supp | 2 |
| Number of Power Supplies Inst | 1 |
| Hot Swappable Power Supply | Yes |
| Plug/Connector Type | C13/C14 |
| Power Source | Power Supply |
| Maximum Power Supply Wattage | 800 W |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 4 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack |
| Rack Height | 2U |
| General Features | |
|---|---|
| Remote Management Controller | HPE iLO Standard with Intelligent Provisioning (embedded) , HPE OneView Standard (requires download); HPE iLO Advanced , and HPE OneView Advanced (require licenses) Compute Ops Management Software , HPE iLO Advanced Premium Security Edition |
| Chipset Manufacturer | AMD |
| Remote Management | Yes |
| Controller Type | 12Gb/s SAS |
| Controller Model | MR408i-o |
| Manufacturer | Hewlett Packard Enterprise |
| Expansion Slots | |
|---|---|
| PCI Express Details | 2 OCP 3.0 , 1 PCIe Gen5 x16 |
| Total Number of Expansion Slots | 3 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 8 |
| Number of Internal 2.5" Bays | 8 |
| Number of SFF Bays | 8 |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certificati | ENERGY STAR 3.0 |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
