Key Features | Powerful Performance

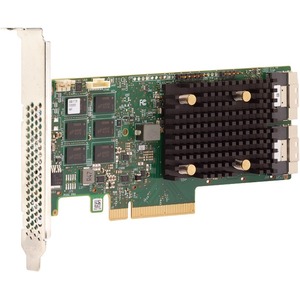

Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus feature Broadcom MR416i and Broadcom MR216i controllers with impressive performance including up to 13,700 Mbs of bandwidth, 3M random read IOPS, and 240K RAID5 random write IOPS.
2nd Generation Tri-Mode SerDes
Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus is enabled with SerDes for exceptional support of NVMe4/SAS3/SATA protocols.
With Tri-Mode support, achieve the scalability and flexibility you need for shifting business environments.
Enhanced Security
Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus is built with the HPE Silicon Root of Trust for firmware authentication and support for self-encrypting drives to help ensure protection for data at rest and prevention of malware.
Software Supported
Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus support all major OS's including but not limited to Windows, Linux®, and VMware®, full tool suite including command line interface, web-based management, and out-of-band management support.
- SAS Controller offers maximum storage productivity with added dependability
- 12Gb/s SAS controller type for faster, efficient data transfer rates with maximum dependability
- 0 RAID level for faster, dependable read and write performance for maximum storage productivity
- Server device support for enhanced storage efficiency and productive data transfer capability
- The PCI Express 4.0 x16 interface provides smooth data transfer and outstanding performance
- 4 GB cache memory for convenient and quick access to the information to ensure maximum productivity
- Plug-in Card form factor for added reliability and dependability
- SAS Controller has a non-volatile memory which is beneficial for your PC storage expansion needs
| Brand | |
|---|---|
| Brand | Hewlett Packard Enterprise |
| CPU / Processor | |
|---|---|
| Cache Memory | 4 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 60 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Controller Type | 12Gb/s SAS |
| Manufacturer | Hewlett Packard Enterprise |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express 4.0 x16 |
| Number of SAS Ports (Internal) | 16 |
| Total Number of SAS Ports | 16 |
