High performance Wi-Fi 6 (802.11ax) for outdoor environments

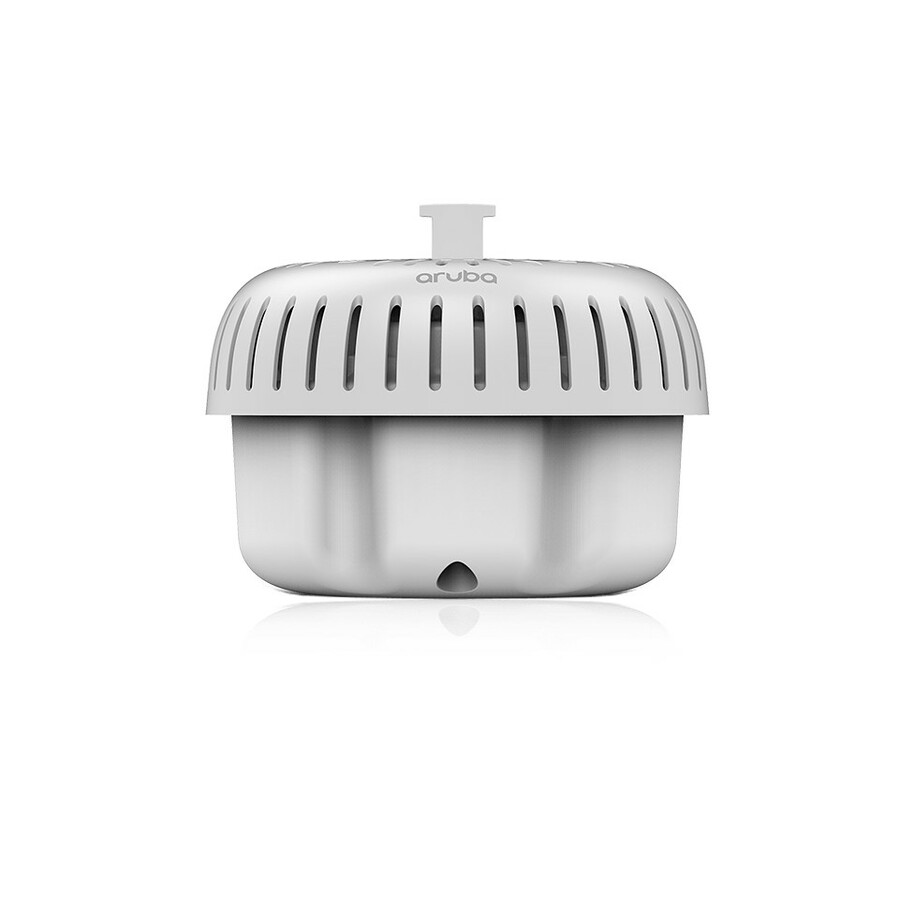

Weatherproof and temperature hardened, Aruba 570 Series access points deliver the highest Wi-Fi 6 performance in outdoor and environmentally challenging locations. The high-performance and high power 570 Series APs deliver maximum capacity and range. It delivers 4x4:4SS MU-MIMO capability, Aruba's advanced ClientMatch and integrated Bluetooth to enable Aruba location services.
Purpose-built to survive in the harshest outdoor environments, 570 Series APs withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial strength surge protection.
Aruba Wi-Fi 6 access points provide high-performance connectivity in dense mobile and IoT environments. With maximum aggregate on air data rates of 3 Gbps (HE80/HE40), the 570 Series APs deliver the speed and reliability needed for demanding environments.
INCREDIBLE EFFICIENCY
The 570 Series APs are designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.
Features include Uplink and Downlink Orthogonal Frequency Division Multiple Access (OFDMA), Downlink Multi-User MIMO (MU-MIMO) and cellular co-location. With up to 4 spatial stream and 160 MHz channel capability, the 570 Series provides groundbreaking wireless capabilities for any application. Read the Multi-User 802.11ax white paper for further information.
Advantages of OFDMA
This capability allows Aruba Wi-Fi 6 APs to handle multiple Wi-Fi 6 enabled clients simultaneously on a single radio. Channel utilization is optimized per transaction by matching allocated bandwidth in a channel to the offered user load. These sub divisions of the channel are referred to as Resource Units (RU).
Multi-User MIMO (MU-MIMO)
The 570 Series APs support downlink MU-MIMO similar to Wi-Fi 5 (802.11ac Wave 2) APs. With the introduction OFDMA in Wi-Fi 6, the overhead for this capability is reduced and MU-MIMO effectiveness is substantially improved for large client counts.
Weatherproof and temperature hardened, Aruba 570 Series access points deliver the highest Wi-Fi 6 performance in outdoor and environmentally challenging locations. The high-performance and high power 570 Series APs deliver maximum capacity and range. It delivers 4x4:4SS MU-MIMO capability, Aruba's advanced ClientMatch and integrated Bluetooth to enable Aruba location services.
Purpose-built to survive in the harshest outdoor environments, 570 Series APs withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial strength surge protection.
Aruba Wi-Fi 6 access points provide high-performance connectivity in dense mobile and IoT environments. With maximum aggregate on air data rates of 3 Gbps (HE80/HE40), the 570 Series APs deliver the speed and reliability needed for demanding environments.
INCREDIBLE EFFICIENCY
The 570 Series APs are designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.
Features include Uplink and Downlink Orthogonal Frequency Division Multiple Access (OFDMA), Downlink Multi-User MIMO (MU-MIMO) and cellular co-location. With up to 4 spatial stream and 160 MHz channel capability, the 570 Series provides groundbreaking wireless capabilities for any application. Read the Multi-User 802.11ax white paper for further information.
Advantages of OFDMA
This capability allows Aruba Wi-Fi 6 APs to handle multiple Wi-Fi 6 enabled clients simultaneously on a single radio. Channel utilization is optimized per transaction by matching allocated bandwidth in a channel to the offered user load. These sub divisions of the channel are referred to as Resource Units (RU).
Multi-User MIMO (MU-MIMO)
The 570 Series APs support downlink MU-MIMO similar to Wi-Fi 5 (802.11ac Wave 2) APs. With the introduction OFDMA in Wi-Fi 6, the overhead for this capability is reduced and MU-MIMO effectiveness is substantially improved for large client counts.
Wi-Fi 6 and MU-MIMO aware client optimization
Aruba's patented Al powered ClientMatch technology ensures that all clients are attached to their best serving Access Point. Session metrics, network metrics, applications and client type are used to identify and maintain the best connection.
Advanced Cellular Coexistence (ACC)
The ACC feature uses built in filtering to automatically minimize the impact of interference of high power cellular base stations, in building distributed antenna systems as well as small cell and femtocell equipment.
- Wireless Access Point offers maximum wireless connection productivity with added dependability
- 4.80 Gbit/s wireless transmission speed provides better reception, and dependable connectivity with maximum productivity
- 802.11ax wireless LAN standard offers a reliable, convenient way of communication
- Gigabit Ethernet port for ultra-fast wired network speeds
- Data Encryption provides reliable and enhanced data security and management
- External antenna form factor for reliable connectivity with maximum productivity
- Flush Mount form factor for your usage convenience and better reliance
| Brand | |
|---|---|
| Brand | Hewlett Packard Enterprise |
| Networking & Connectivity | |
|---|---|
| Bluetooth Standard | Bluetooth 5 |
| Beamforming Technology | Yes |
| MIMO Technology | Yes |
| Wireless Transmission Speed | 4.80 Gbit/s |
| Frequency Band | 5 GHz |
| Network Band | Dual Band |
| USB Ports | |
|---|---|
| USB | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| PoE PD Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Ceiling Mountable |
| Antenna Form Factor | External |
| Security | |
|---|---|
| Data Encryption | Yes |
| Encryption Standard | WPA2-MPSK |
| General Features | |
|---|---|
| Indoor/Outdoor | Outdoor |
| Manufacturer | Hewlett Packard Enterprise |
| Misc Ports | |
|---|---|
| Management Port | Yes |
