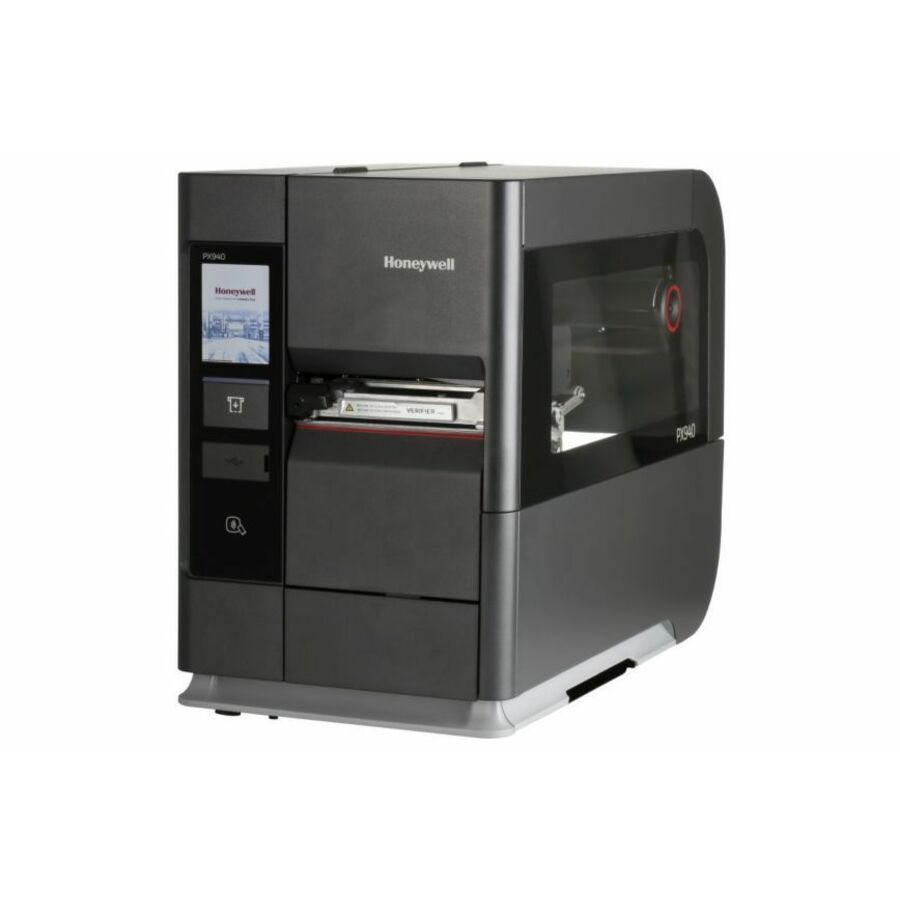

The PX940 high-performance industrial printer with integrated label verification technology provides error-free printing.
Developed for companies that are subjected to fines levied for non-compliance to regulatory standards and returned shipments due to unreadable barcodes, the PX940 prints barcodes that are 100% readable every time. With pass/ fail and ANSI grades from 0.0 (F) to 4.0 (A), bad labels that do not meet an established threshold are voided and a new label is reprinted. The PX940 printer has print registration of up to +/- 0.2 mm (0.0079 in). The trend toward miniaturization requires printing on smaller and smaller labels. The PX940 will print accurately on small labels, edge to edge with high precision.
The PX940 printer is suited for transportation and logistics, pharmaceuticals and healthcare, shipping and distribution centers, industrial manufacturing, automotive parts suppliers, and applications that are regulated and require high precision and error-free printing. The PX940 printer is available in two versions: one with the integrated verifier, and an option without the integrated verifier. Both versions are available with standard features such as Bluetooth® LE, used with Print Set MC and smart printing capability. Smart printing allows users to configure printer settings and print without the need for a host computer.
With a Honeywell firmware platform that supports multiple print languages, the PX940 printer is an easy replacement for competitive printers. A rugged all-metal print mechanism, easy printhead and tool-free platen roller replacement, and a predictive maintenance system help to minimize downtime and maintenance. The PX940 printer can support a wide range of media - including ink-in and inkout ribbons with one-inch core size - enabling maximum time between media resupply. Fast time-to-label and print speeds of up to 350 mm/s (14 ips) ensure that the PX940 printer can scale with the changing needs of dynamic operations.
- A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
- 300 maximum print resolution (dpi) for your convenience and easy usage
- Print crisp and clear documents in either black or color with this color printer
- Single Sided printing capability for your convenience and maximum usability
- Enjoy the optimal performance in today's on-demand labeling applications
- Save time and money for your business by using one printer for all your employees
- Bye bye Wires, Hello Wi-Fi! Cut down the potential hazards of tripping and electrical fires by reducing the number of long cables. Print wirelessly even from your mobile devices.
- 4.49" maximum label width for your convenience and feasible usability
- Supports gap media type for dependable, efficient results with maximum productivity
- Direct Thermal/Thermal Transfer Printer with industrial application/usage provides maximum usability with better reliance
| Brand | |
|---|---|
| Brand | Honeywell International |
| Memory / RAM | |
|---|---|
| Standard Memory | 1 GB |
| Storage | |
|---|---|
| Flash Memory | 256 MB |
| Screen / Display | |
|---|---|
| Screen Size | 3.5" |
| Touchscreen | Yes |
| Display Screen | Yes |
| Display Screen Type | LCD |
| Power & Battery | |
|---|---|
| Power Source | AC Supply |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Ethernet | Yes |
| Near Field Communication (NFC) | Yes |
| RFID | Yes |
| Connectivity Technology | Wired & Wireless |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Standard | USB 2.0 |
| USB Host | Yes |
| Software & Licensing | |
|---|---|
| Fonts Included | non-Latin fonts |
| General Features | |
|---|---|
| Frequency | 60 Hz |
| Manufacturer | Honeywell International, Inc |
| Recommended Use | Label Print |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Rewinder | Yes |
| Print Technology | Direct Thermal /Thermal Transfer |
| Maximum Mono Print Speed | 11.81 in/s |
| Print Color Capability | Color |
| Printing Capability | Single Sided |
| Barcode Symbology Supported | UPC-E |
| Language Emulation | Direct Protocol (DP) |
| Media Type | Continuous Label |
| Maximum Roll Diameter | 8.39" |
| Maximum Print Resolution (dpi) | 300 |
| Maximum Print Width | 4.16" |
| Maximum Label Width | 4.49" |
| Maximum Print Length | 86.64" |
| Compliance & Certification | |
|---|---|
| Operating Temperature | 41°F (5°C) - 104°F (40°C) |
| Storage Temperature | 68°F (20°C) - 158°F (70°C) |
| Operating Relative Humidity | 20% - 85% |
| Storage Relative Humidity | 20% - 85% |
| Energy Star | Yes |
| Miscellaneous | |
|---|---|
| Power Cable Localization | US |
