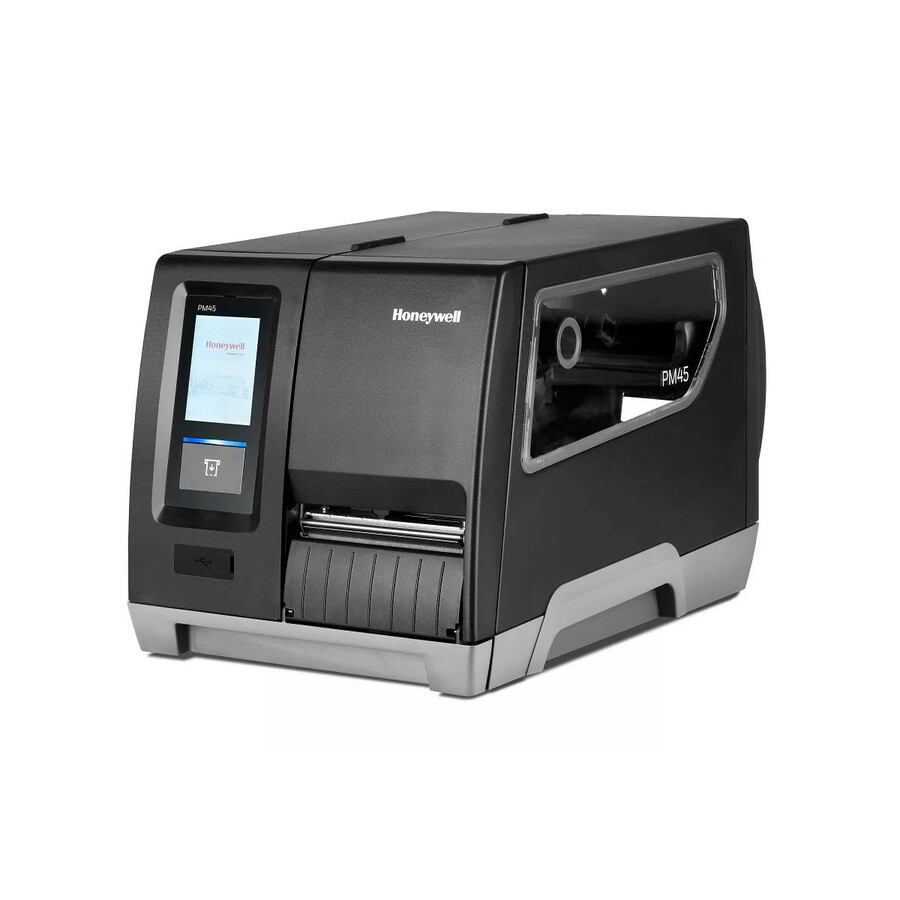

Honeywell PM45 Industrial Direct Thermal Printer - Monochrome - Label Print - Gigabit Ethernet - USB - USB Host - Serial

2,194.99 2,194.99
2,194.99

2,194.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Standard Memory
  • Print Technology
  • Maximum Mono Print Speed
  • Platform Supported
  • Ethernet
  • Print Color Capability
  • Barcode Symbology Supported
  • Features
  • Language Emulation
  • Network Ready
  • USB
  • USB Host
  • Serial Port
  • Ethernet Technology
  • Operating Temperature
  • Storage Temperature
  • Operating Relative Humidity
  • Storage Relative Humidity
  • Media Type
  • Input Voltage
  • Maximum Roll Diameter
  • Energy Star
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Recommended Use
  • Application/Usage
  • Manufacturer Website Address
  • Maximum Print Resolution (dpi)
  • Power Source
  • Maximum Print Width
  • Maximum Label Width
  • Maximum Print Length
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The Honeywell PM45 industrial printer is designed to give businesses the flexibility and precision for high-volume printing. The PM45 printer's track-and-trace functionality is aimed at improving print efficiency and supply chain transparency within a variety of industries, including food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.

Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high-quality prints for barcodes, texts, and images, even on small electronic components and medical device labels.

As a highly connected industrial printer, the PM45 is packed with enhanced WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer's versatility allows the user to incorporate RFID, parallel, industrial, and applicator interfaces to address unpredictable future business needs. To help your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system, whether it is cloud-based or on a local server.

Embedded with Honeywell's Smart Parse software, the PM45 allows for quick position changes, sizing of objects and barcodes, or font type on labels, without the need for backend system changes or programming skills. With Honeywell's Operational Intelligence software, users can remotely manage and monitor the PM45 printer's diagnostics and output performance. The PM45 supports a wide range of media - including ink-in and ink-out ribbons with a 1-inch core size - enhancing the time between media resupplies.

The PM45 printer is an ideal replacement for existing Honeywell or mixed printers, especially with Honeywell's firmware platform supporting multiple print languages. A rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement helps minimize downtime and maintenance needs.

  • A smart and inexpensive solution to print temporary documents
  • 203 maximum print resolution (dpi) for better reliance and added usability
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • Save time and money for your business by using one printer for all your employees
  • 4.49" maximum label width to easily accommodate your needs with added productivity
  • Supports gap media type for maximum feasibility and better accommodation of your requirements
  • Direct Thermal Printer with industrial application/usage provides dependable printing solution with added productivity
  • Rugged feature for better reliance and usability
  • Comes with 256 MB standard memory for timely printing with added reliability
Brand
Brand Honeywell International
Memory / RAM
Standard Memory 256 MB
Power & Battery
Input Voltage 230 V AC
Power Source AC Supply
Networking & Connectivity
Ethernet Yes
Network Ready Yes
USB Ports
USB Yes
USB Host Yes
General Features
Manufacturer Honeywell International, Inc
Recommended Use Label Print
Misc Ports
Serial Port Yes
Printer/Scanner/Fax Specs
Print Technology Direct Thermal
Maximum Mono Print Speed 13.78 in/s
Print Color Capability Monochrome
Barcode Symbology Supported GM1724
Language Emulation Direct Protocol (DP)
Media Type Label
Maximum Roll Diameter 8.39"
Maximum Print Resolution (dpi) 203
Maximum Print Width 4.25"
Maximum Label Width 4.49"
Maximum Print Length 15.75 ft
Compliance & Certification
Operating Temperature 41°F (5°C) - 104°F (40°C)
Storage Temperature -4°F (-20°C) - 158°F (70°C)
Operating Relative Humidity 20% - 85%
Storage Relative Humidity 5% - 90%
Energy Star Yes
