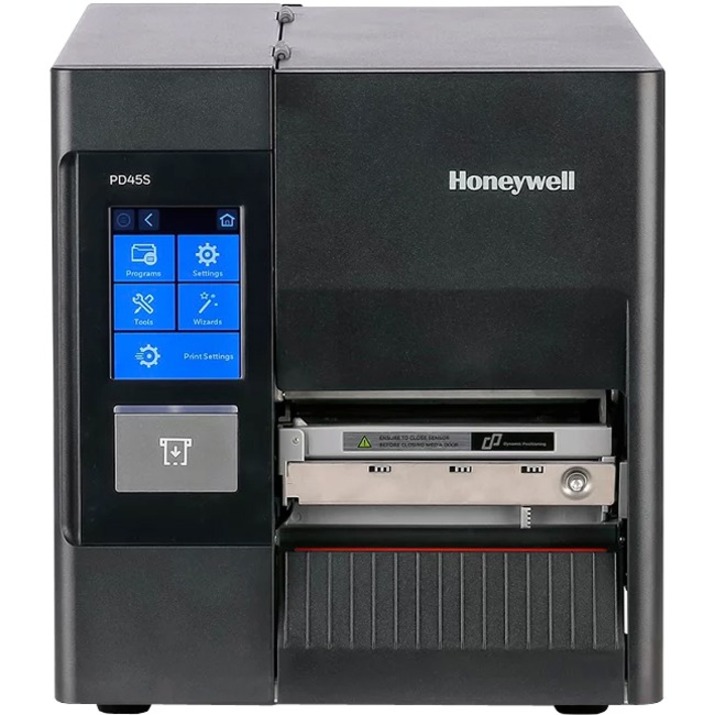

Uniquely designed using minimum internal mechanical parts and an all-metallic frame structure, PD45S is sturdy and durable. This gives our printer a tough, compact, and sleek appearance, suitable for use in a wide range of settings & applications.
The PD45S runs on Arm Cortex-A7 / 800Mhz processor, 128M memory and 128M DDR3 SDRAM. It features a sophisticated industrial print head which supports both direct thermal and thermal transfer printing modes. Honeywell's patented dual sensor positioning technology supports a dynamic positioning function that ensures a minimum label height of 5mm and vertical position accuracy of 0.5mm. Two sets of adjustable pressure bars and double media guides ensures accurate paper feeding and help to avoid ribbon wrinkles & printing dirt.
Thanks to a very ergonomic design, the print head can be easily switched out and replaced. The front sensor that ensures accurate printing can also be easily removed to facilitate cleaning and replacement of the rubber roller. The PD45S supports multiple printer command languages such as FP/DP/IPL/ZPL/DPL, one-key installation of printer driver and easy windows configuration.
The PD45S comes with a rich selection of accessories and supports wireless network interface card, parallel interface card, labeling machine interface card, industrial GPIO and serial interface card. It also has peeling, rewinding and cutting assemblies to cope with a wide range of application scenarios.
- A better-quality solution to print permanent-use documents
- 203 maximum print resolution (dpi) for better reliance and added usability
- Monochrome print color capability to meet your printing requirements with maximum efficiency
- Delivers high-speed, hassle-free labeling solution for your business needs
- Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
- 4.49" maximum label width for dependable, desired results
- Supports label media type for maximum feasibility and better accommodation of your requirements
- Effectively assists in moving the production order to the warehouse, and contains relevant item information to ensure maximum dependability
- Ergonomic feature for better reliance and usability
- 3.5" screen size offers maximum convenience with added efficiency
| Brand | |
|---|---|
| Brand | Honeywell International |
| Screen / Display | |
|---|---|
| Screen Size | 3.5" |
| Display Screen | Yes |
| Display Screen Type | LCD |
| Power & Battery | |
|---|---|
| Power Source | AC Supply |
| Networking & Connectivity | |
|---|---|
| Ethernet | Yes |
| Network Ready | Yes |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Host | Yes |
| General Features | |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Recommended Use | Label Print |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Print Technology | Thermal Transfer |
| Maximum Mono Print Speed | 9.84 in/s |
| Print Color Capability | Monochrome |
| Barcode Symbology Supported | GM1724 |
| Media Sensor | Label Taken Sensor |
| Language Emulation | Fingerprint |
| Media Type | Continuous Paper |
| Maximum Roll Diameter | 3.15" |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Width | 4.25" |
| Maximum Label Width | 4.49" |
| Media Thickness | 10 mil |
| Maximum Print Length | 15.75" |
| Compliance & Certification | |
|---|---|
| Operating Temperature | 41°F (5°C) - 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 158°F (70°C) |
| Operating Relative Humidity | 20% - 85% |
