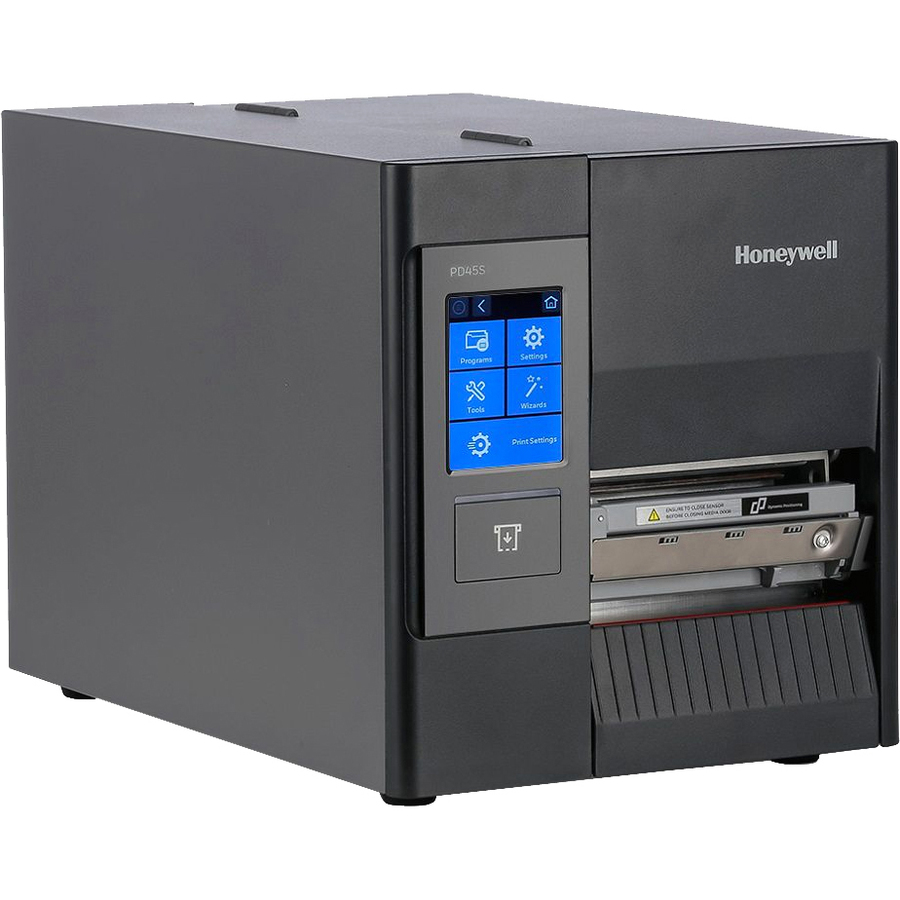

Uniquely designed using minimum internal mechanical parts and an all-metallic frame structure, PD45S is sturdy and durable. This gives our printer a tough, compact, and sleek appearance, suitable for use in a wide range of settings & applications.
The PD45S runs on Arm Cortex-A7 / 800Mhz processor, 128M memory and 128M DDR3 SDRAM. It features a sophisticated industrial print head which supports both direct thermal and thermal transfer printing modes. Honeywell's patented dual sensor positioning technology supports a dynamic positioning function that ensures a minimum label height of 5mm and vertical position accuracy of 0.5mm. Two sets of adjustable pressure bars and double media guides ensures accurate paper feeding and help to avoid ribbon wrinkles & printing dirt.
Thanks to a very ergonomic design, the print head can be easily switched out and replaced. The front sensor that ensures accurate printing can also be easily removed to facilitate cleaning and replacement of the rubber roller. The PD45S supports multiple printer command languages such as FP/DP/IPL/ZPL/DPL, one-key installation of printer driver and easy windows configuration.
The PD45S comes with a rich selection of accessories and supports wireless network interface card, parallel interface card, labeling machine interface card, industrial GPIO and serial interface card. It also has peeling, rewinding and cutting assemblies to cope with a wide range of application scenarios.
- A better-quality solution to print permanent-use documents
- 203 maximum print resolution (dpi) for your convenience and easy usage
- The printer is capable of printing sharp and detailed monochrome documents quickly
- Delivers high-speed, hassle-free labeling solution for your business needs
- Save time and money for your business by using one printer for all your employees
- 4.49" maximum label width for your convenience and feasible usability
- Supports label media type for maximum feasibility and better accommodation of your requirements
- Thermal Transfer Printer with industrial application/usage provides dependable printing solution with added productivity
- Ergonomic feature for maximum efficiency and convenience
| Brand | |
|---|---|
| Brand | Honeywell International |
| Power & Battery | |
|---|---|
| Power Source | AC Supply |
| Networking & Connectivity | |
|---|---|
| Ethernet Controller Manufacturer | Yes |
| Ethernet | Yes |
| Network Ready | Yes |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Host | Yes |
| Size / Dimensions | |
|---|---|
| Maximum Height Adjustment (Above) | 10.6" |
| Maximum Recommended User Height | Label Print |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Recommended Use | Label Print |
| Misc Ports | |
|---|---|
| Number of Serial Ports (External) | Yes |
| Optional Connectivity | Wireless LAN |
| Printer/Scanner/Fax Specs | |
|---|---|
| Print Technology | Thermal Transfer |
| Maximum Mono Print Speed | 9.84 in/s |
| Print Color Capability | Monochrome |
| Barcode Symbology Supported | GM1724 |
| Media Sensor | Gap Sensor |
| Language Emulation | ZPL |
| Media Type | Continuous Paper |
| Maximum Roll Diameter | 3.15" |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Width | 4.25" |
| Maximum Label Width | 4.49" |
| Media Thickness | 10 mil |
| Maximum Print Length | 15.75" |
| Compliance & Certification | |
|---|---|
| Operating Temperature | 41°F (5°C) - 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 158°F (70°C) |
| Operating Relative Humidity | 20% - 85% |
| Brand | Honeywell International, Inc |
| MPN | PD45S0C0010000200 |
| Unit Count | 1 Units |
