VALUE PRICED PROXIMITY CARD READER

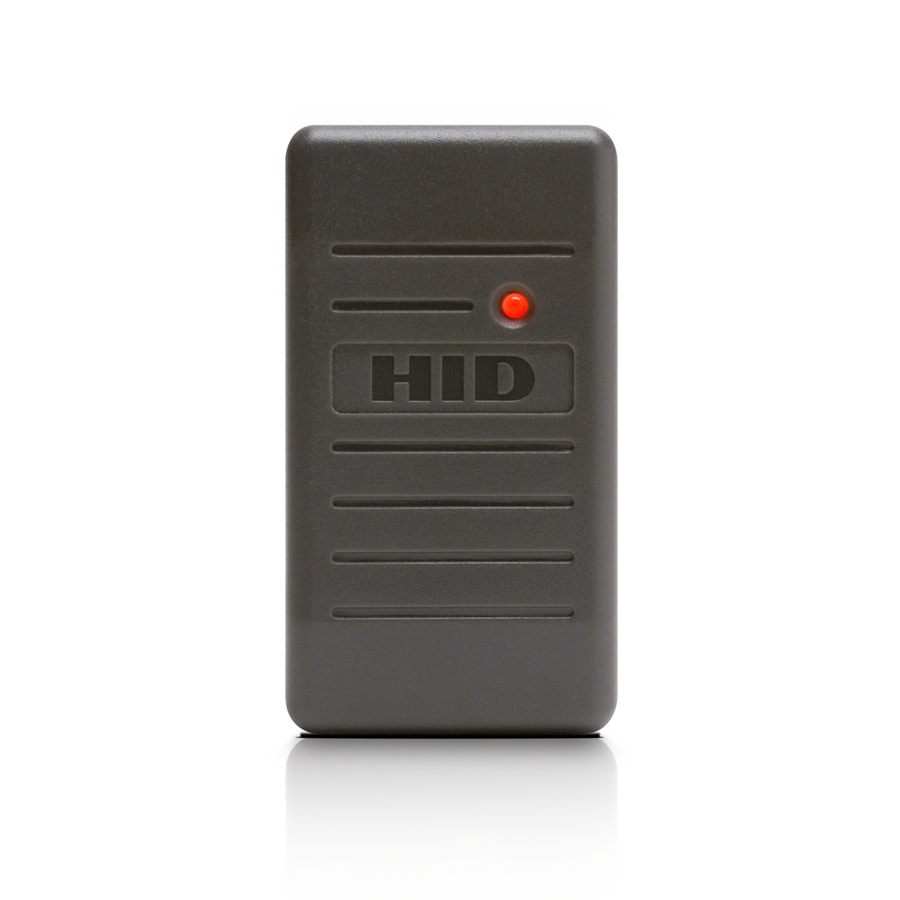

HID's ProxPoint® Plus reader combines multiple configuration options with an attractive, inconspicuous design and economical price. Its secure potted electronics are ideal for both indoor and outdoor applications.
HID's ProxPoint® Plus reader combines multiple configuration options with an attractive, inconspicuous design and economical price. Its secure potted electronics are ideal for both indoor and outdoor applications.
- Features a beeper and multicolor LED which can be host-and/or locally controlled.
- Enables various beeper and LED configurations, depending on individual site requirements.
- Can read HID cards with formats up to 85 bits.
- Designed for mounting directly onto metal with no change in read range performance.
- Available with either Wiegand or Clock-and-Data (magnetic stripe data) output.
- Compatible with all standard access control systems.
- Aesthetic design available in two cover designs and in four colors to match any decor.
- Includes multilingual installation manual.
- Options - Custom label and custom embossing in housing
- Easily Interfaced - Wiegand output model interfaces with all existing Wiegand protocol access control systems. Clock-andData (magnetic stripe) model interfaces with most systems that accept magnetic stripe readers.
- Indoor/outdoor Design - Sealed in a rugged, weatherized polycarbonate enclosure designed to withstand harsh environments, providing reliable performance and a high degree of vandal resistance.
- Diagnostics - On reader power-up, an internal self-test routine checks and verifies the setup configuration, determines the internal or external control of the LED and beeper, and initializes reader operation. An additional external loop-back test allows for the reader outputs and inputs to be verified without the use of additional test equipment.
- Security - Recognizes card formats up to 85 bits, with over 137 billion unique codes.
- Audiovisual Indication - When a proximity card is presented to the reader, the red LED flashes green and the beeper sounds. T
| Brand | |
|---|---|
| Brand | HID Global Corporation |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Cable |
| Size / Dimensions | |
|---|---|
| Form Factor | Mullion Mount |
| General Features | |
|---|---|
| Maximum Operating Range | 3" |
| Manufacturer | ASSA ABLOY |
| Misc Ports | |
|---|---|
| Host Interface | Wiegand |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Supported | Contactless |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
