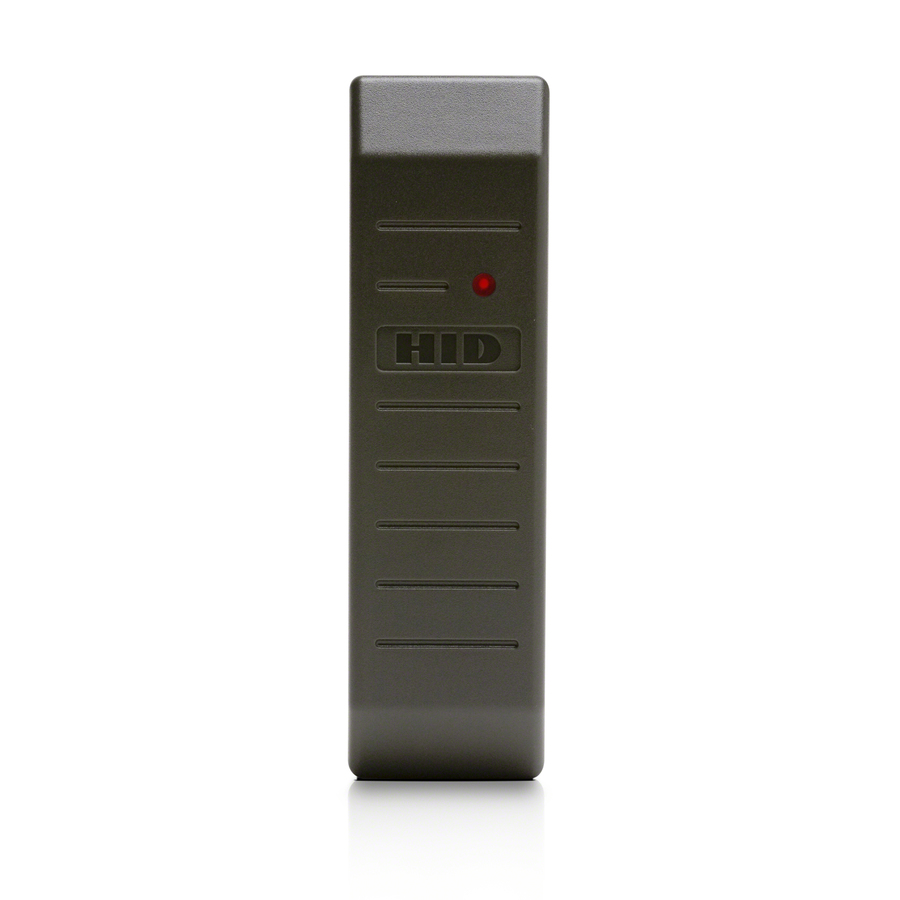

MULLION MOUNT PROXIMITY CARD READER
The MiniProx® proximity card reader's potted electronics enhance the security of the reader. The slim, attractive design is ideal for indoor or outdoor mounting.
- Accepts 5 to 16 volts, meeting most voltage requirements.
- Available with Wiegand or Clock-and-Data interface. �
- Allows easy upgrade from magstripe to a proximity reader; no rewiring or pulling
- of new cable required.
- �Offers high reliability, consistent read-range and low power consumption in an
- easy-to-install package. � Mounts directly onto metal with no change in read range performance. �
- Provides multicolor LED, compatibility with all standard access control systems �
- and internal or host control of LED and beeper. �
- Includes multilingual installation manual.
- Options - LED and beeper operation and custom label.
- Easily Interfaced - Wiegand output model interfaces with all existing Wiegand protocol access control systems. Clock-and-Data (magnetic stripe) model interfaces with most systems that accept magnetic stripe readers.
- Indoor/outdoor Design - Sealed in a rugged, weatherized polycarbonate enclosure designed to withstand harsh environments, providing reliable performance and a high degree of vandal resistance
- Diagnostics - On reader power-up, an internal self-test routine checks and verifies the setup configuration, determines the internal or external control of the LED and beeper, and initializes reader operation. An additional external loop-back test allows for the reader outputs and inputs to be verified without the use of additional test equipment.
- Audiovisual Indication - When a proximity card is presented to the reader, the red LED flashes green and the beeper sounds. The multicolor LED and beeper can also be controlled individually by the host system.
- Sec
| Brand | |
|---|---|
| Brand | HID Global Corporation |
| General Features | |
|---|---|
| Maximum Operating Range | 5.50" |
| Manufacturer | ASSA ABLOY |
| Misc Ports | |
|---|---|
| Host Interface | Wiegand |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
