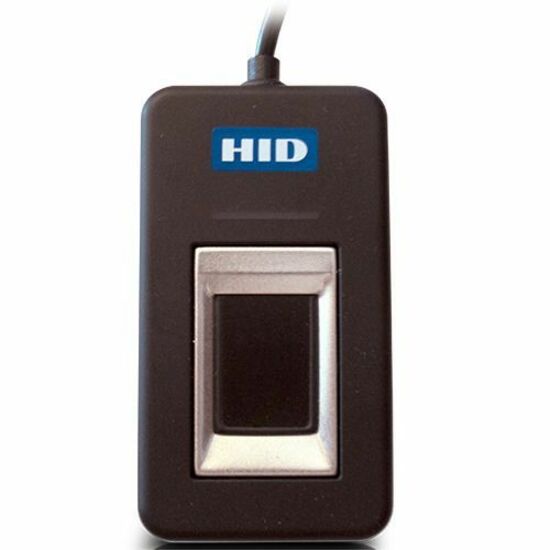

The EikonTouch TC510 USB capacitive fingerprint reader provides quick and reliable biometric authentication.
The EikonTouch TC510 uses patented technology to capture fine print details resulting in the ability to capture a wide range of fingerprints.
The TC510 fingerprint reader provides on-board processing for image capture and template generation, matching and storage. This reader also protects sensitive data to and from the device using encryption up to AES-256.
The SteelCoat surface of the TC510 provides added sensor durability which is ideal for high traffic and multi-user applications.
The DigitalPersona® Biometric Software Developer Kit (SDK) provides flexible APIs to enable fast integration of the EikonTouch TC510 into a broad range of applications. Multiple cable lengths and connector configurations are available to meet your use case requirements.
The EikonTouch TC510 fingerprint reader is a USB peripheral, perfect for individual desktop users. Its modern, compact design conserves desk space.
In addition to the standard USB desktop versions, we're also offering the Lightweight (LW) version. The LW version weighs only 23 grams (vs. 124 grams on standard version) with a very short cable (only 5mm), an ideal fit for mobile applications.
This form factor works well in a wide range of vertical markets including government, point-of sale and other logical access control applications. Superior accuracy and usability are a result of the improved finger guide ergonomics and the LED which is located just above the sensor to provide user feedback during the biometric capture and matching process. The TC510 housing is IP65 rated to protect against dust and moisture penetration.
Whether you are an enterprise customer or a system integrator, our biometric identity verification solutions provide a naturalextension to your security system and applications.
| Brand | |
|---|---|
| Brand | ASSA ABLOY |
| Screen / Display | |
|---|---|
| Number of Pixels | 256 x 360 |
| Power & Battery | |
|---|---|
| Input Voltage | 5 V DC |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Standard | USB 2.0 |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| Security | |
|---|---|
| Maximum Fingerprint Storage C | 100 |
| Authentication Method | Finger |
| Encryption Standard | AES |
| General Features | |
|---|---|
| Durability | Dust Resistant |
| Sensor Type | Capacitive Sensor |
| Manufacturer | ASSA ABLOY |
| Printer/Scanner/Fax Specs | |
|---|---|
| Image Resolution (dpi) | 508 |
