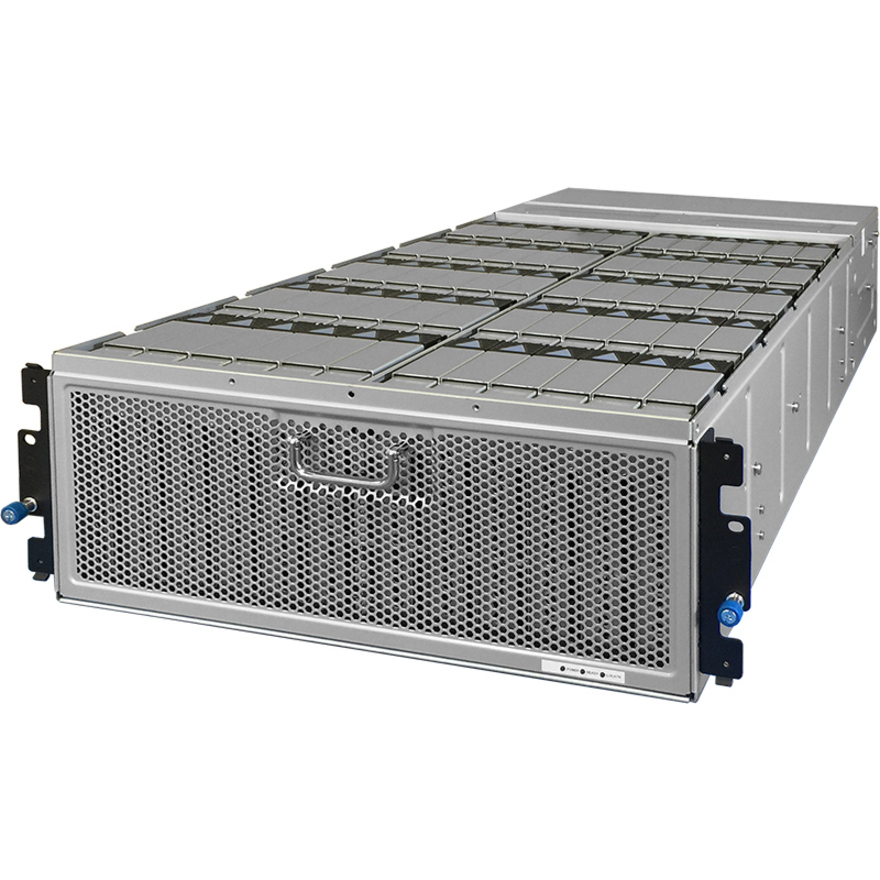

When data centers need storage expansion that delivers low power and high capacity with high-availability, they rely on the HGST 4U60G2 Storage Platform. This high density, scalable, and cost-effective design includes up to 60 Ultrastar® 3.5-inch drive modules in a 4U enclosure, supports up to 8 hosts with SAS 12Gb/s performance, and delivers enterprise-class serviceability with hot-swappable components.
This integrated platform is qualified, tested and certified to support a broad range of HGST HDDs. It's available with SAS drives for high-availability (HA) applications, with SATA drives for cost-optimized applications, and can be configured with up to twelve (12) 800GB SSDs to create separate performance tiers within the platform.
- 5-year limited warranty
- Microsoft certified for Windows Server 2012, 2012R2
- SCSI Enclosure Services (SES-3)
- Cable Management Arm (CMA) eliminates tangled cables during servicing of hot-swappable CRUs
- Hot-swappable components: two power supplies with integrated fans, drive modules, and IO Modules
- Fully compliant with 12Gb/s SAS 3 interconnect
- Supports up to 4 storage enclosures for daisy-chaining
- Available with 512e or 4Kn sector size (by part number)
- Available with SAS drives for HA application or with SATA drives for cost-optimized applications
- Hybrid capability: can be configured with SSDs to create separate performance tiers within the platform
| Brand | |
|---|---|
| Brand | Western Digital Corporation |
| Storage | |
|---|---|
| Number of Solid State Drive I | No |
| Number of Hard Drives Install | 60 |
| Number of Hard Drives Support | 60 |
| Total Hard Drive Capacity Ins | 720 TB |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| General Features | |
|---|---|
| Cooling Fan | Yes |
| Manufacturer | Western Digital Corporation |
| Drive Bays | |
|---|---|
| Number of Solid State Drive S | 12 |
| Number of Total Expansion Bays | 60 |
| Number of 3.5" Bays | 60 |
| Misc Ports | |
|---|---|
| Host Interface | 12Gb/s SAS |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
