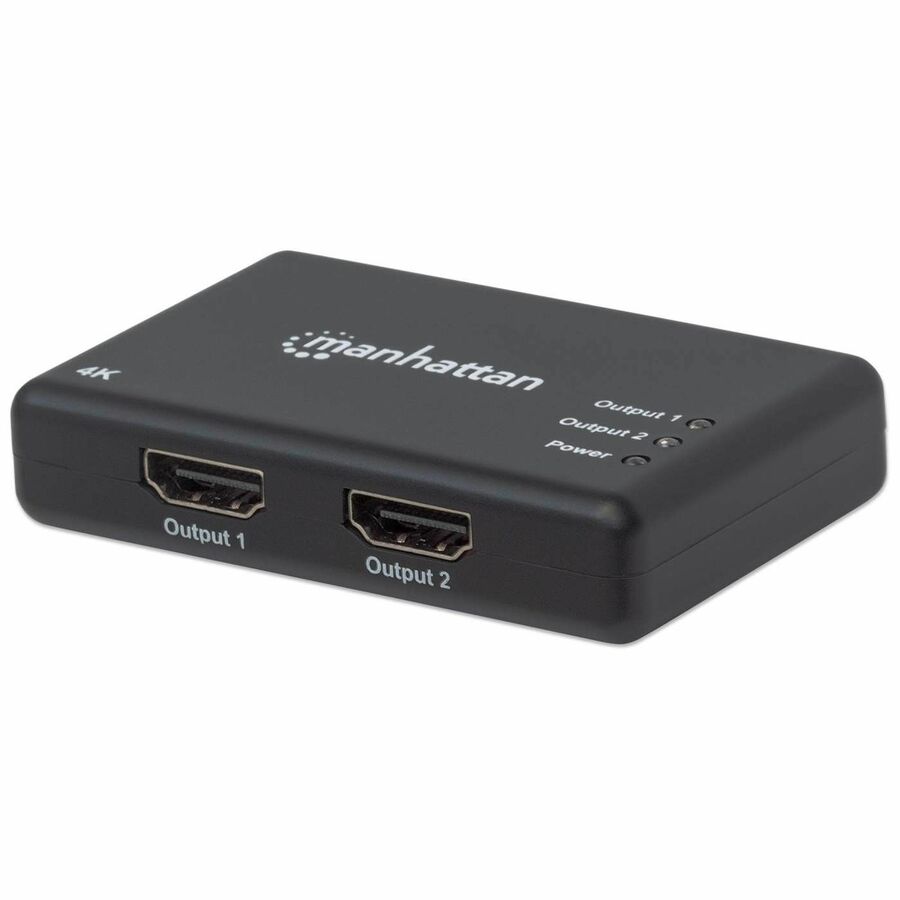

HDMI Splitter 2-Port , 4K@30Hz, Displays output from x1 HDMI source to x2 HD displays (same output to both displays), AC Powered (cable 0.9m), Black, Three Year Warranty

$ 28.17 $ 28.17
$ 28.17

$ 28.17 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • HDMI Out
  • HDMI In
  • Number of HDMI Outputs
  • Number of HDMI Inputs
  • Connector Plating
  • Product Material
  • Maximum Video Resolution
  • Input Voltage
  • Maximum Operating Distance
  • Maximum Video Bandwidth
  • Environmentally Friendly
  • Environmental Compliance
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF

Easily distribute a single Ultra-High-Definition (UHD) signal to multiple displays

The Manhattan 4K 2-Port HDMI Splitter with built-in booster streams a 4K HDMI signal from a single UHD source to up to two UHD displays.

Flexible Solution for Many A/V Applications

Ideal for trade shows, classrooms, video conferencing, home theater, presentations and retail applications, the Manhattan 4K HDMI Splitter features a built-in booster for added signal strength. It’s a good choice for splitting and distributing a synchronous signal to multiple 4K HDMI displays when source equipment is remotely stored in a secured room or cabinet. Cascade multiple units up to three levels to output HDMI video/audio on additional displays in widely distributed applications.

Quality Construction and Easy Installation

Full compliance with HDMI, HDCP 1.4 and DVI 1.0 ensures that the Manhattan HDMI Splitter can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the AC power adapter, and this affordable UHD solution is complete — no software/hardware configuration or complicated settings required.

  • Gold-plated contacts for corrosion-free connections
  • AC powered with Plug and Play installation; no special setup or remote required
  • Up to three splitters may be cascaded to support four 4K displays
  • HDCP compliant
  • Supports 48-bit Deep Color (12-bits per channel) and xvYCC (x.vColor)
  • Supports LPCM, DTS Digital, DTS-HD Master Audio and Dolby TrueHD audio
  • Supports compressed DTS-HD Master Audio and 7.1 surround sound as well as Dolby TrueHD and uncompressed LPCM 8 channel audio
  • 4K@30Hz resolution, full 3D video and Deep Color
  • Supports video amplifier bandwidth up to 340 MHz, 3.4 Gbps per channel (10.2 Gbps total) for 4Kx2K displays
  • Duplicates an Ultra-High-Definition (UHD) digital audio/video signal for up to two UHD HDMI displays
Brand
Brand IC INTRACOM
GPU / Graphics
Maximum Video Bandwidth 340 MHz
Power & Battery
Input Voltage 5 V DC
HDMI Ports
HDMI Out Yes
HDMI In Yes
Number of HDMI Outputs 2
Number of HDMI Inputs 1
Camera / Webcam
Maximum Video Resolution 4096 x 2160
General Features
Maximum Operating Distance 49.21 ft
Manufacturer IC INTRACOM
Cables
Connector Plating Gold
Compliance & Certification
Environmentally Friendly Yes
Manhattan 4K 2-Port HDMI Splitter - 4096 x 2160 - 340 MHzMaximum Video Bandwidth - 49.21 ft Maximum Operating Distance - 1 x HDMI In - 2 x HDMI Out - Gold Plated - Plastic
