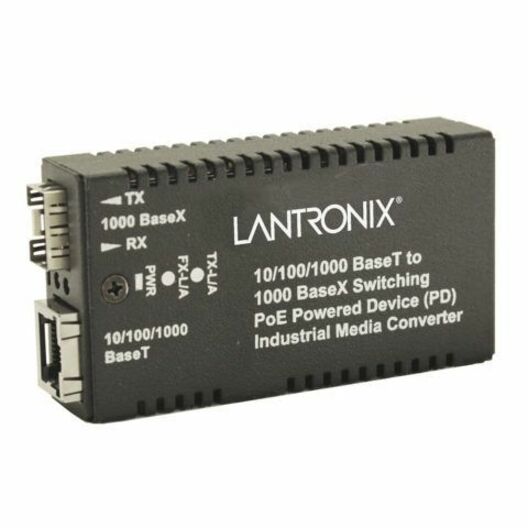

The M/GE-ISW-SFP-01-PD is a hardened Gigabit Ethernet Mini media converter that provides a cost effective media conversion between 10/100/1000Base-T ports and 100/1000Base-X ports for hardened or outdoor 10/100/1000 environments. The device is powered through the RJ-45 copper port in compliance with IEEE 802.3af standards, when connected to power sourcing equipment, meaning no separate power connection is required. With its supported operating temperature range of -40°C to +75°C, the Mini offers a space saving alternative for converting copper to fiber in extreme environments. NDAA Compliant, TAA Compliant
- Jumbo Frame up to 10240 bytes
- DIN Rail clip and Velcro included
- Auto-MDI/MDIX on copper port
- Active Link Pass Through
- Auto-Negotiation
- Fixed Full-Duplex on Fiber
- Unit & Port LEDs allow for quick status information
- IEEE 802.3af PD Power Input from RJ-45 TP interface
| Brand | |
|---|---|
| Brand | Transition Networks |
| Power & Battery | |
|---|---|
| Power Consumption | 1.20 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-X |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of PoE (RJ-45) Ports | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rail-mountable |
| General Features | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Video Ports | |
|---|---|
| DVI | No |
| Misc Ports | |
|---|---|
| Management Port | No |
| Total Number of Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
