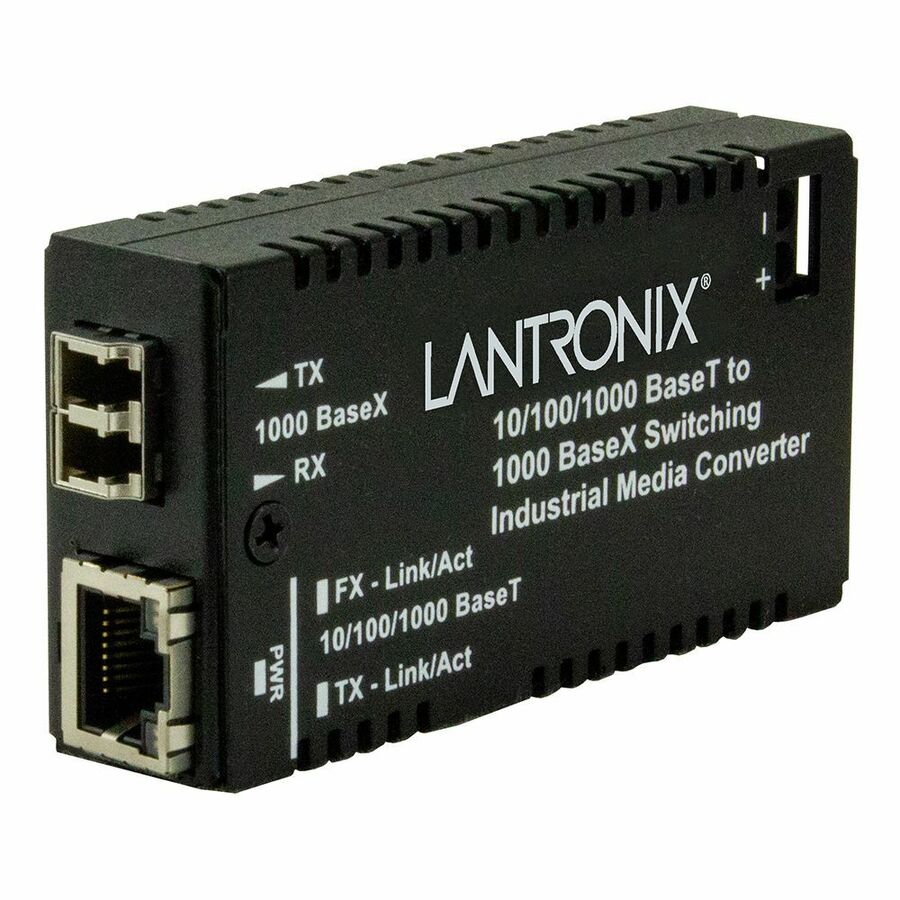

Hardened Mini Gigabit Ethernet Media Converter 10/100/1000Base-T to 1000Base-SX/LX

$ 454.99 $ 454.99
$ 454.99

$ 454.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • USB
  • Network (RJ-45)
  • DVI
  • Fiber Mode Supported
  • Management Port
  • Total Number of Ports
  • SC Port Type
  • Number of SC Ports
  • Form Factor
  • Ethernet Technology
  • Media Type Supported
  • Maximum Distance Supported
  • TAA Compliant
  • Certifications & Standards
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

The M/GE-ISW Series is an hardened Gigabit Ethernet Mini media converter that provides cost effective media conversion between 10/100/1000Base-T ports and 1000Base-SX/LX ports for hardened or outdoor environments. With its supported operating temperature range of -40°C to +75°C, the Mini offers a space saving alternative for converting copper to fiber in extreme environments. NDAA Compliant, TAA Compliant

  • Overload Current Protection
  • Reverse Polarity Protection
  • DIN Rail clip and Velcro included
  • Wall mount bracket sold separately
  • Multiple mounting options
  • Includes barrel connector pig-tail cable
  • If the voltage of your power source doesn't match the device input power, external power supplies are available
  • Supports DC and AC Input Power via terminal block
  • Active Link Pass Through
  • Jumbo Frame up to 10240Bytes
  • Fixed Full-Duplex on Fiber
  • Auto-MDI/MDIX on copper port
  • Auto-Negotiation
  • Unit & Port LEDs allow for quick status information
Brand
Brand Transition Networks
Power & Battery
Power Source Power Supply
Power Consumption 1.20 W
Networking & Connectivity
Network Technology 10/100/1000Base-T
USB Ports
USB No
Ethernet Port
Number of Network (RJ-45) Por 1
Network (RJ-45) Yes
Size / Dimensions
Form Factor Rack-mountable
General Features
Maximum Distance Supported 9.99 km
Manufacturer Lantronix, Inc
Video Ports
DVI No
Misc Ports
Management Port No
Total Number of Ports 2
SC Port Type Duplex
Number of SC Ports 1
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Cables
Fiber Mode Supported Single-mode
Compliance & Certification
TAA Compliant Yes
