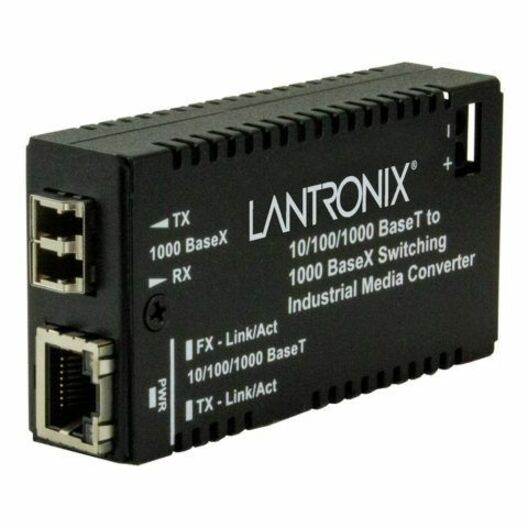

The M/GE-ISW Series is an hardened Gigabit Ethernet Mini media converter that provides cost effective media conversion between 10/100/1000Base-T ports and 1000Base-SX/LX ports for hardened or outdoor environments. With its supported operating temperature range of -40°C to +75°C, the Mini offers a space saving alternative for converting copper to fiber in extreme environments. NDAA Compliant, TAA Compliant
- Reverse Polarity Protection
- Wall mount bracket sold separately
- Overload Current Protection
- Multiple mounting options
- DIN Rail clip and Velcro included
- Includes barrel connector pig-tail cable
- Supports DC and AC Input Power via terminal block
- If the voltage of your power source doesn't match the device input power, external power supplies are available
- Active Link Pass Through
- Jumbo Frame up to 10240Bytes
- Fixed Full-Duplex on Fiber
- Auto-MDI/MDIX on copper port
- Auto-Negotiation
- Unit & Port LEDs allow for quick status information
| Brand | |
|---|---|
| Brand | Transition Networks |
| Power & Battery | |
|---|---|
| Power Source | AC Adapter |
| Power Consumption | 1.20 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-TX |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| General Features | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Video Ports | |
|---|---|
| DVI | No |
| Misc Ports | |
|---|---|
| Management Port | No |
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Number of SC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Optic Cable Core/Claddi | 50/62.5/125 µm |
| Fiber Mode Supported | Multi-mode |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
