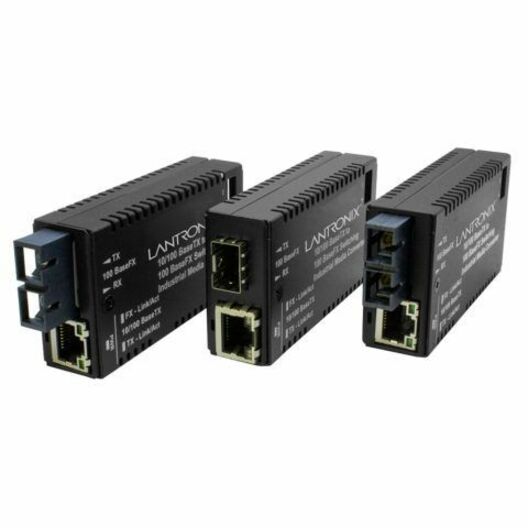

The ME-ISW Series is a hardened Fast Ethernet Mini media converter that provides a cost effective, plug-and-play media conversion between 10/100Base-TX ports and 100Base-FX ports for hardened or outdoor 10/100 environments. With its supported operating temperature range of -40°C to 75°C, the Mini offers a space saving alternative for converting copper to fiber in extreme environments. NDAA Compliant, TAA Compliant
- DIN Rail clip and velcro included
- Wall mount bracket sold separately
- Multiple mounting options:
- No configuration required
- Available with LC, ST or SC fiber interfaces and available for multimode or single mode fiber
- Small mechanical size allows use in enclosures with space constraints
- Reverse Polarity Protection
- Easily integrate fiber into industrial, hardened, or outdoor locations to reach devices at the edge of the network
- Overload Current Protection
- Includes barrel connector pig-tail cable
- DC and AC power inputs via terminal block
- If the voltage of your power source doesn't match the device input power, external power supplies are available
- Far-End-Fault FEF
- Active Link Pass Through on SFP version
- Automatic Link Restoration
- Auto-MDI/MDIX
- Link Pass Through
- Unit and Port LEDs provide quick status
- Fixed Full-Duplex on fiber
| Brand | |
|---|---|
| Brand | Transition Networks |
| Power & Battery | |
|---|---|
| Power Source | Power Supply |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100Base-FX |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rail-mountable |
| General Features | |
|---|---|
| Maximum Distance Supported | 0.10 km |
| Manufacturer | Lantronix, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
