Our Discovery Series offers a cost-effective 4K extension with flexible USB and HDMI capabilities for software video conferencing and audio extraction. These kits were designed specifically to address signal extension for multiple participants in classrooms, huddle spaces, or conference rooms. The Discovery series includes an HDBaseT Wall Plate Transmitter, and Receiver kit that pairs natively with soft-codec video conferencing applications such as Zoom, Teams, Skype, WebEx and more.
With both US and UK transmitter wallplate options available, Discovery makes collaboration easy and fluid with support for resolutions up to 4K

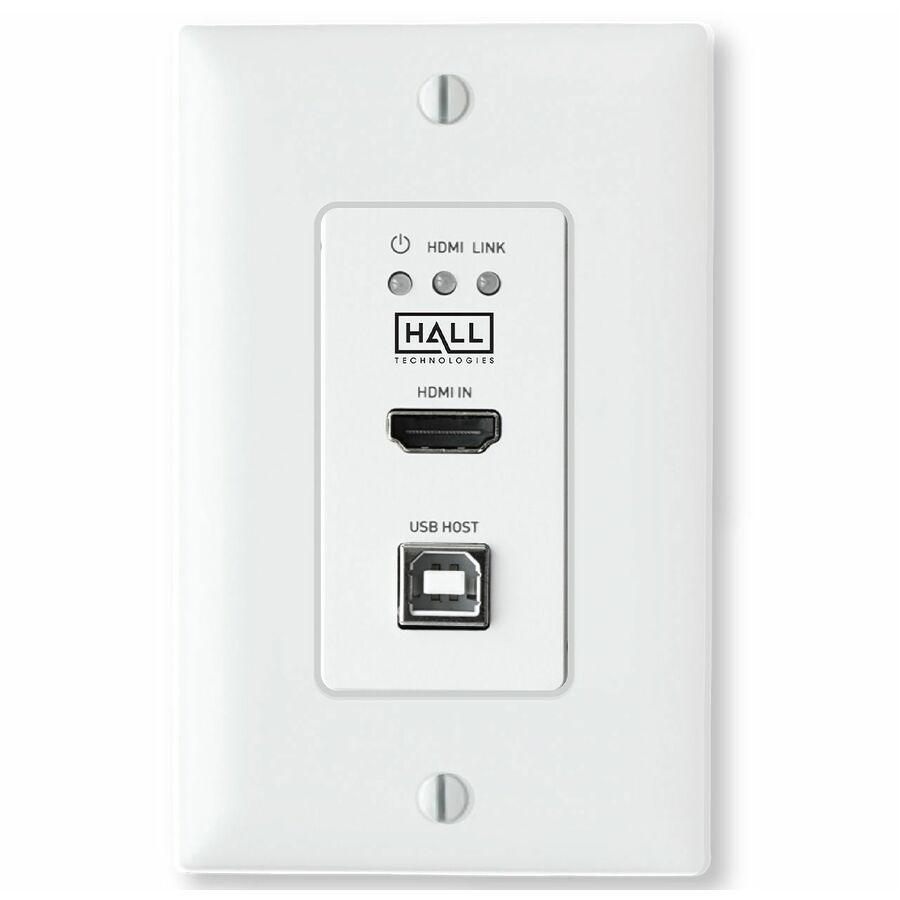

Discovery 1 is a single gang wall-plate transmitter and receiver extender kit. It supports resolutions up to 4K@60 4:2:0 8bit, and HDCP 2.2 compatibility. It can transmit 4K signal up to 35m/115ft via a single Cat 5e/6 cable and up to 40m/131ft via a single Cat 6a/7 cable. With oneway PoH function, the transmitter can be powered by the receiver. The transmitter also features USB pass-through and RS232 pass-through over HDBT, and it also supports firmware upgrading through RS232 port.
- Video Extender Transmitter is all you need for dependable and productive audio/video transmission
- HDMI in allows convenient transfer of content and data to video extender transmitter to ensure maximum dependability
- USB connectivity allows dependable and efficient power supply with maximum productivity
- Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
- The DSCV1-70-TX video extender transmitter provides plenty of freedom with wired connectivity
- 1 input devices supported for maximum productive usability
- 131.23 ft maximum operating distance for feasible operation and optimal coverage
- 4K graphics mode for an immersive and sharp viewing experience
- Wall Plate form factor for added reliability and dependability
| Brand | |
|---|---|
| Brand | Hall Technologies |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 1 |
| HDMI Ports | |
|---|---|
| HDMI In | Yes |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Plate |
| General Features | |
|---|---|
| Maximum Operating Distance | 131.23 ft |
| Manufacturer | Hall Technologies |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 7 |
