Unmanaged Network Switches

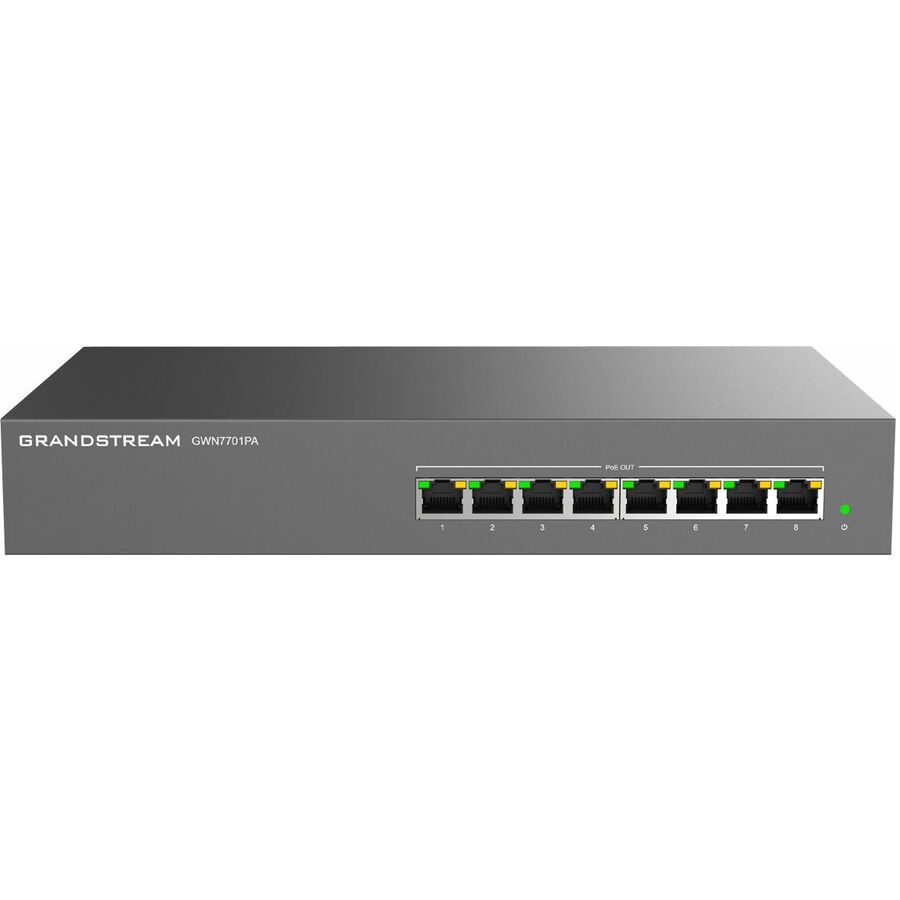

The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to medium businesses.
- 5 and 8 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA)
- Green technology reduces power consumption
- LED Indicators; Per port: Link/Activity/Speed Per device: Power
- Auto MDI/MDIX crossover for all ports
- 802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/ GWN7701PA only)
- Broadcast/Multicast/ Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
- Unlink clear FDB Feature (GWN7701/GWN7701P/ GWN7701PA only)
- QoS - Supports Default Strict Priority when present
- Effectively reduces downtime with improved network performance
- Quickly and easily set up a wired network with 8 networking ports
- PoE+ port to receive data and up to 25.5 W of power on a single cable in places where a power outlet is not available
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- The desktop installation makes it ideal for deployments outside the wiring closet
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
| Brand | |
|---|---|
| Brand | Grandstream Networks |
| Power & Battery | |
|---|---|
| Redundant Power Supply Suppor | No |
| PoE Budget | 145 W |
| Input Voltage | 230 V AC |
| Power Source | Power Adapter |
| Power Consumption | 6.70 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-T |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 8 |
| PoE (RJ-45) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| Compatible Rack Unit | 1U |
| General Features | |
|---|---|
| Manageable | No |
| Maximum Data Transfer Rate | 12.50 MB/s |
| Frequency | 60 Hz |
| Manufacturer | Grandstream Networks, Inc |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 8 x 10/100/1000Base-T Gigabit Ethernet PoE RJ-45 Network Port |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
