Unmanaged Network Switches

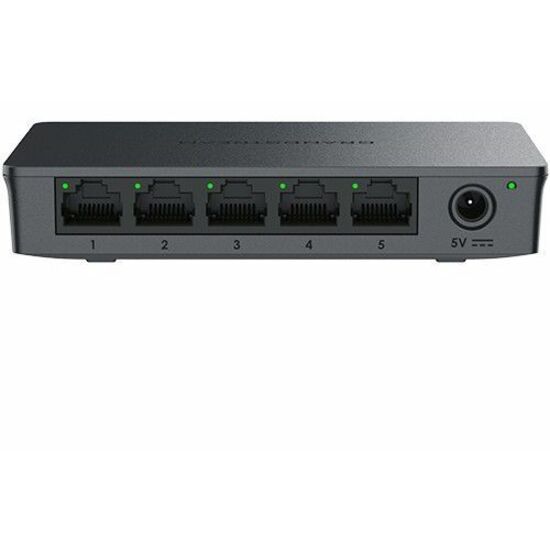

The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to medium businesses.
5/8/16/24/48 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA & GWN7702P)
Green technology reduces power consumption
LED Indicators; Per port: Link/Activity Per device: Power
Auto MDI/MDIX crossover for all ports
802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/ GWN7701PA/GWN7702P only)
Broadcast/Multicast/ Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
Supports long cable connection
QoS - Supports Default Strict Priority when present
- Effectively reduces downtime with improved network performance
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- The desktop installation makes it ideal for deployments outside the wiring closet
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
| Brand | |
|---|---|
| Brand | Grandstream Networks |
| Power & Battery | |
|---|---|
| Power Source | Power Adapter |
| Power Consumption | 1.70 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-T |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 5 |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| General Features | |
|---|---|
| Manageable | No |
| Maximum Data Transfer Rate | 128 MB/s |
| Manufacturer | Grandstream Networks, Inc |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
