OVERVIEW
Infinite Memory Performance
UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
DDR5 Overclocking Up to 9066 MT/s
D5 Bionic Corsa
AI Overclocking For peak performance
AORUS AI
Auto-Overclocking Software by AI model
AI Engine
Advanced AI Overclocking Model
AI Design For MB signal enhancement
AI-Driven PCB Design
Redefining PCB Design with AI
HyperTune BIOS
AI-Driven Advanced BIOS Optimization Technology
Durable Performance
GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.
Comprehensive Thermal
UD motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
2.5GbE LAN
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.
PCIe 5.0 / 4.0 Hardware Design
Featuring PCIe 5.0 x16 slot and PCIe 5.0 / 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0 / 4.0 devices to provide the superior performance.
Hi-Fi Audio
High-End Audio CapacitorsAudio Noise Guard
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.
EZ Debug Zone
Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.
- Supports Intel Core Ultra processors (Series 2)
- Hybrid 8+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive
- : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug
- : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch
- : PCIe x16 Slot with Quick Release Design
- Friendly UI
- : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage
- : 2*M.2 slots, including 1* PCIe 5.0 x4
- M.2 Thermal Guard
- : To Ensure M.2 SSD Performance
- Fast Networking
- : 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity
- : DisplayPort, HDMI
| Brand | |
|---|---|
| Brand | GIGABYTE Technology |
| CPU / Processor | |
|---|---|
| Processor Supported | Core Ultra |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1851 |
| GPU / Graphics | |
|---|---|
| Graphics Controller Manufactu | Intel |
| Graphics Controller Model | HD Graphics |
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 9066 MHz |
| Memory Form Factor | UDIMM |
| Number of Memory Slots | 4 |
| Error Checking | ECC |
| Maximum Memory Supported | 256 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 10 |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 2 Type- | 1 |
| Total Number of Onboard USB P | 7 |
| Number of Onboard USB 2.0 Por | 4 |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 4 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Audio Ports | |
|---|---|
| S/PDIF | Yes |
| Onboard S/PDIF Header | Yes |
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| Size / Dimensions | |
|---|---|
| Form Factor | ATX |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | B860 |
| AI-powered | Yes |
| Controller Type | Serial ATA/600 |
| Manufacturer | GIGABYTE Technology, Inc |
| Brand Compatibility | Intel |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 5 |
| Total Number of PCI Express S | 5 |
| Total Number of Expansion Slots | 5 |
| PCI Express Standard | PCI Express 4.0 |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 2 |
| Number of SATA Interfaces | 4 |
| Miscellaneous | |
|---|---|

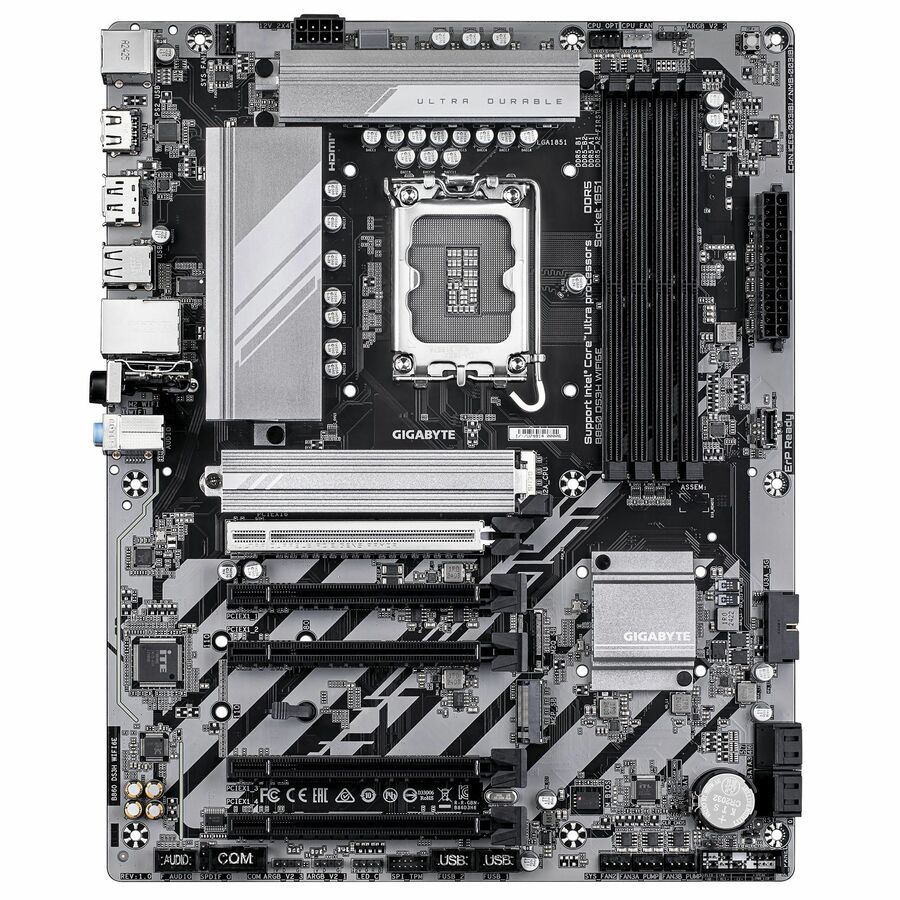

| Product Name | B860 DS3H WIFI6E Gaming Desktop Motherboard |
