Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital VRM Design
The best VRM design ever built with the highest quality components.
- 8+2+2 Phases digital PWM + DrMOS
- Support the latest CPUs, and deliver enhanced system performance and ultimate hardware scalability.
EXPO & XMP Support
DDR5 EXPO & XMP Overclocking Up to 7600 and Beyond*
GIGABYTE is offering a tested and proven platform with extreme memory performance boost.
- Memory overlocking and XMP profile support may vary depending on hardware configuration.
- Please see the complete validated memory support list.
Thermal | Fully Covered MOSFET Heatsink
3X Large Surface
Increased surface area up to 3X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
Real One-piece Build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

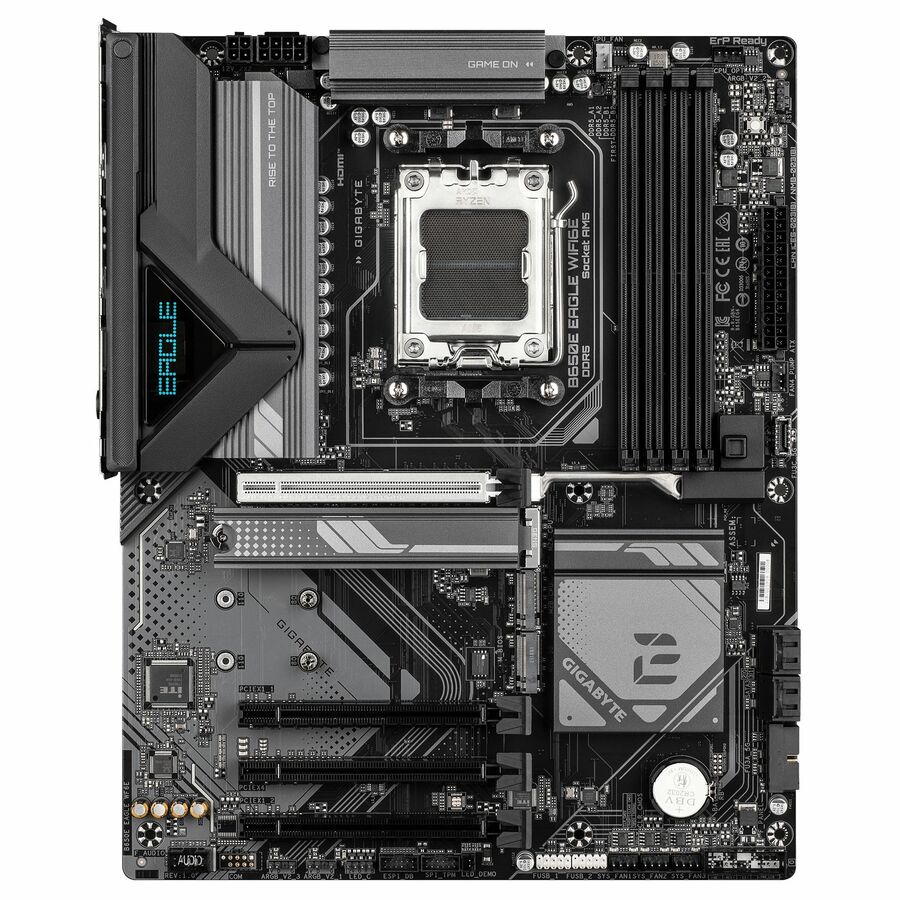

- AMD Socket AM5?Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
- Unparalleled Performance?8+2+2 Phases Digital VRM Solution
- Dual Channel DDR5?4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage?1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard?To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- EZ-Latch Plus : PCIe x16 slots with Quick Release & Screwless Design
- Fast Networks?Wi-Fi 6E 802.11ax & GbE LAN
- WIFI EZ-Plug?Quick and easy design for Wi-Fi antenna installation
- Extended Connectivity?DP, HDMI, Rear USB® 10Gb/s
- Smart Fan 6?Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus?Update BIOS Without Installing the CPU, Memory and Graphics Card
| Brand | |
|---|---|
| Brand | GIGABYTE Technology |
| CPU / Processor | |
|---|---|
| Processor Supported | Ryzen 7 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| GPU / Graphics | |
|---|---|
| Graphics Controller Manufacturer | AMD |
| Graphics Controller Model | Radeon Graphics |
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 4800 MHz |
| Memory Form Factor | UDIMM |
| Number of Memory Slots | 4 |
| Maximum Memory Supported | 256 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 10 |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 2 Type- | 2 |
| Total Number of Onboard USB P | 7 |
| Number of Onboard USB 2.0 Por | 4 |
| Total Number of USB Ports | 9 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| Size / Dimensions | |
|---|---|
| Form Factor | ATX |
| General Features | |
|---|---|
| Chipset Manufacturer | AMD |
| Chipset Model | B650 |
| Controller Type | Serial ATA/600 |
| Manufacturer | GIGABYTE Technology, Inc |
| Brand Compatibility | AMD |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 4 |
| Total Number of PCI Express S | 4 |
| Total Number of Expansion Slots | 4 |
| PCI Express Standard | PCI Express 3.0 |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 3 |
| Number of SATA Interfaces | 4 |
