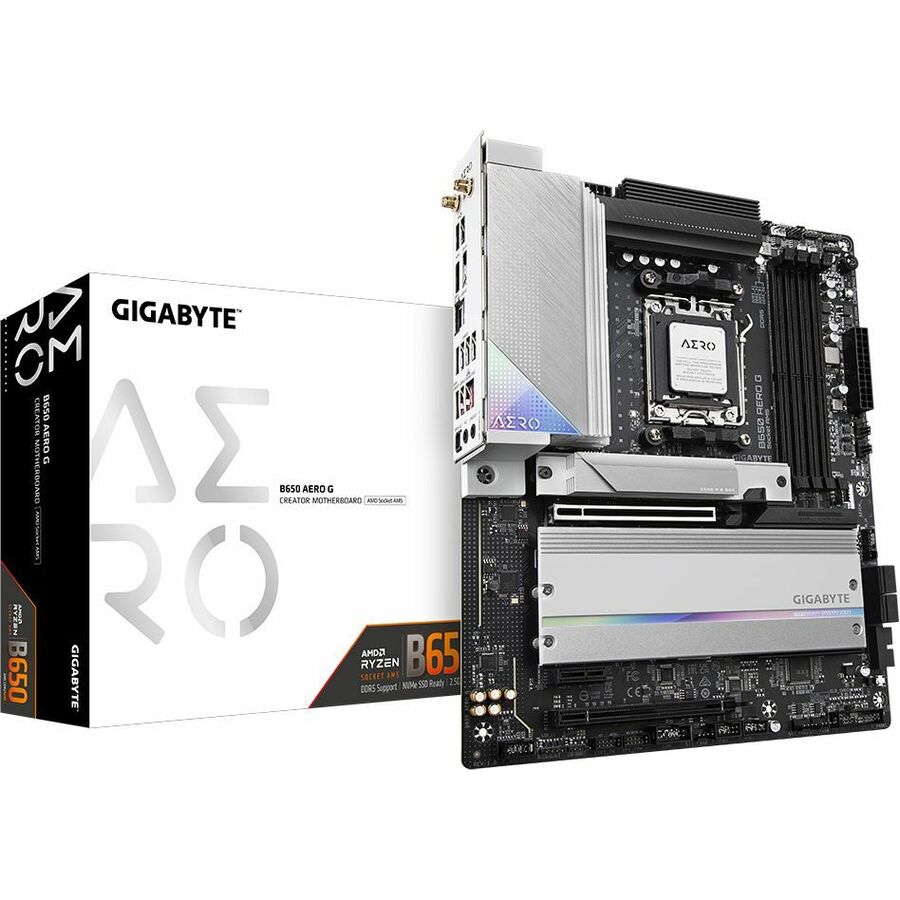

AERO SERIES
AERO Series motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics,and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production.
Simplify Your Connections.
Connected to GIGABYTE VisionLINK port, you can transfer data, video and power charging via a single USB Type-C cable.
AERO series motherboards let you experience the ultimate connectivity and easy access to all your connections.
Intel 2.5GbE LAN
Intel 2.5Gb Ethernet provides an immediate boost to overall network performance, smooth video editing and fast data transfers
Wi-Fi 6E
Wi-Fi 6E brings the ability to conduct AR/VR experiences, get creative with fewer dropped connections, and download large files at faster speeds without lag.
SuperSpeed USB 20Gbps
USB 3.2 Gen 2x2 lets you to enjoy the flexibility of connectivity, fast access and large data transfers.
DDR5
Faster Instant Reaction Speed.
Whether you're editing hundreds of audio samples, working with 4K video, or even multitasking, DDR5 will satisfy your insatiable need for speed.
PCIe 5.0 M.2 Storage Fast Speed. More Space.
Equipped with a full-speed PCIe 5.0 M.2 slot.
A total of three onboard M.2 slots are available for data-intensive tasks and creative work without additional configuration.
PCIe x4 M.2
Creates Exclusive Storage Performance.
All PCIe x4 M.2 slots offer up to Type 25110 and NVMe SSD RAID support for optimal enhancement.
Aesthetic Cooling Design.
GIGABYTE's advanced cooling solution also provides the perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing you from unexpected system crashes during the creative process.
- Ryzen 7 processors supported for enhanced, dependable system performance with maximum usability
- DDR5 SDRAM slot for convenient installation of memory
- Supported 0 RAID levels provide data reliability and fault tolerance
- Wireless support reduces the number of cables required to connect peripherals
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard
- 2 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
| Brand | |
|---|---|
| Brand | GIGABYTE Technology |
| CPU / Processor | |
|---|---|
| Processor Supported | Ryzen 7 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| GPU / Graphics | |
|---|---|
| Multi GPU Supported | CrossFire |
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 4400 MHz |
| Memory Form Factor | UDIMM |
| Number of Memory Slots | 4 |
| Maximum Memory Supported | 192 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 10 |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 2 Type- | 3 |
| Total Number of Onboard USB P | 7 |
| Number of Onboard USB 2.0 Por | 4 |
| Total Number of USB Ports | 9 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| 2.5Gigabit Ethernet | Yes |
| Audio Ports | |
|---|---|
| S/PDIF | Yes |
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| Size / Dimensions | |
|---|---|
| Form Factor | ATX |
| General Features | |
|---|---|
| Chipset Manufacturer | AMD |
| Chipset Model | B650 |
| Controller Type | Serial ATA/600 |
| Manufacturer | GIGABYTE Technology, Inc |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 3 |
| Total Number of PCI Express S | 3 |
| Total Number of Expansion Slots | 3 |
| PCI Express Standard | PCI Express 3.0 |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 3 |
| Number of SATA Interfaces | 4 |
