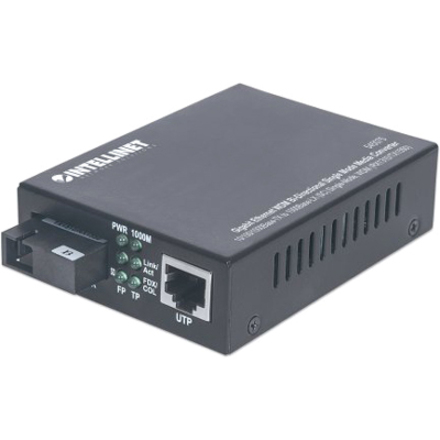

The Intellinet Network Solutions Gigabit Ethernet WDM (bi-directional wavelength division multiplexing) Media Converter utilizes a single strand of fiber to transmit network traffic on separate receive and transmit wavelengths (1310/1550 nm). This innovative technology allows you to effectively use the two strands for two independent connections or to double the capacity without digging in a second fiber cable. The converter is completely transparent to the network so the network performs exactly the way it did before — only now it can support both copper and fiber mediums.
Expands the Size of an Existing NetworkThis converter provides fiber connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. It also provides building-to-building connectivity without the cost and disruption associated with the installation of additional routers.
Enhances the Distance between Networking DevicesConnecting the converter to fiber segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fiber-based node or networking device.
Cabling FlexibilityNetwork managers can install fiber cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wallmount installation. Several converters can be simultaneously installed into a 19" rack-mountable chassis.
- With Optical Fiber cable, get the desired data transfer rate up to a required distance
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- With 1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
- The Rack-mountable provides convenient installation
| Brand | |
|---|---|
| Brand | IC INTRACOM |
| Power & Battery | |
|---|---|
| Power Source | Power Adapter |
| Power Consumption | 5 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-LX |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| General Features | |
|---|---|
| Maximum Distance Supported | 20 km |
| Manufacturer | IC INTRACOM |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Number of SC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Fiber Optic Cable Core/Claddi | 10/125 µm |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1550 nm |
