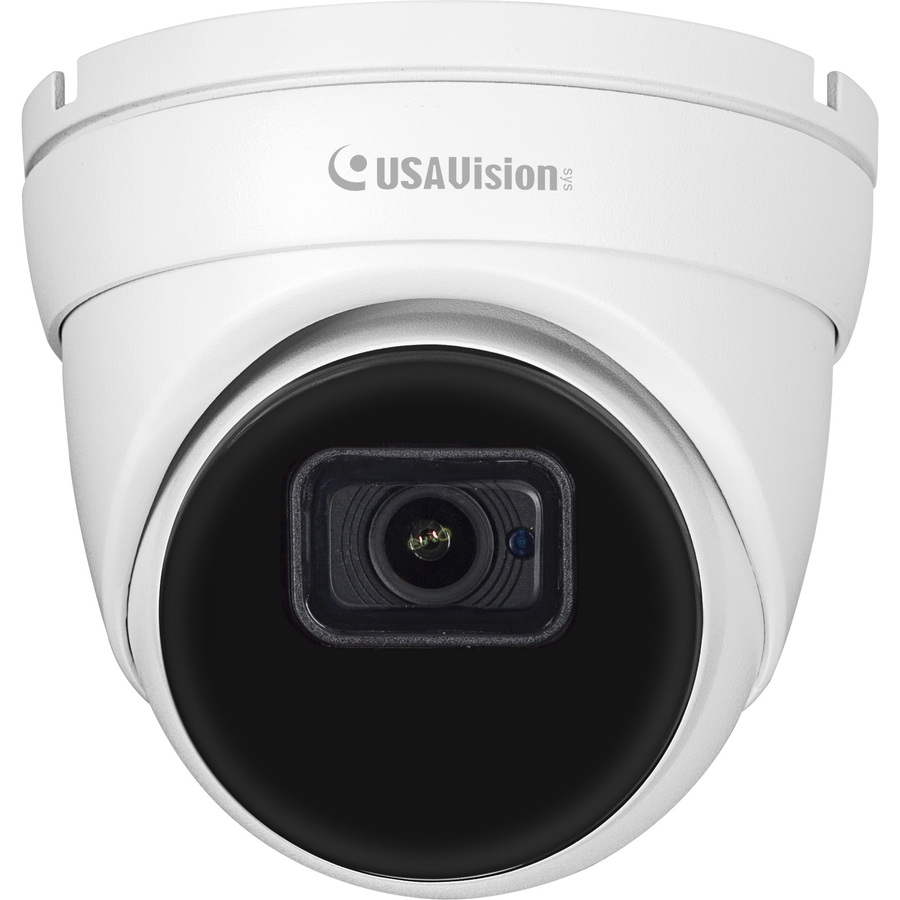

UA-R500F2 is an outdoor network camera equipped with an automatic IR-cut filter. The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality pictures at reduced network bandwidths. The IR LED for infrared illumination at night is up to 30 m (100 ft). The camera adheres to IP66 standards and can be powered through PoE.
- High quality imaging with progressive scan CMOS
- Triple streams from H.265, H.264
- IR distance up to 30 m (100 ft)
- Built-in microphone
- Built-in micro SD card slot, up to 256 GB
- Ingress protection (IP66)
- DC 12V / PoE (IEEE 802.3af)
- P2P function for GV-Eye app
- ONVIF conforman
| Brand | |
|---|---|
| Brand | GeoVision |
| Storage | |
|---|---|
| Storage Type | Memory Card |
| Screen / Display | |
|---|---|
| Color Supported | Color |
| Power & Battery | |
|---|---|
| Input Voltage | 12 V DC |
| Power Source Type | PoE |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Field of View | Vertical: 70.57° , Horizontal: 97° , Diagonal: 128.66° |
| HD Recording | Yes |
| Night Vision | Yes |
| Lens Included | Yes |
| Night Vision Type | Infrared |
| Effective Camera Resolution | 5 Megapixel |
| Maximum Video Resolution | 2592 x 1944 |
| Image Sensor Type | CMOS |
| Maximum Focal Length | 2.80 mm |
| Maximum Aperture | f/1.6 |
| Shortest Shutter Speed | 1/20000 Second |
| Longest Shutter Speed | 1/5 Second |
| Lens Type | Fixed |
| Night Vision Distance | 98.43 ft |
| Number of IR LEDs | 2 |
| Maximum Frame Rate | 30 fps |
| Lens Mount Type | M12-mount |
| Size / Dimensions | |
|---|---|
| Form Factor | Dome |
| Diameter | 3.9" |
| General Features | |
|---|---|
| Remote Management | Yes |
| Indoor/Outdoor | Outdoor |
| Video Formats | H.264 |
| Manufacturer | GeoVision, Inc |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Humidity | 95% |
| Environmentally Friendly | Yes |
| Ingress Protection Rating | IP66 |
