Modern workstations and AV systems depend on clear communication between source and display-but when that link breaks down, productivity does too. When displays are powered off, switched away, or routed through complex systems, that EDID handshake can be lost, leaving you with blank screens, mismatched resolutions, and unnecessary frustration. When a laptop or docking station loses EDID communication, meeting momentum evaporates.

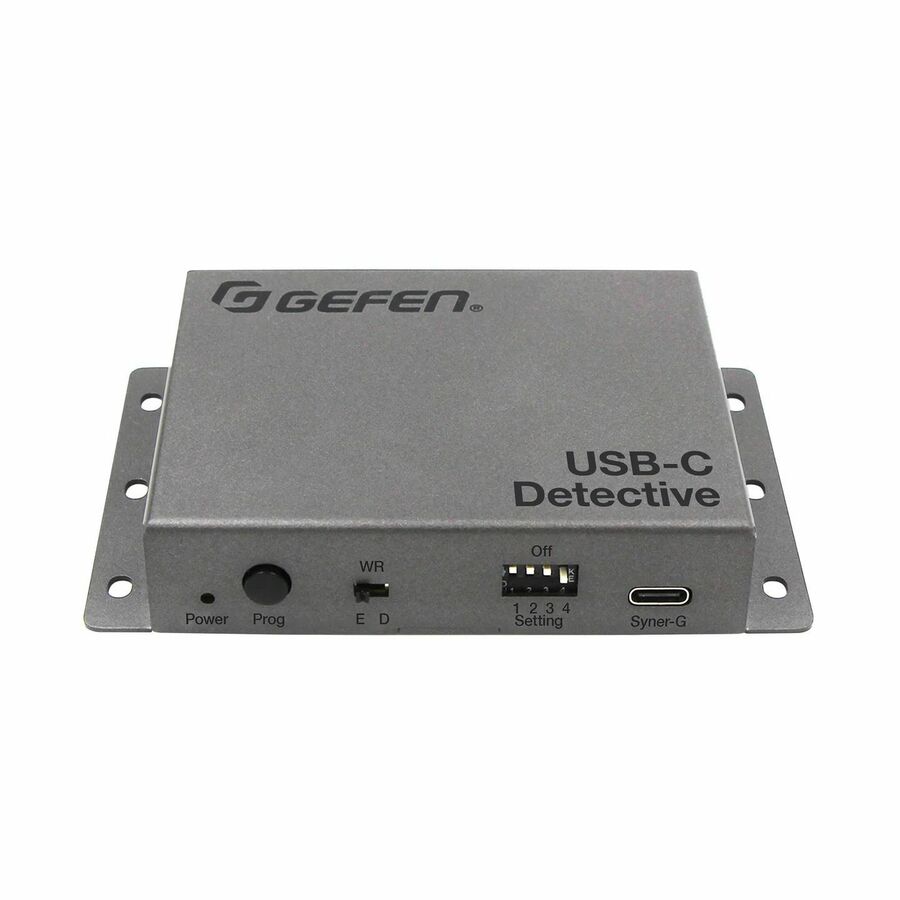

The Gefen GF-EDD-UC captures and stores the display's EDID so that even if the monitor is unplugged or the cable swapped, the source never misses a beat. Maintains stable USB-C Alt Mode video up to 8K@30 and 4K@60 Hz withHDR10, Dolby Vision, and HLG formats withHDCP 2.3 content protection. Perfect for conference-room hubs, classrooms, and hybrid workspaces.
Key Features
Supports High Resolutions and HDR:Maintains stable USB-C Alt Mode video up to 8K@30Hz and 4K@60Hz with 32.4Gbps (HBR3) bandwidth, including HDR10, Dolby Vision, and HLG formats for stunning visual quality.
Universal USB-C Compatibility:Works with any USB-C device using DisplayPort Alt Mode-ideal for laptops, tablets, docking stations, and other modern workstations in conference rooms and classrooms.
Advanced EDID Management:Features five factory-loaded EDID profiles and three user-programmable banks for maximum flexibility in any AV setup, selectable via DIP switches.
Signal Stability and Reliability:Employs auxiliary channel re-clocking and persistent HPD (Hot Plug Detection) to ensure continuous signal negotiation and prevent connection interruptions.
Field-Upgradable and Programmable:USB-C service port allows for easy firmware updates and custom EDID management in the field, with a program button for quick EDID capture from connected displays.
Secure Configuration:Write-enable DIP switch prevents accidental overwriting of critical EDID profiles, protecting your custom configurations during deployment.
Robust Professional Design:Durable metal enclosure with surface-mount capability, low power consumption (<3W), and 50,000-hour MTBF ensures reliable performance in demanding commercial installations.
How It Works
The Gefen GF-EDD-UC USB-C EDID Detective is a plug-and-play solution that ensures reliable communication between your USB-C source and display. Simply connect it inline between your source device (laptop, docking station, or tablet) and your display cable. The device learns and stores the display's EDID information, ensuring the source always receives correct parameters-even if the monitor is powered off, disconnected, or switched away.
The GF-EDD-UC prevents blank screens, resolution resets, and desktop rearrangement by continuously presenting stored EDID data. Supports full USB 2.0 data pass-through and HDCP 2.3 content protection.
For custom setups, use the program button to capture EDID from a connected display or the USB-C port to load custom profiles and firmware updates. Select from five factory profiles or three programmable banks via DIP switches.
- The edid emulator/manager is a great choice for capturing and saving your favorite photos, audio and videos recorded by the capture card
- Converts an analog video signal to digital form
- Plug and Play your edid emulator/manager with the PC and go
- The Surface-mountable form factor allocates you simple and easy installation for your edid emulator/manager
| Brand | |
|---|---|
| Brand | Nice S.p.A. |
| Screen / Display | |
|---|---|
| Maximum Resolution | 7680 x 4320 |
| Screen Mode Supported | 4K |
| Power & Battery | |
|---|---|
| Power Source | DC |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Standard | USB Type-C |
| Size / Dimensions | |
|---|---|
| Form Factor | Surface-mountable |
| General Features | |
|---|---|
| Functions | Video Capturing |
| Supported Video Modes | 2160p |
| Manufacturer | Nice S.p.A. |
