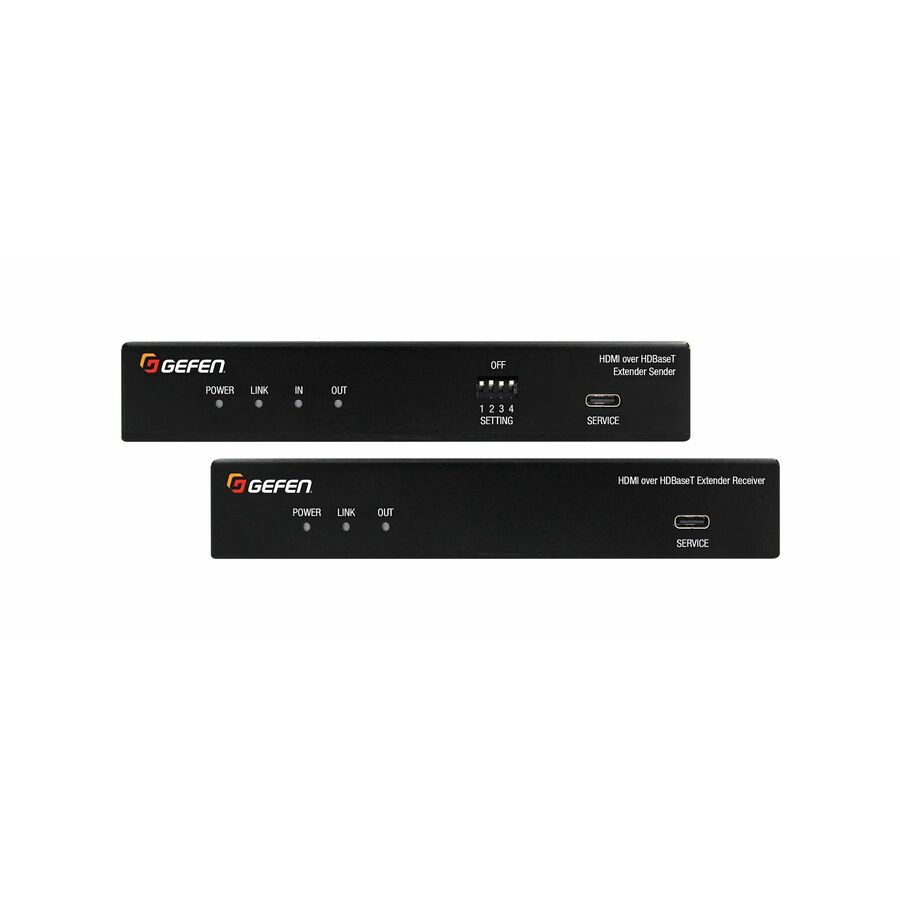

The next generation of display technology demands a next-generation extension backbone. The Gefen GF-EXT-HD-HBT is an advanced HDBaseT and HDMI 2.1 compatible extender designed to deliver visually lossless compression up to 90 meters at 8K60Hz 4:2:0/4K120Hz; 4K60Hz 4:4:4 up to 120 meters; and 1080p@60 up to 150 meters over a single CAT cable. Engineered to seamlessly handle the latest HDR standards, including HDR10+, Dolby Vision, and HLG, and fully compliant with HDCP 2.3, this extender ensures secure, flawless visual performance. Built for AV professionals who require extreme distance without compromising signal fidelity, the GF-EXT-HD-HBT provides the bandwidth, control, and stability that modern 8K environments demand.
- Next-Level Visual Fidelity:Purpose-built for 8K workflows in medical imaging, simulation, and high-end home cinema environments where perfectly preserved visual data is critical.
- High-Bandwidth Endurance:Capable of handling up to 40 Gbps of video throughput using visually lossless compression, guaranteeing the exact signal sent from the source reaches the display intact.
- Intelligent Power and Thermal Control:Constructed with efficient internal components and a precision-engineered enclosure to prevent signal degradation resulting from heat buildup.
- Installation Agility:Features a local HDMI loop-out on the transmitter base, allowing for instant, real-time signal verification during complex commissioning or live events.
- Eco-Minded Construction:Environmentally conscious design, packaged with recyclable materials, and engineered for exceptionally low idle power draw without sacrificing operational performance.
| Brand | |
|---|---|
| Brand | Nice S.p.A. |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 2 |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 2 |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Size / Dimensions | |
|---|---|
| Form Factor | Surface-mountable |
| Appearance | |
|---|---|
| Color | Black |
| General Features | |
|---|---|
| Maximum Operating Distance | 492.13 ft |
| Supported Video Modes | 1080p |
| Manufacturer | Nice S.p.A. |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 2 |
| Maximum Video Resolution (Content) | 7680 x 4320 |
| Video Ports | |
|---|---|
| HDBase-T | Yes |
| Misc Ports | |
|---|---|
| Remote (IR) Input | 2 |
| Remote (IR) Output | 2 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6a |
| Brand | Nice S.p.A. |
| UPC/GTIN | 888814007732 |
| MPN | GF-EXT-HD-HBT |
| Unit Count | 1 Units |
| Warranty | 2 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
