Extend and Distribute Analog and Digital Audio, RS-232, and IR over a Local Area Network

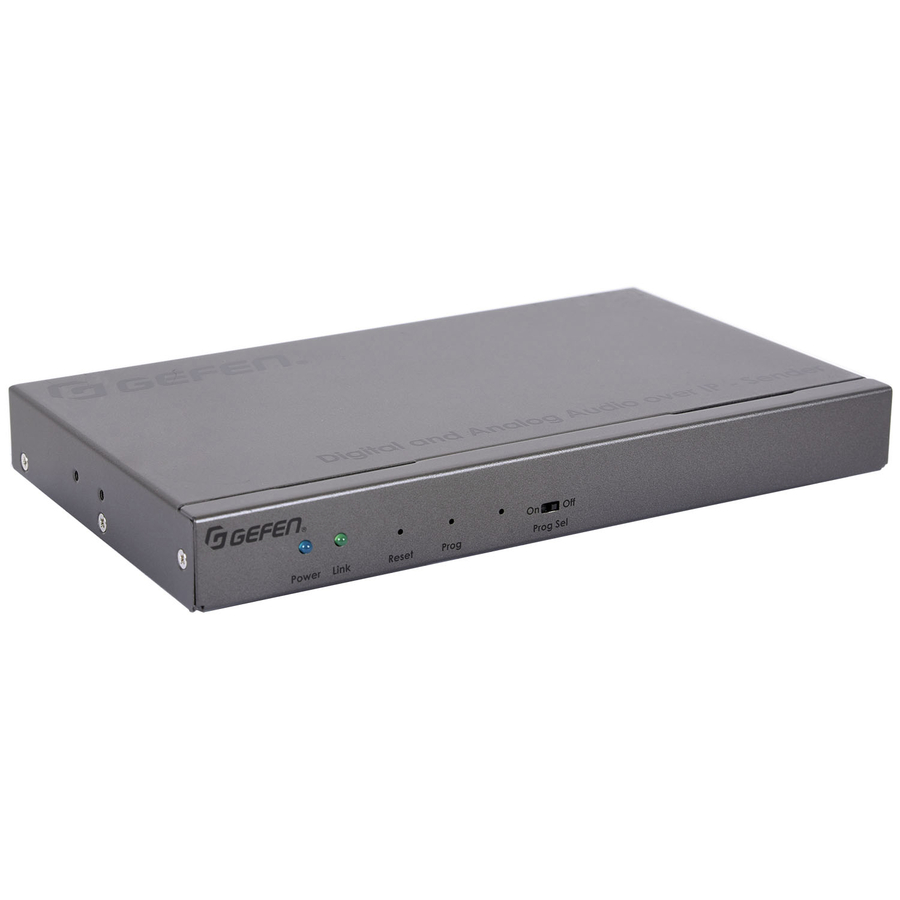

Gefen's AV over IP solutions continue our tradition of providing high performance, scalable, expandable, and secure AV routing and distribution over a standard Gigabit Local Area Network. The Digital and Analog Audio over IP Sender (EXT-ADA-LAN-TX) and Receiver (EXT-ADA-LAN-RX) are new additions to Gefen's family of AV over IP products, offering a much-needed audio-only option for background music, public announcements, and other applications where stand-alone audio needs to be distributed through the AV system. Audio input and output options include L/R Analog, Coaxial Digital, and Optical Digital. When using the digital inputs and outputs, 2-channel PCM and up to 5.1 channels of Bitstream can be distributed through the system. In addition to audio, RS-232 and 2-way IR can also be independently routed and distributed for source and amplifier control. The entire Gen 2.0 product line, including the audio models, feature backward-compatibility with our first-generation products.
- 802.3af standard Power-over-Ethernet allows the new Sender and Receiver units to be powered through a standard PoE-enabled IP network switch, without the need for external power supplies
- Supports 39,900 Senders and a combination of over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch
- Built-in web interface, Telnet, and UDP
- Compatible with the Gefen Keyboard Switching Controller software, available for download at www.gefen.com
- Enhanced API for added functionality with third-party control systems
- MFU (Mass-Firmware-Update), quick and automated configuration, and enhanced control capabilities and system security when used with the Gefen EXT-CU-LAN Matrix Controller
- Analog L/R, Coaxial Digital, and Optical Digital Inputs and Outputs
- Independent audio, RS-232, and IR routing
- Backward-compatible with first generation Gefen AV over IP products
- Extends digital and analog audio, RSZ-232, and IR, using a Gigabit Local Area Network
| Brand | |
|---|---|
| Brand | Gefen |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Manufacturer | Nice S.p.A. |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
