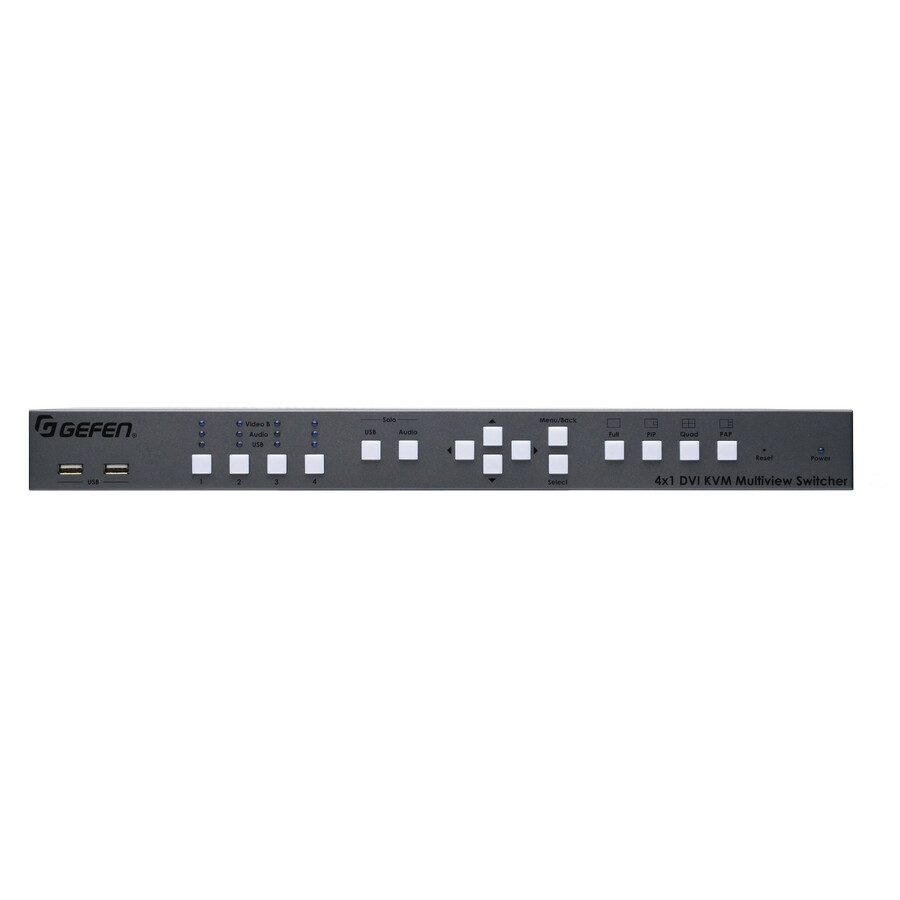

Interface four computers to one dual-screen workstation
The EXT-DVIK-MV-41 is the perfect solution for controlling four computers from a dual monitor workstation. The operator can observe up to 4 pictures on one screen, while a second monitor can be switched to display the picture that needs closer attention. This product is HDCP compliant, supporting input and output resolutions up to 1920 x 1200 (WUXGA) and 1080p Full HD. The two front panel USB ports and/or Bi-Directional audio (mic and headphones/speaker) can be independently routed from any of the four computers to the workstation. Four default factory presets provide most commonly used arrangements of windows on a display, including single window output, Picture-In-Picture, Quad view, and Picture-And-Picture. The 4x1 DVI KVM Multiview Switcher is controllable via front panel, keyboard/mouse, and RS-232. An intuitive on-screen Graphical User Interface simplifies system configuration and operation. Up to 8 DVI KVM Switchers can be daisy-chained together to create an elaborate 32 computer workstation. This product is field firmware upgradable with the Gefen Syner-G™ software suite.
The EXT-DVIK-MV-41 is the perfect solution for controlling four computers from a dual monitor workstation. The operator can observe up to 4 pictures on one screen, while a second monitor can be switched to display the picture that needs closer attention. This product is HDCP compliant, supporting input and output resolutions up to 1920 x 1200 (WUXGA) and 1080p Full HD. The two front panel USB ports and/or Bi-Directional audio (mic and headphones/speaker) can be independently routed from any of the four computers to the workstation. Four default factory presets provide most commonly used arrangements of windows on a display, including single window output, Picture-In-Picture, Quad view, and Picture-And-Picture. The 4x1 DVI KVM Multiview Switcher is controllable via front panel, keyboard/mouse, and RS-232. An intuitive on-screen Graphical User Interface simplifies system configuration and operation. Up to 8 DVI KVM Switchers can be daisy-chained together to create an elaborate 32 computer workstation. This product is field firmware upgradable with the Gefen Syner-G™ software suite.
- Quickly switches between sources without physical access
- Switch between 4 computers and 1 local users
- Up to 1920 x 1200 video resolution
- Hot-pluggable USB interface for a quick connection
- The Rack-mountable form factor allocates you simple and easy installation for your kvm switchbox
| Brand | |
|---|---|
| Brand | Gefen |
| GPU / Graphics | |
|---|---|
| Graphic Mode | WUXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 12 V DC |
| Power Consumption | 40 W |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 8 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1200 |
| Audio | |
|---|---|
| Microphone | Yes |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Manufacturer | Nice S.p.A. |
| Number of Computers Supported | 4 |
| Video Ports | |
|---|---|
| DVI | Yes |
| Number of DVI Ports | 6 |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
