With 2-way IR, and POL

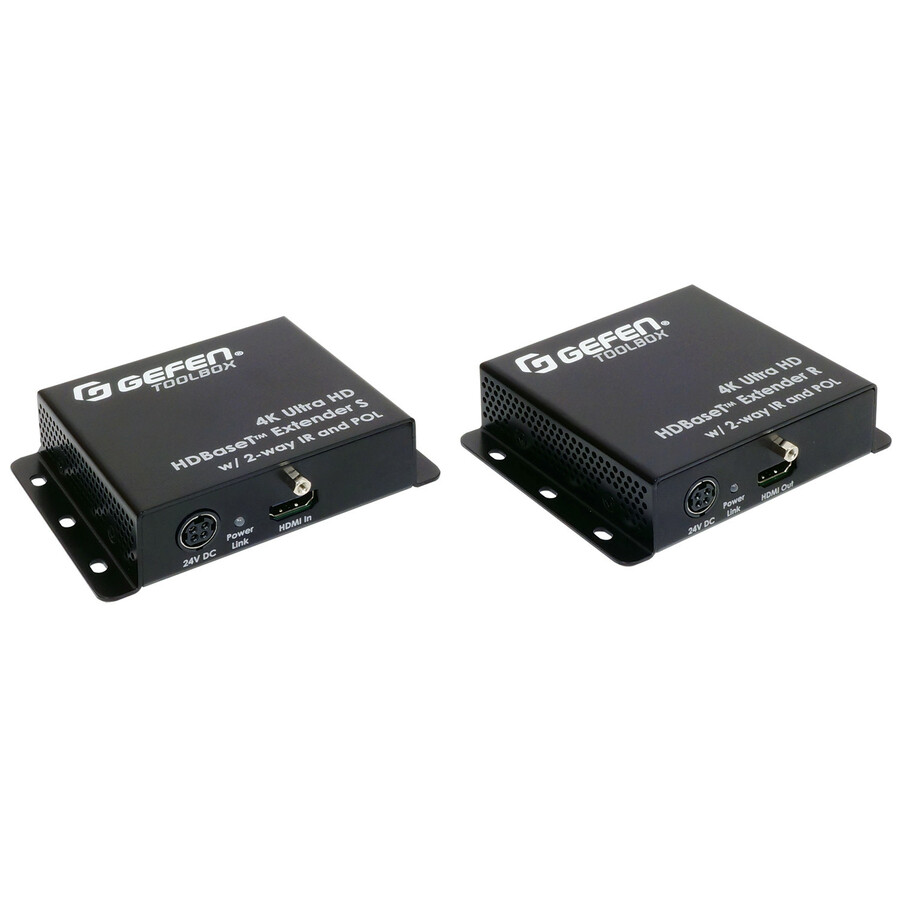

The GTB-UHD-HBTL 4K Ultra HD Extender uses Gefen's implementation of the HDBaseT™ technology to extend HDMI up to 230 feet/70 meters at 1080p and up to 130 feet/40 meters at 4K, using one CAT-5e or better cable. Resolutions up to 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0) with 7.1 channels of HBR (High Bit Rate) lossless digital audio are supported. This product provides 2-way IR extension between the Sender and the Receiver units, facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit. Gefen's Bi-Directional POL (Power Over Line) technology powers the Sender or the Receiver unit using the same cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display. Small, low profile enclosures can be securely surface-mounted and conveniently hidden away from sight.
- CEC pass-through
- 3DTV pass-through
- 12-bit Deep Color
- LPCM 7.1, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ pass-through
- HDMI 2.0
- HDCP 2.2 and 1.4
- 1080p Full HD (60 Hz), up to 230 feet/70 meters (up to 12-bit Deep Color)
- 4K Cinema (DCI) (4096 x 2160 @ 24 or 30 Hz 4:4:4), up to 130 feet/40 meters (8-bit color)
- 4K Ultra HD (3840 x 2160 @ 30 Hz, 4:4:4), up to 130 feet/40 meters (8-bit color)
- 4K Ultra HD (3840 x 2160 @ 60 Hz, 4:2:0), up to 130 feet/40 meters (8-bit color)
| Brand | |
|---|---|
| Brand | Gefen |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 14.11 oz |
| Form Factor | Surface-mountable |
| Transmitter Depth | 3.20" |
| Transmitter Height | 1" |
| Transmitter Width | 4.30" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 131.23 ft |
| Manufacturer | Nice S.p.A. |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6a |
