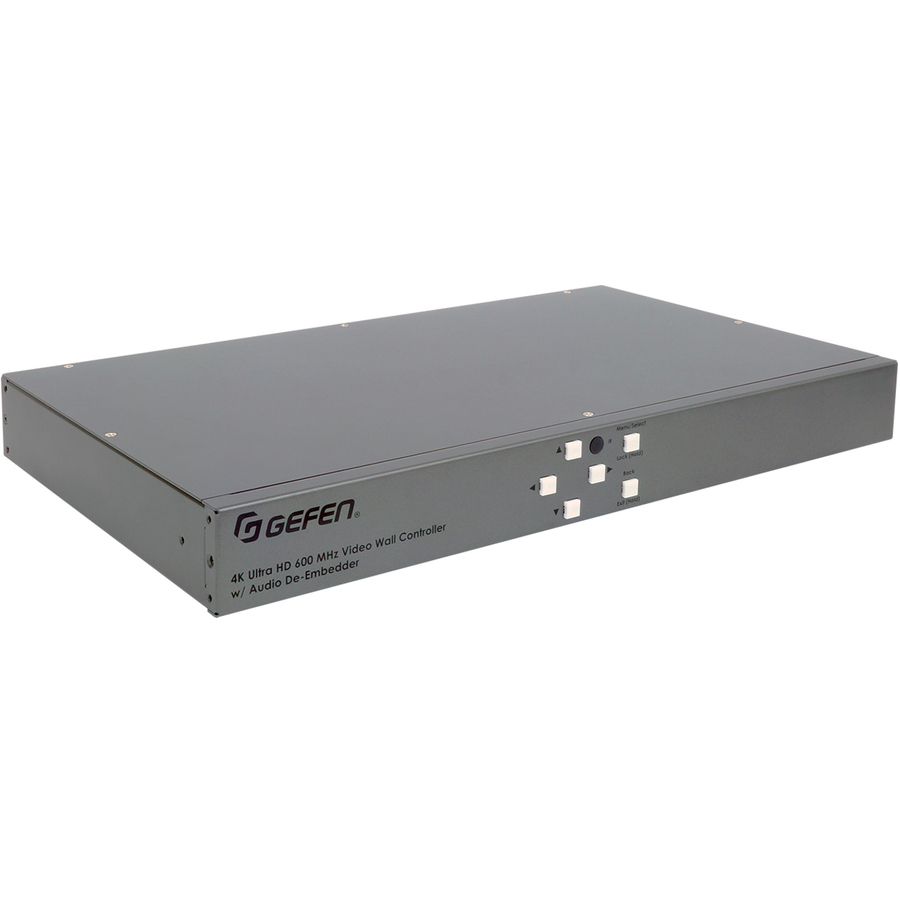

The Gefen 4K Ultra HD 600 MHz Video Wall Controller is the perfect solution for entertainment and digital signage applications in retail outlets, clubs, trade shows, control centers, building lobbies, and other venues where a large, high quality 4K picture is required. It accepts a single 4K 60 Hz 4:4:4 (18 Gbps, 600 MHz TMDS clock) HDCP 2.2 or 1.4 compliant HDMI source, and using its advanced video processing technology divides the picture pixel by pixel and without any extrapolation or approximation, over four equally-sized 1080p Full HD displays. It can also create multiple display configurations using predefined row or column layouts, up to a maximum of four displays installed in vertical or horizontal orientation, or allow complete customization of how the input is cropped and outputted to each screen.
The picture on each display can also be rotated in 90 degree increments, individually or simultaneously. The 4K Ultra HD Video Wall Controller's versatile bezel compensation ability can accommodate any display bezel width. Analog audio can be de-embedded from the HDMI source and be routed to an outboard sound-reinforcement system, adding presence and impact to AV presentations. The EXT-UHD600A-VWC-14 is controllable via front panel, its handheld IR remote control, RS-(more...)
- 1U tall rack-mountable enclosure, rack ears included
- Locking power supply connector
- Field-updatable firmware using the Gefen Syner-G software
- Controllable via front panel buttons, IR, IP (web interface, Telnet, and UDP), and RS-232
- IR sensor on front panel and IR Extender input on back panel
- Handheld IR remote control
- Easy to use on-screen Graphical User Interface (GUI) and web interface
- Analog L/R Audio Breakout for use with outboard amplification systems
- Versatile bezel compensation ability can accommodate any display bezel width.
- Pictures on each display can also be rotated in 90 degree increments, individually or simultaneously.
- Complete customization of how the input is cropped and outputted to each screen.
- Creates pictures in a row or a column, up to a maximum of four displays installed in vertical or horizontal orientation.
- Accepts a 4K 600 MHz (60 Hz, 4:4:4) input and creates a pixel-by-pixel 4K Ultra HD picture using four Hi-Def 1080p Full HD displays
| Brand | |
|---|---|
| Brand | Gefen |
| Screen / Display | |
|---|---|
| Display Resolution | 1920 x 1200 |
| Power & Battery | |
|---|---|
| Input Voltage | 12 V DC |
| Networking & Connectivity | |
|---|---|
| Ethernet | Yes |
| USB Ports | |
|---|---|
| USB | Yes |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 4 |
| Number of HDMI Inputs | 1 |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack Mount |
| General Features | |
|---|---|
| Manufacturer | Nice S.p.A. |
| Misc Ports | |
|---|---|
| Serial | Yes |
