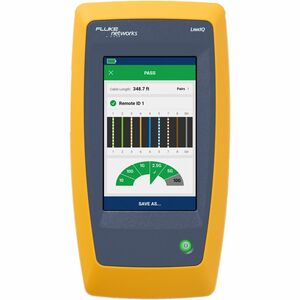

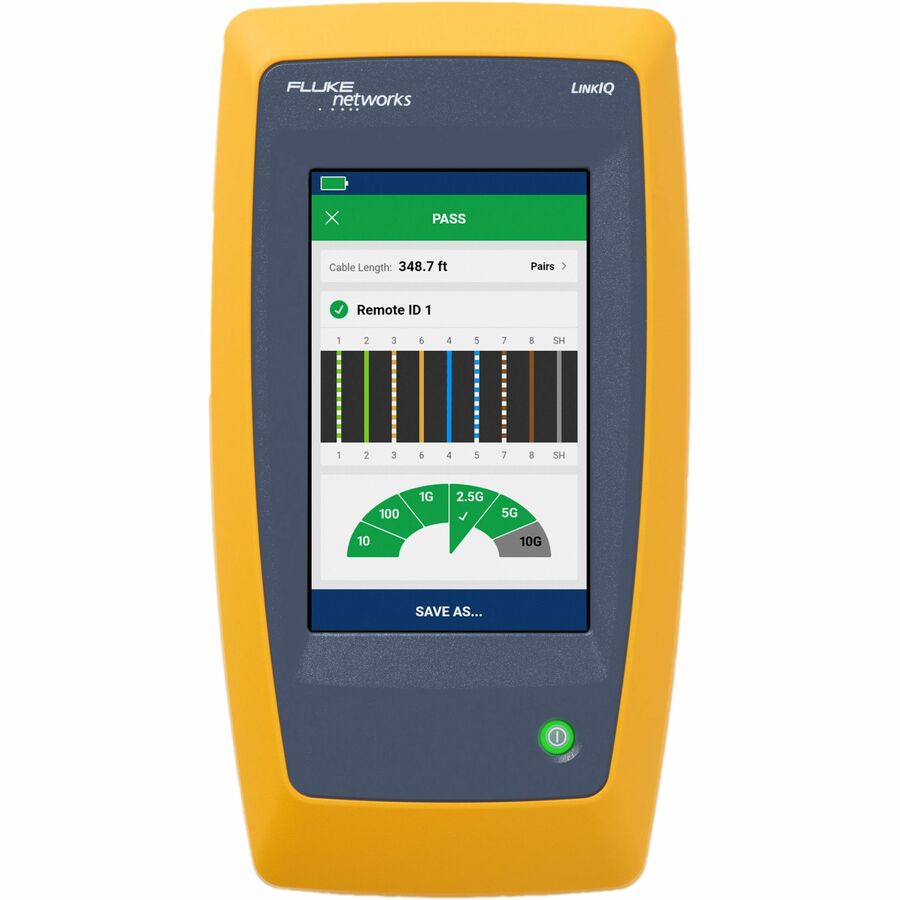

The LinkIQ™ Network+Cable Tester is designed to provide trusted cable testing along with network testing professionals need to do their jobs. LinkIQ™ validates cable performance (up to 10 Gig) using frequency-based measurements and provides distance to fault information along with a wire map of the cable under test. The LinkIQ™ also performs nearest switch diagnostics to identify key network issues and validate switch configuration eliminating the need of using another device. Additional features include, Analog and Digital Toning, Port Blink, 802.1x authentication, Remote Office Locators, and the ability to manage results via LinkWare™ PC.
- Measure network capacity up to 10 Gig via frequency based measurements
- Troubleshoot active networks by providing connected switch information (Switch Name, Port Number, and VLAN info)
- Install and troubleshoot PoE devices via Switch Negotiation and PoE Load test
- Graphical wiremap and length test to identify common faults that occur with cabling installation
- Document work through LinkWare™ PC reporting
- Support all Industrial Ethernet Protocols (EtherNet/IP, PROFINET, EtherCAT, and others)
- Industrial Ethernet Kit supports Industrial Connectors (M8D, M12D, M12X)
| Brand | |
|---|---|
| Brand | Fluke Networks |
| Power & Battery | |
|---|---|
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Size Supported | 3.6V |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| USB Ports | |
|---|---|
| USB | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| General Features | |
|---|---|
| Device Function | Twisted Pair Cable Testing |
| Manufacturer | Fluke Networks |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
Fluke Networks LinkIQ Cable + Network Tester - Network Testing, Cable Testing, Cable Fault Testing, Analog Camera Testing, Frequency Measurement, Blink Port Light, Visual Fault Locator, Wiremap, PoE Testing, Twisted Pair Cable Testing - USB - Network (RJ-45) - Serial Port - Twisted Pair - Wireless LAN - 10 Gigabit Ethernet - 10GBase-T, 1000Base-T, 100Base-TX, 10Base-T - 3.6V - Lithium Ion (Li-Ion)
