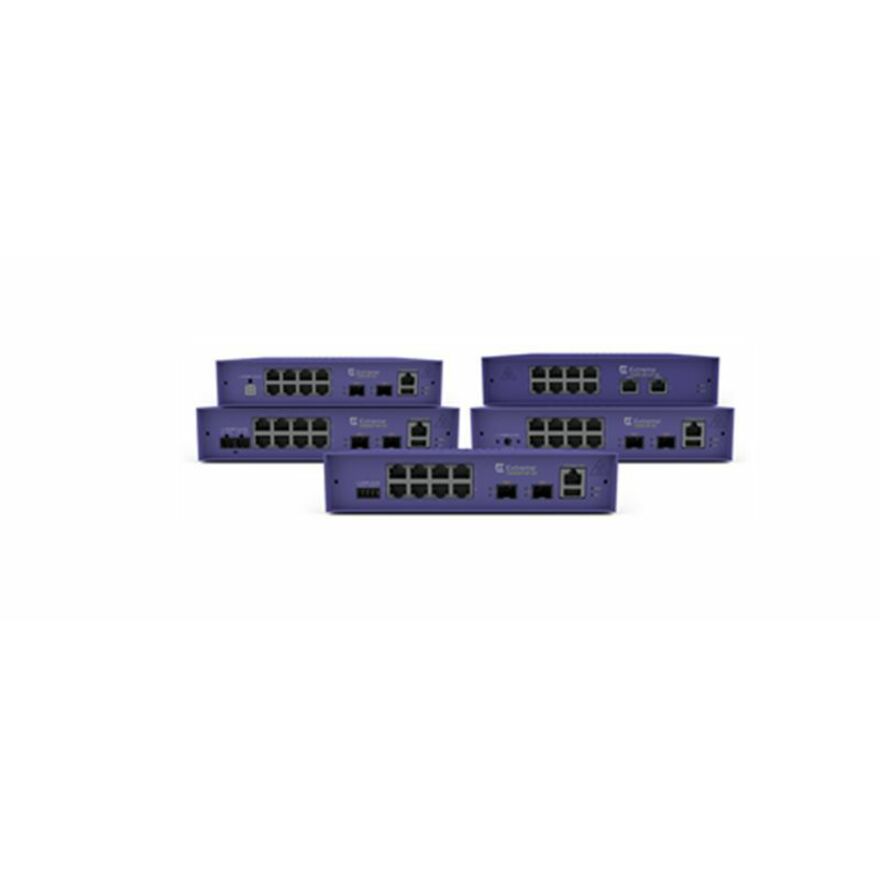

V300 Series
Cost-effective edge switches powered by ExtremeXOS
Part of Extreme's Extended Edge Switching solution
Seamless Unified Services
As an extension of the central ExtremeXOS aggregation switch, V300 edge devices/ports deliver the same network services and software features across the network. This simplifies service delivery and enables advanced features to be seamlessly extended to the network edge.
Simplified, Single Point of Management
V300 devices and ports are centrally configured and managed from the ExtremeXOS aggregation switch. This simplifies network operations and reduces overhead.
Plug and Play Installation
Once connected, the V300 automatically finds the central ExtremeXOS aggregation switch, downloads its configuration, and is ready to go. No need for local console set-up.
More features
- 24 and 48-port Gigabit Ethernet models
- All models include 2 or 4 x 10 Gigabit SFP+ uplinks
- Available in IEEE 802.3at/af PoE+ versions
- Cascading of up to 4 x V300 units off a single aggregation switch port
- Redundant Power Supply (RPS) option
- Effectively increases available bandwidth on your network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Rack-mountable form factor for your convenience and simplicity of usage
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
| Brand | |
|---|---|
| Brand | Extreme Networks |
| Power & Battery | |
|---|---|
| Redundant Power Supply Suppor | Yes |
| Power Source | Power Supply |
| Power Consumption | 214.60 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 8 |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 1U |
| Appearance | |
|---|---|
| Modular | Yes |
| General Features | |
|---|---|
| Manufacturer | Extreme Networks, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 2 x 10 Gigabit Ethernet Uplink |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
