Universal Edge and Aggregation Switch Platform
The 5720 Series is a family of high-performance, feature-rich edge and aggregation switches designed for the next-generation digital enterprise. Available in 24 and 48-port gigabit and multi-gigabit models, the 5720 is a universal hardware platform, providing end-to-end secure network segmentation and advanced policy capabilities. Compatible with your choice of Extreme's flagship switch OS, the 5720 is a uniquely flexible, stackable platform that can be deployed across a range of edge, aggregation, and wiring-closet environments.
All models offer 90W PoE in support of NextGen powered Ethernet devices, such as digital signage, pan-tilt-zoom cameras, smart lighting, or point-of-sale terminals.
Cloud-Based Network Management
The 5720 can be managed by ExtremeCloud IQ and ExtremeCloud IQ Site Engine for centralized switch management, giving you a consolidated view of users, devices, and applications across wired and wireless networks for efficient inventory and network topology management. ExtremeCloud IQ enables zero touch provisioning, allowing you to quickly bring new 5720 switches online as well as select the OS persona.
Alternatively, 5720 on-box management can be done manually via a webbased GUI or generic command-line interface (CLI).
Power over Ethernet (PoE)
All 5720 Series models support 30W, 60W, and 90W PoE that conforms with IEEE 802.3bt. This enables the 5720 to address the needs of powered edge devices, while eliminating the need for additional electrical cabling and circuits. In addition, 5720 PoE models support perpetual and fast PoE for even more efficient and reliable powered edge device operation.
High-Performance Stacking
The 5720 Series supports high-speed stacking when running Switch Engine via its two built-in QSFP28 stacking ports. Up to eight switches can be stacked using qualified SFP+/SFP-DD direct attach cables and optical transceivers. Stacking is not supported when running Fabric Engine.
Audio Video Bridging
The 5720 Series supports IEEE 802.1 Audio Video Bridging (AVB) when running Switch Engine OS. This allows 5720 models to deliver reliable, real-time audio/ video transmission over Ethernet, meeting the quality of service required for today's high-definition, time-sensitive multimedia streams
Universal Hardware Platform
The 5720 comes with a dual-persona capability, allowing you to choose your OS. Either the Switch Engine (EXOS)1 or Fabric Engine (VOSS)2 OS can be selected at switch start-up or changed at a later stage. When selected, the switch assumes the features and capabilities of that OS.
5720 OS selection can also be automated with ExtremeCloud IQ so that the desired OS can be automatically loaded at switch start-up, facilitating remote OS enablement.
Switch Engine is the new name for ExtremeXOS (EXOS) on all universal switch platforms, starting with Version 31.6.
Fabric Engine is the new name for the VSP Operating System Software (VOSS) on all universal switch platforms, starting with Version 8.6.
Ethernet Fabric Services
The 5720 supports a variety of Ethernet Fabric services, including Extreme's Fabric Connect when running Fabric Engine and Extreme's IP Fabric when running Switch Engine. It also supports Fabric Attach for automated connection to either Layer 2 or Layer 3 Fabric services.
Extreme's Fabric Connect and IP Fabric enable the creation of virtualized networks that automate network operations, simplify network provisioning, and enhance security, all while reducing the strain on network and IT personnel.
- Effectively increases available bandwidth on your network
- IEC 320 EN 60320 C15 plug/connector type for a secure, hassle-free operation
- Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
- Provides efficient communication with other ethernet switch in the stack to ensure maximum productivity
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- Can work as layer 3 routing for scalable network design
- Rack mounting enables you to organize wires & secure cables for professional installation
- Managed switch provides a reliable foundation for your network
- 100 Gigabit Ethernet provides high bandwidth performance, ease of use and reliability for your network backbone
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
| Brand | |
|---|---|
| Brand | Extreme Networks |
| Power & Battery | |
|---|---|
| Redundant Power Supply Suppor | Yes |
| Plug/Connector Type | IEC 60320 C16 |
| PoE Budget | 90 W |
| Input Voltage | 230 V AC |
| Power Source | PoE++ |
| Power Consumption | 2549 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100GBase-X |
| Layer Supported | 3 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 24 |
| PoE (RJ-45) Port | Yes |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Manageable | Yes |
| Maximum Data Transfer Rate | 12.50 GB/s |
| Frequency | 60 Hz |
| Manufacturer | Extreme Networks, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slo | 2 |
| Expansion Slot Type | QSFP28 |
| Misc Ports | |
|---|---|
| Stack Port | Yes |
| Port/Expansion Slot Details | 1 x USB Micro-B Console Port |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| Energy Star | No |
| Miscellaneous | |
|---|---|

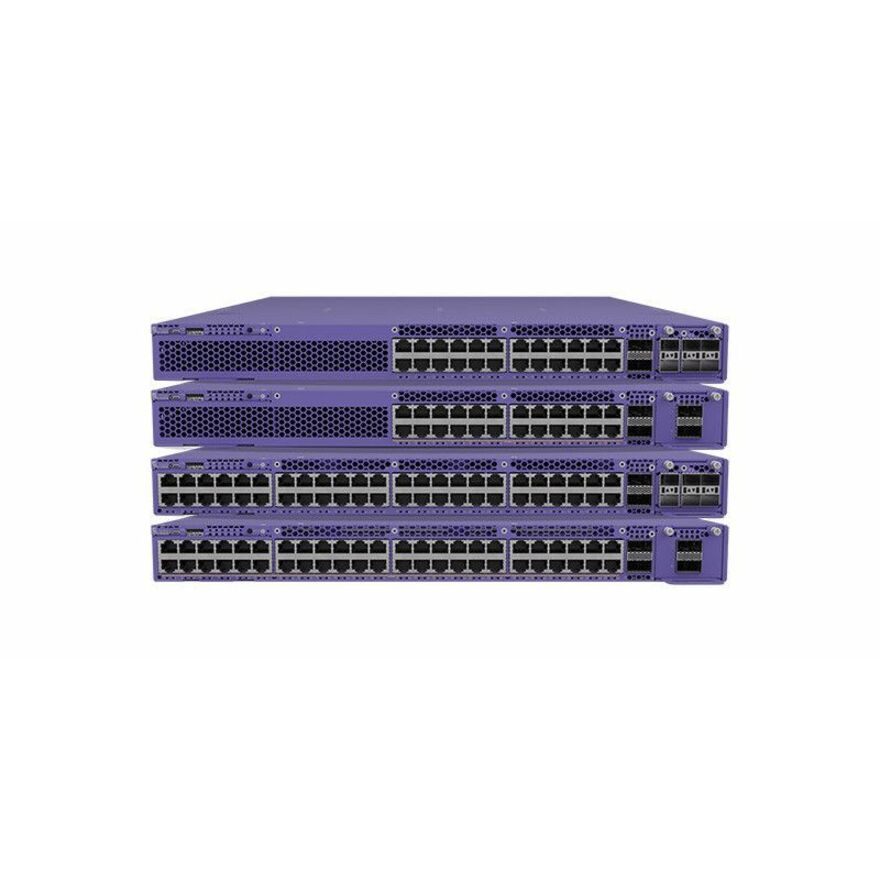

| Product Name | 5720-24MXW Ethernet Switch |
