Overview

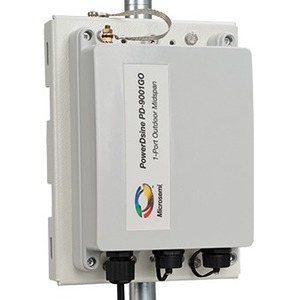

Microsemi's PD-9001GO Power over Ethernet (PoE) single-port midspan offers a cost effective, fully IEEE 802.3af/802.3at compliant solution for outdoor installations, guaranteeing 30 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered. The PD-9001GO also offers surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges.
| Brand | |
|---|---|
| Brand | Extreme Networks |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Maximum Output Voltage | 55 V DC |
| Minimum Output Current | 1 A |
| Maximum Output Power | 30 W |
| Size / Dimensions | |
|---|---|
| Form Factor | External |
| Mount Type | Pole/Wall-mountable |
| General Features | |
|---|---|
| Protection Type | Surge Protection |
| Maximum Frequency | 60 Hz |
| Minimum Frequency | 50 Hz |
| Manufacturer | Extreme Networks, Inc |
| Misc Ports | |
|---|---|
| Output Ports | 1 x 10/100/1000Base-T |
| Input Ports | 1 x 10/100/1000Base-T |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
Enterasys Outdoor, single port, 10/100/1000 E/N, 802.3at PoE injector (30W) - 120 V AC, 230 V AC Input - 55 V DC Output - 1 x 10/100/1000Base-T Input Port(s) - 1 x 10/100/1000Base-T Output Port(s) - 30 W - Pole/Wall-mountable
